2CY Stainless Steel High Pressure Gear Pump

Stainless Steel High Pressure Gear Pump

item no.:
2cy-3/2.5
lead time:
Customer Date
product orgin:
CHINA BOTOU SAIKEN PUMPS CO.LTD
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

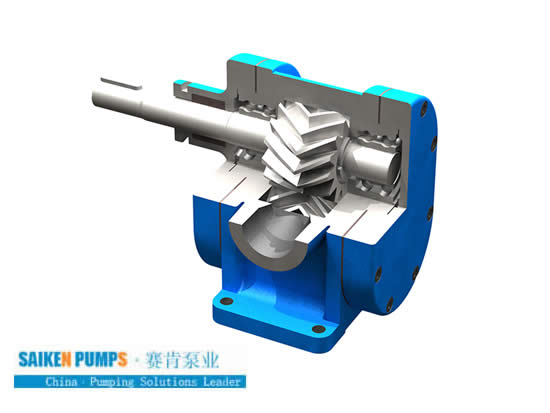

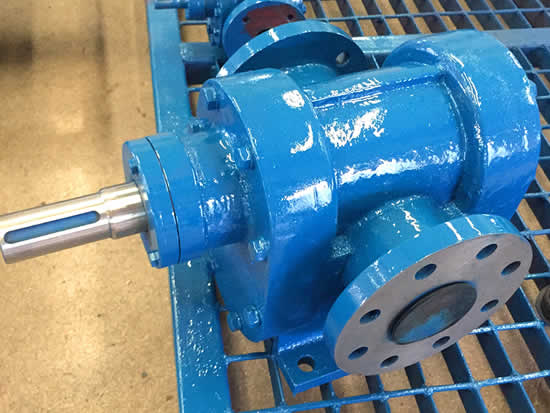

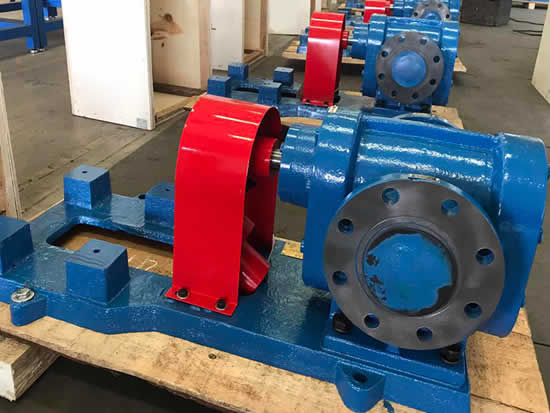

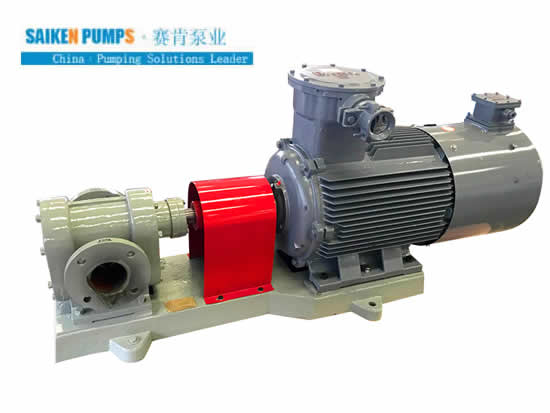

Stainless Steel High Pressure Gear Pump Overview:

Manufacturer:China Boutou saiken pumps

Type: 2CY

Flow:1.1-12 m³

Discharge pressure: 2.5 Mpa,

Liquid viscosity range:5~1500cst;

Seal: packing seal/mechanical seal.

Material:Cast Iron,SS304,SS316,SS316L

Brief introduction

2CY Type Stainless Steel High Pressure Gear Pump applies to delivering lubricating oil or other liquid properties similar to lubricating oil without solid particles and fibers at temperature below 200 ℃ and with the viscosity of 5 x10-6 ~ 1.5 x 10-3 m2 / s (5-1500 cSt)

Reducing the speed, the pump can deliver the liquid that the viscosity can be up to 5x104 cSt.

Application scope

1. It can be give performance as transfer pump or booster pump in oil delivery system.

2. It can be used as fuel pump for delivery system, pressurization and injection in fuel supply system

3. It can be applied as hydraulic pump supplying hydraulic power in hydraulic system.

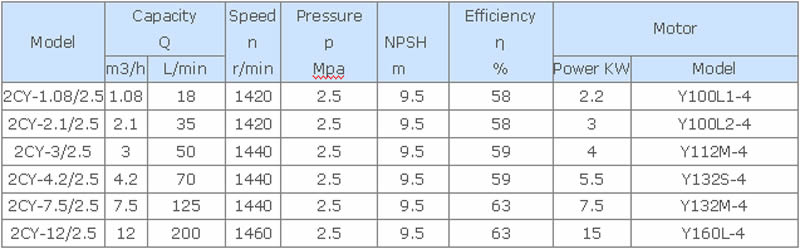

parameters:
