Stainless Steel Internal Gear Pump NYP Stainless Steel Internal Gear Pump NYP SS Internal Gear Pump NYP Internal Gear Pump

Stainless Steel Gear Pump Manufacturer, SS Gear Pump, Food Grade Pump Exporter

  • item no.:

    NYP0.78NYP2.3NYP3.6NYP7.0NYP24NYP52NYP80NYP111NYP160NYP320NYP220NYP650NYP727NYP1670.

  • lead time:

    Customer Date

  • product orgin:

    CHINA BOTOU SAIKEN PUMPS CO.LTD

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description
Description:

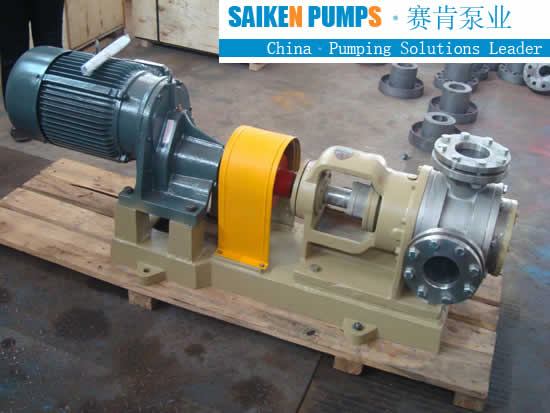

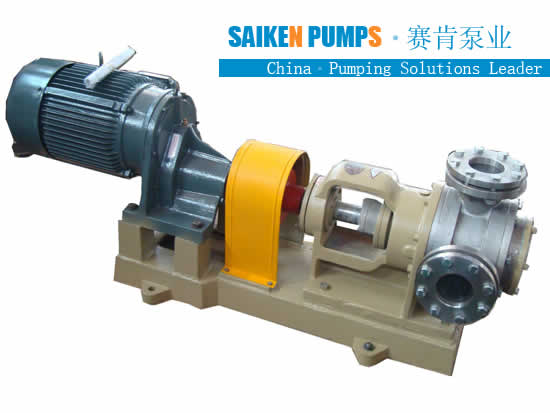

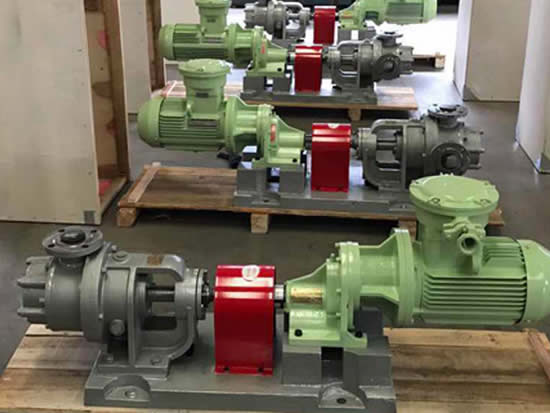

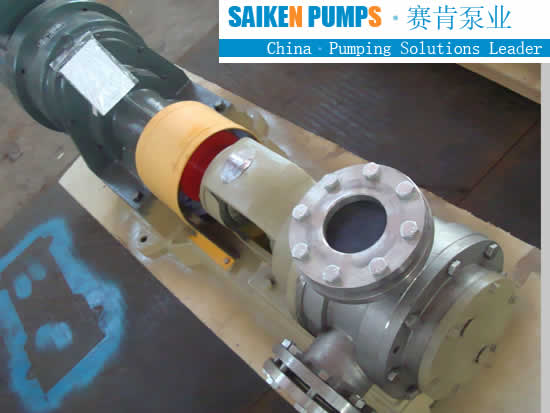

NYP Stainless Steel Rotary Gear Pump is a kind of new positive displacement pump, and is designed according to the different fields of petroleum, chemical industry, paint, medicine, foodstuff and so on. It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pumps' materials.If pumping hazardous, hard-to-handle liquids and for applications, the pump can be fitted with a magnetic driver - NYP Mag-Drive Internal Gear Pump.
The SS Gear Pump non pulsating constant flow, therefore no vibrations on fittings, valves or couplings. Full performances are available in either direction of rotation. It can also be requested with heating jackets, with ports at 90° or 180°.

Model:NYP
Flow:0.5-250m³/h.
Max.pressure:1.0Mpa
Temperature:≤300℃
Manufacturer:China Saiken pumps
Viscosity:1.0-300000cst
Pump speed:60-1450r/min
Material:Cast iron,cast steel,ductile iron,SS304,SS316,SS316L
Medium:Resins, molasses, glue, bitumen......

Heavy-duty construction optimized for rare maintenance. Produced in different versions depending on the specific application. Used by transfer, dosage, processing, load and unload. In chemical, ink, paint, construction, chocolate and oil-industry, in refineries and storage facilities.

Advantages:
* Self-priming.
* The capacity is directly proportional to the rotation speed.
* Non pulsating constant flow, therefore no vibrations in fittings, valves or coupling.
* No foaming or churning of the liquid.
* Only one shaft seal or with magnetic coupling.
* Heating jacket around the casing in one cast.
* Full performance is available in either direction of rotation.
* The casing can be rotated and delivered with 90° or 180° (in-line) ports.
* Relief valve against over-pressure incorporated in the pump.
* Heavy-duty construction optimized for rare maintenance

NYP Stainless Steel Internal Gear Pump with relief valve models:

Model Path mm Displacement
theory
L/100rev		 Viscosity
cSt		 Speed
r/min		 Pressure(MPa) Connections
0.4 0.6 0.8 1.0
Shaft power(kw)Capacity(L/min)
NYP0.78 15 0.78 20 1390 0.17/9.3 0.23/9.0 0.28/8.8 0.32/8.6 G1/2"
60 1390 0.18/9.5 0.24/9.2 0.28/9.0 0.33/8.9
200 1390 0.31/10.4 0.35/10.2 0.39/10.0 0.43/9.9
600 1390 0.39/10.4 0.44/10.3 0.48/10.3 0.52/10.2
2000 910 0.23/6.8 0.27/6.8 0.30/6.8 0.33/6.7
6000 720 0.24/5.4 0.31/6.1 0.30/6.8 0.40/6.8
NYP2.3 25 2.3 20 1400 0.38/28.4 0.49/27.5     G1"
60 1400 0.59/29.2 0.65/28.8
200 1400 0.61/30.0 0.72/29.6
600 1400 0.92/31.9 0.96/31.7
2000 910 0.61/19.9 0.68/19.7
6000 720 0.77/16.32 0.83/16.2
NYP3.6 40 3.6 20 1450 0.69/46.7 0.94/45.9 1.18/45 1.44/43.4
Flange
60 1450 0.81/47.5 1.09/46.7 1.37/45.9 1.57/44.7
200 1450 1.06/49.7 1.31/49.2 1.56/48.8 1.79/47.3
600 1450 1.45/49.9 1.61/49.6 1.77/49.3 1.93/49
2000 960 1.28/34.3 1.41/33.8 1.54/33.7 1.65/33.6
6000 640 1.08/23.0 1.18/22.9 1.28/22.9 1.37/22.8
20000 583 1.22/20.5 1.24/20.4 1.25/20.4 1.38/20.3
60000 455 0.84/16.3 0.91/16.2 0.98/16.1 1.01/16
NYP7.0
NYP7.0A
(The
original
Model:
NYP3
NYP3A)		 40 7.0 20 1450 1.36/98.1 1.8/96 2.0/94.7 2.4/93
Thread
60 1450 1.45/99 1.9/97 2.2/96.4 2.6/95
200 1450 1.62/99.8 2.0/98 2.3/97.5 2.7/97
600 960 1.4/62 1.6/65 1.8/44 2.0/64
2000 960 1.8/67 2.0/66 2.3/65 2.6/65
6000 640 1.5/44.5 1.7/44 1.8/44 2.0/44
20000 583 1.6/40.5 1.9/40 2.1/40 2.2/40
60000 455 1.46/31.5 1.8/31 1.9/31 2.0/31
NYP24 50 24 20 720 1.8/165 2.3/161 2.8/158 3.4/155
Flange
60 720 2.0/166 2.6/164 3.1/162 3.7/158
200 610 1.9/143 2.5/141 3.0/139 3.5/136
600 541 2.1/127 2.6/125 3.0/124 3.5/122
2000 475 2.2/112 2.6/111 2.9/110 3.4/109
6000 357 2.0/85 2.3/84 2.6/83 2.9/83
20000 303 1.9/72 2.2/72 2.4/72 2.6/71
60000 228 1.6/54 1.8/54 2.0/54 2.3/54
NYP52
NYP52A
(The
original
Model:
NYP10
NYP10A)		 50 52 20 720 4.3/362 5.8/355 6.9/348 8.1/340
Thread
60 720 4.7/364 6.2/358 7.3/352 7.5/346
200 610 4.6/309 5.9/304 6.9/300 8.0/294
600 541 4.9/275 6.0/271 6.8/268 7.8/264
2000 475 5.0/243 5.9/238 6.6/237 7.6/235
6000 357 4.1/184 4.9/182 5.3/181 6.2/180
20000 303 3.8/157 4.6/156 5.1/155 5.6/155
60000 228 3.1/119 3.7/118 4.0/118 4.5/118
NYP80 80 80 20 615 5.2/471 6.9/461 8.5/451 10.0/433
Flange
60 615 5.5/474 7.2/465 8.8/457 10.5/448
200 544 5.7/421 7.2/414 8.6/408 10.1/401
600 479 6.0/372 7.3/367 8.5/362 9.8/356
2000 417 6.5/326 7.7/322 8.9/319 10.1/315
6000 305 5.6/239 6.6/237 7.5/326 8.4/233
20000 228 5.5/180 6.4/179 6.9/178 7.7/177
60000 188 5.5/149 6.1/149 6.7/149 7.2/148
NYP111
NYP111A
(The
original
Model:
NYP30
NYP30A)		 80 111.4 20 615 6.7/660 9.2/647 11.2/634 13.6/622
Flange
60 615 6.9/664 9.4/652 11.5/642 13.9/631
200 544 7.1/589 9.3/580 11.0/573 13.2/563
600 479 7.3/521 9.5/514 11.1/508 13.1/502
2000 417 7.7/455 9.7/450 11.0/447 12.7/442
6000 305 6.9/335 8.4/332 9.4/331 10.6/328
20000 228 6.3/251 7.5/250 8.2/249 9.2/248
60000 188 6.2/209 7.1/208 7.6/208 8.5/207
NYP160 100 160 20 600 8.9/930 12.1/916 15.3/902 17.5/888
Flange
60 600 9.4/935 12.6/922 15.8/910 19.0/898
200 550 12.3/866 15.3/859 18.3/852 21.3/845
600 480 10.2/754 12.8/747 15.4/740 18.0/737
2000 355 9.1/560 11.1/556 13/552 15.1/548
6000 319 10.0/505 11.7/502 13.5/500 15.2/497
NYP220 125 220 20 430 8.8/902 11.9/880 15.0/858 18.0/836
Flange
60 430 9.0/909 12.0/890 15.0/871 18.0/852
200 355 8.5/753 11.1/739 13.7/726 16.3/713
600 320 9.4/682 11.8/671 14.1/660 16.5/649
2000 254 9.1/544 11.0/537 13.0/530 15.1/523
6000 244 10.1/483 11.9/478 13.6/473 15.4/468
20000 160 9.1/347 10.5/345 11.9/343 13.3/341
60000 117 8.4/256 9.4/255 10.4/254 11.4/253
NYP320 125 320 20 430 13.0/1306 18.0/1270 22.0/1235 26.0/1200
Flange
60 430 13.0/1316 18.5/1285 22.0/1255 26.5/1225
200 355 11.8/1091 15.5/1068 19.1/1046 22.8/1024
600 320 13.2/987 16.5/968 19.7/950 22.9/932
2000 284 14.2/881 17.4/867 20.6/854 23.8/841
6000 222 13.7/693 16.2/684 18.7/675 21.2/666
20000 168 13.2/529 15.3/525 17.3/522 19.4/519
60000 125 12.0/397 13.7/396 15.3/395 16.9/394
NYP650 150 650 20 315 19.0/1921 26.0/1857 33.0/1794
Flange
60 315 20.0/1940 26.4/1886 33.2/1832
200 284 17.9/1756 24.0/1711 30.4/1666
600 253 17.6/1572 22.7/1534 28.9/1500
2000 196 15.7/1225 20.6/1201 24.5/1176
6000 160 16.0/1008 19.8/993 22.3/978
20000 117 13.6/745 16.5/738 19.2/731
60000 100 15.0/645 17.2/643 19.5/640
NYP727
( The
original
Model:
NYP50)		 150 727 20 315 21.5/2135 29.4/2058 37.3/1980
Flange
60 315 22.4/2157 29.8/2090 37.3/2026
200 280 19.6/1928 26.7/1874 33.5/1820
600 245 19.6/1696 25.1/1652 31.2/1611
2000 200 18.7/1394 23.3/1363 28.5/1334
6000 170 19.2/1195 23.3/1175 27.9/1155
20000 125 17.0/888 20.1/878 23.3/868
60000 100 16.8/720 19.5/717 22.3/713
NYP1670 200 1670 20 250 38.0/3852 52.0/3690 66.0/3529
Flange
60 250 40.0/3900 54.0/3763 68.0/3626
200 225 37.5/3535 50.0/3424 62.5/3313
600 195 37.0/3079 48.0/2990 58.6/2900
2000 160 35.0/2547 44.0/2485 53.0/2422
6000 135 34.6/2177 42.0/2138 50.0/2100
20000 112 35.0/1830 41.5/1810 48.0/1790
60000 85 36.0/1405 35.7/1400 40.6/1392


tags : SS Gear Pump
