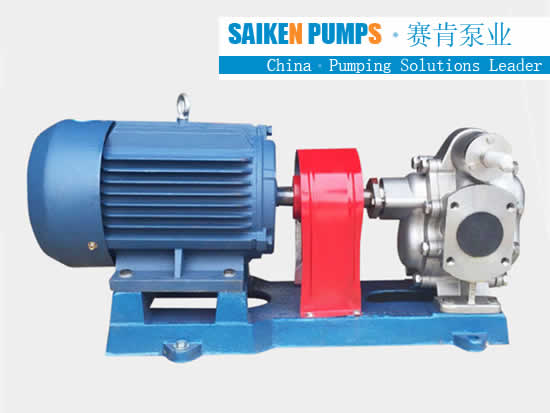

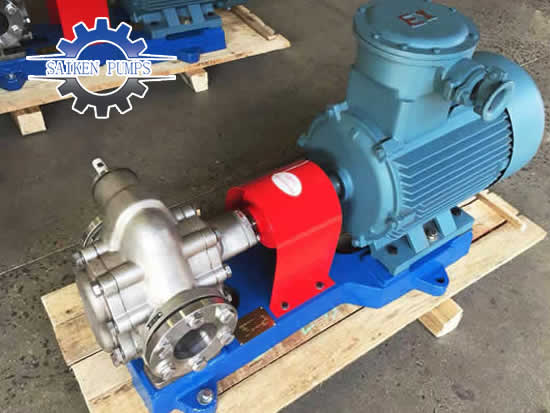

KCB SS GEAR PUMP

item no.:
KCB18.3/55/83.3/200/300/483.3/633/960/1600/5400
lead time:
Customer Date
product orgin:
China gear pump supplier
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

KCB gear pump supplier, manufacturer in China

KCB gear pump can transport lubricant, gear oil, diesel, gasoline, cooking oil, hot oil, etc.

Caliber:3/4″,1″,1.5″ 2"/50mm 3", 70mm 4"/100mm 6"/150mm 8"/200mm 10"/250mm 14"/350mm

Flow:18 33 55 83 135 200 300 483 633 960 1200 1600 2500 3800 9600 (L/min)

Pump Material:Cast iron,CS, stainless steel（304 316 316L）

Gear Material: Steel, copper, stainless steel.

Temperature: less than 180 degrees.(more than 180 degrees need customized)

Advantages:

Low price, Big flow,extensive use, high efficiency,easy maintenance.

High strong wear-resistant gear.

Transfer waste oil, Longer life.

Low viscosity liquid.better wear-resistant ability.

Low noise, better self-priming ability.

Pressure relief valve:Cast iron, stainless steel.

Seal: mechanical seal, gland seal.

KCB SS gear pump Model Parameters:

Model	Capacity Q		Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
	m3/h	L/min					Power kw	Model
KCB-18.3	1.1	18.3	1400	1.45	5	44	1.5	Y90L-4
2CY-1.1/1.45
KCB-33.3	2	33.3	1420	1.45	5	44	2.2	Y100L1-4
2CY-2/1.45
KCB-55	3.3	55	1400	0.33	7	41	1.5	Y90L-4
2CY-3.3/0.33
KCB-83.3	5	83.3	1420	0.33	7	43	2.2	Y100L1-4
2CY-5/0.33
KCB-135	8	135	940	0.33	5	46	2.2	Y112M-6
2CY-8/0.33
KCB-200	12	200	1440	0.33	5	46	4	Y112M-4
2CY-12/0.33
KCB-300	18	300	960	0.36	5	42	5.5	Y132M2-6
2CY-18/0.36
KCB-483.3	29	483.3	1440	0.36	5.5	42	11	Y160M-4
2CY-29/0.36
KCB-633	38	633	970	0.28	6	43	11	Y160L-6
2CY-38/0.28
KCB-960	58	960	1470	0.28	6.5	43	18.5	Y180M-4
2CY-58/0.28
KCB-1200	72	1200	740	0.6	7	43	37	Y280S-8
KCB-1600	95	1600	980				45	Y280S-6
KCB-1800	112	1800	740	0.6	7.5	43	55	Y315S-8
KCB-2500	150	2500	985				75	Y315S-6
KCB-2850	170	2850	740	0.6	8	44	90	Y315L1-8
KCB-3800	230	3800	989				110	Y315L1-6
KCB-4100	245	4100	743	0.6	8	44	132	Y355M1-8
KCB-5400	325	5400	989				160	Y355M1-6
KCB-5600	330	5600	744	0.6	8	44	160	Y355M2-8
KCB-7600	460	7600	989				200	Y355M3-6
KCB-7000	420	7000	744	0.6	8	44	185	Y355L1-8
KCB-9600	570	9600	989				250	Y355L2-6
