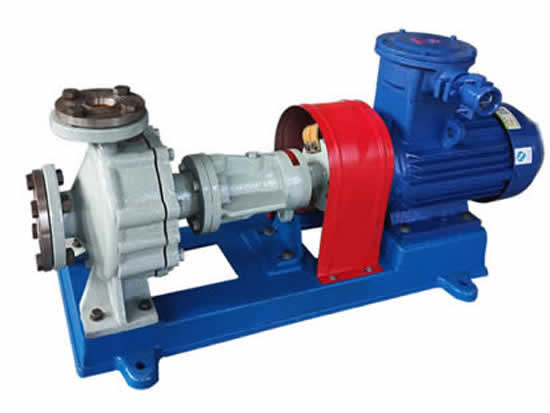

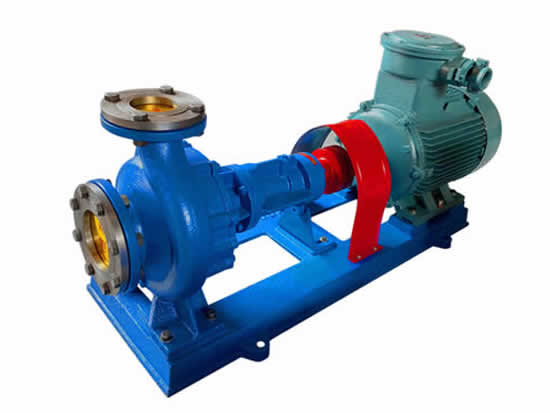

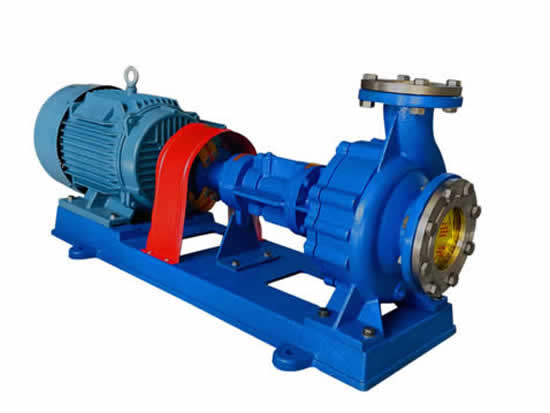

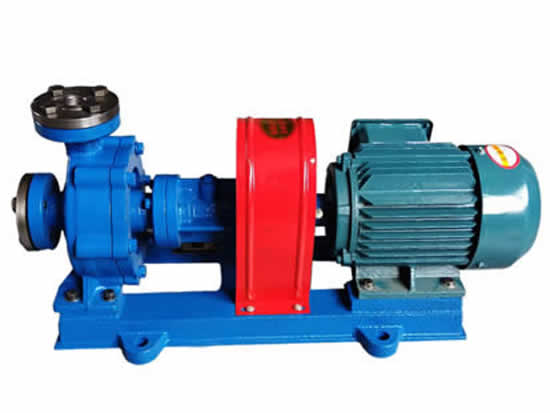

Heat Transfer Oil Pump - Hot oil circulating pump

  • item no.:

    WRY150-125-270A WRY100-65-190
  • lead time:

    Customer Date
  • product orgin:

    saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
The Saiken Brand Heat Transfer Oil Pump can be used for thermal oil that is free of solid particles.This pump can replace the KSB hot oil pump, because the structure and principle are similar, Common fluids pumped include thermal oil, heat transfer oil, bitumen and low viscosity high temperature industrial oils and common applications include steel plants, plastic manufacturing facilities, heat transfer circulating systems, and the rubber and wood processing industry for boiler feed.
Common heat transfer oils include; Mobiltherm, Paratherm, Duratherm, Multitherm, Dowtherm and Marlotherm. Due to the high temperature, the heat conduction oil usually has a very low viscosity and is therefore easily handled by high temperature rated centrifugal pumps.

FLOW RATE UP TO 550M³/HR
HEAD (PRESSURE) UP TO 125M
INLET/OUTLET SIZES DN25 TO DN150
OPERATING TEMPERATURE UP TO 380°C
DRIVE OPTIONS ELECTRIC MOTOR, ENGINE


WRY Heat Transfer Oil Pump Datasheet:

Model
WRY
Inlet/outlet
(mm)
Flow
(m3/h)
Head
(m)
Speed
(r/min)
Motor power
(kw)
Efficiency
η%
NPSH
m
WRY26-20-100 26/20 4.5 15 2825 0.75 40 0.8
WRY50-32-150 50/32 8 22 2840 1.5 42 1.1
WRY50-32-160 50/32 10 25 2840 2.2 42 1.2
WRY65-40-160 65/40 12.5 25 2880 3 45 1.2
WRY50-50-170 50/50 12.5 32 2890 4 45 1.2
WRY65-40-190 65/40 18 40 2890 5.5 52 1.4
WRY65-50-180 65/50 32 32 2900 5.5 52 1.7
WRY65-50-170 65/50 40 25 2900 5.5 52 1.8
WRY65-50-160 65/50 52 16 2900 5.5 51 1.9
WRY65-40-200 65/40 25 50 2900 7.5 53 1.6
WRY80-50-180 80/50 40 40 2900 7.5 63 1.8
WRY80-50-170 80/50 60 20 2900 7.5 63 2.8
WRY100-65-190 100/65 60 38 2930 11 68 2.6
WRY100-65-200 100/65 80 40 2930 15 70 3.1
WRY100-65-220 100/65 58 50 2930 15 68 2.4
WRY100-65-210 100/65 90 45 2930 18.5 70 3.4
WRY100-65-235 100/65 58 60. 2930 18.5 62 2.3
WRY100-65-230 100/65 100 55 2940 22 70 3.6
WRY125-100-190 125/100 155 30 2930 22 72 5.6
WRY100-65-240 100/65 100 70 2950 30 69.8 3.5
WRY100-65-257 100/65 100 80 2950 37 67 3.5
WRY125-100-220 125/100 160 45 2950 37 75 5.5
WRY125-80-250 125/80 160 60 2950 45 74 5
WRY125-80-270 125/80 150 85 2970 55 73 4.7
WRY125-100-250 125/100 200 60 2970 55 76.8 6
WRY125-100-257 125/100 260 70 2970 75 77 7.4
WRY125-100-265 125/100 200 80 2970 75 74 5.8
WRY125-100-260 125/100 300 70 2970 90 78.2 8
WRY125-100-270 125/100 220 85 2970 90 76 6
WRY150-125-250 150/125 350 60 2970 90 76 9
WRY150-125-240 150/125 400 50 2970 90 76 10.5
WRY150-125-270Y 150/125 340 76 2970 110 78.6 8.5
WRY150-125-260Y 150/125 400 70 2970 110 74 9.8
WRY150-125-280Y 150/125 400 78 2970 132 80.6 9.8
WRY150-125-285Y 150/125 370 85 2970 132 80 9.5

If you are interested in this Heat Transfer Oil Pump, please contact us ask for catalogue!
