Stainless Steel Gear Pump For Chocolates

Stainless Steel Gear Pump For Chocolates

item no.:
lead time:
Customer Date
product orgin:
CHINA BOTOU SAIKEN PUMPS CO.LTD
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

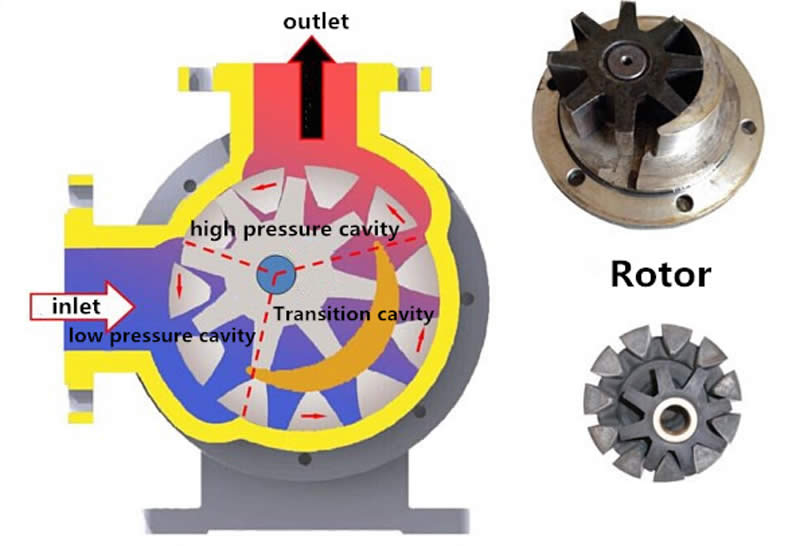

NYP type Stainless Steel Gear Pump design is based on an internal idler gear rotating inside of a larger rotor. Internal gear pumps are robust, give an even flow, handle both low and high viscosity products, are capable of high pressure and are self-priming. In the viscosity level, they are as low as 1.0 cst to 300,000 cst.

Stainless Steel Gear Pump For Chocolates

FEATURES:

*Model:NYP

*Structure: Internal Gear

*Manufacturer: China Boutou saiken pumps

*MODEL:NYP0.78,NYP2.3,NYP3.6,NYP7.0,NYP24,NYP52,NYP80,NYP111,NYP160,NYP320,N* YP220,NYP650,NYP727,NYP1670.

*Brand: SAIKEN PUMPS

*Pressure: Low Pressure (4-10 Bar)

*Temperature: 0°C To 300 C

*Direction: Multi Direction

*Speed: 40 RPM And 1440 RPM (May Vary as per the Application and Use)

*Construction Available: Jacketed / Non Jacketed Type

*MOC: As per Application of Use (SS,C.S, C.I)

*Extra Accessories: Hot Oil Circulation Pump to Keep Pump Warm for Such Special

*Applications:excels at handling clean high viscous fluids,for example:Resins,Glue, Molasses,Chocolates, fats and oils,Resins and polymers,Bitumen and tar,Fuel and lubricants,Solvents,Soap and personal care products.

Examples of applications:

Gear pumps are used or have a potential in all types of industries such as:
Petrochemicals   Pure or filled bitumen, pitch, diesel oil, crude oil, lube oil Chemicals Sodium silicate, acids, plastics, mixed chemicals, isocyanates Paint and Ink Resins and Adhesives
Pulp & Paper   Acid, soap, lye, black liquor, kaolin, lime, latex, sludge
Food   Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal feed.

NYP type Stainless Steel Gear Pump Parameter:

NYP Stainless Steel Gear Pump For Chocolates
