316L Rotary lobe pump for chocolate molasses

316L Rotary lobe pump for chocolate molasses

item no.:
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Brief Introduction:

Stainless Steel 316L Rotary Rotor Pump are used in a variety of industries including food, beverage, pharmaceutical, cosmetics, pulp and paper, coating and painting, oil and gas, daily chemical, and biotechnology. They are popular in these diverse industries because they offer superb sanitary qualities, high efficiency, reliability, corrosion resistance and good clean-in-place and steam-in-place (CIP/SIP) characteristics.

Rotary lobe pumps can handle slurries, pastes, and a variety of liquids. If wetted, they offer self-priming performance. A gentle pumping action minimizes product degradation. They also offer continuous and intermittent reversible flows and can operate dry for brief periods of time. Flow is relatively independent of changes in process pressure, too, so output is relatively constant and continuous.

Technical parameters:

Material : SS304/SS316/SS316L

Max. Flow : 300m3/h

Max.pressure : 12bar/ 174PSI

Max.working temperature : 150 C / 302 F

Suggested working speed: 20-600rpm

Rotor Type : single leave, 2-leaves, 3-leaves

Mechanical seal :Carbide alloy (Standard), fluororubber O-ring

Shaft seal type :Single mechanical seal/Double mechanical seal with cooling system

Voltage :110V, 220V, 380V, 575V etc.

Driving :Fixed speed geared motor, TEFC geared motor with inverter controlled

Connections :Clamp, Thread, Flange

Connection standard :DIN, SMS, 3A, RJT, ISO/IDF

Operated :Electic

Packaging Details :Plywood case, fumigated wooden case

Delivery details :Usually within 20 days after receiving T/T down payment

(Price will depend on different model pump, different configuration. Detailed pls kindly contact us.)

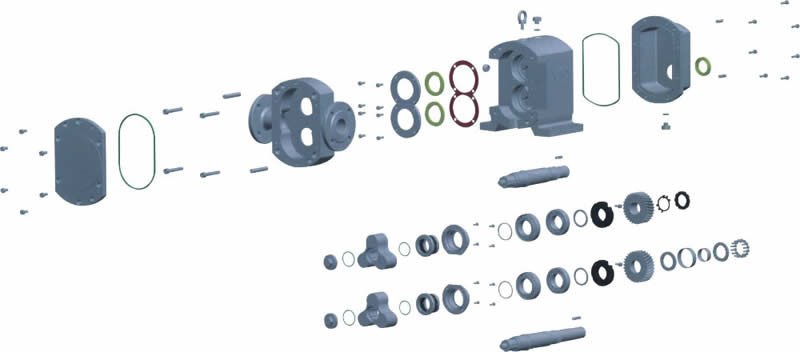

Breakdown drawing:

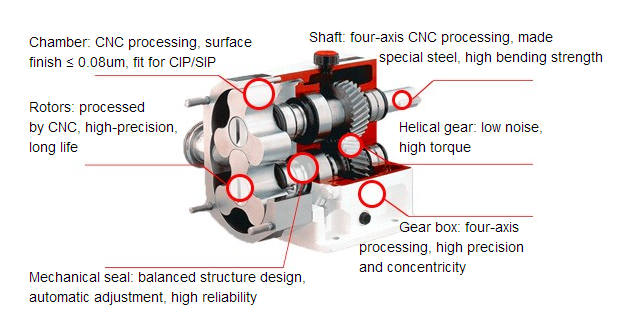

Main features
