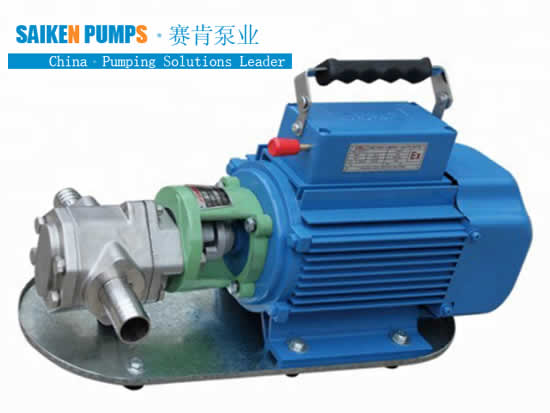

Heat Transfer Oil Pump - Hot oi
We're professional Heat Transfer Oil Pump manufacturers and suppliers in China high quality products with competitive price. We warmly welcome you to buy Hot oil circulating pump from our factory...
read more

latest news

1 inch GRACO diaphragm pump per

1 inch GRACO diaphragm pump perfect replacement Air Operated Diaphragm Pump Model:SKQ-25ASTFF Max Capacity:150LPM, Max pressure:8.4Bar Material Body/Diaphragm/Valve ball/Valve seat: PP/Teflon/PTFE/PTFE Pump Inlet Outlet:1/1 (flange type), A...

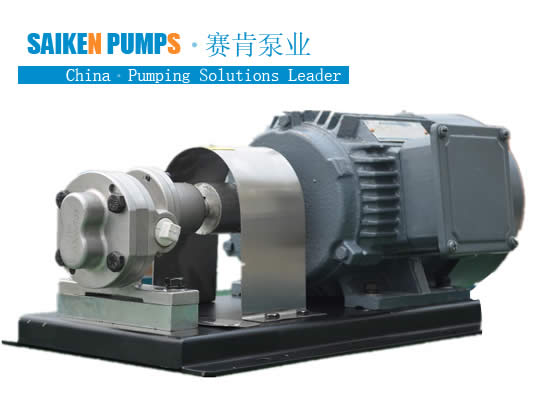

Gear metering pumps for polyurethane & adhesive

china Gear metering pumps for polyurethane

china Gear metering pumps for polyurethane & adhesive

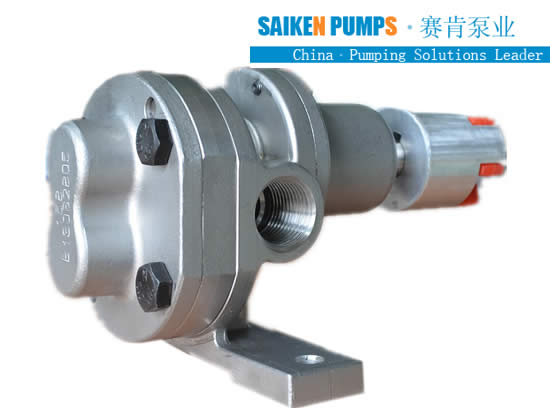

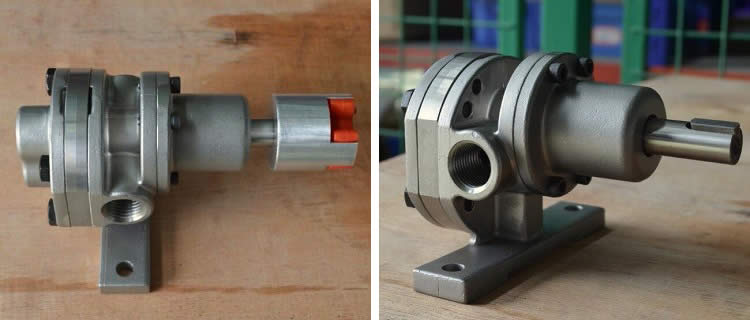

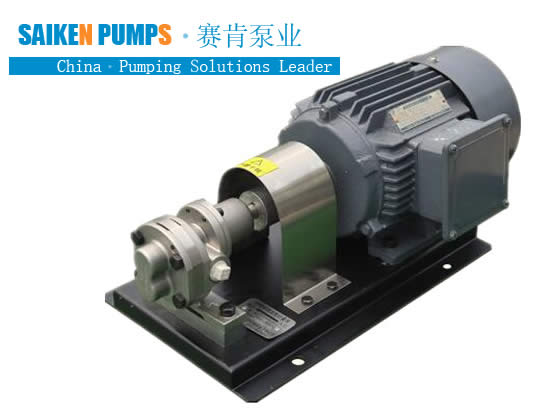

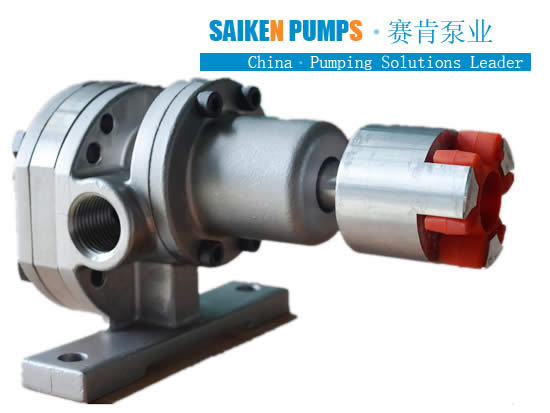

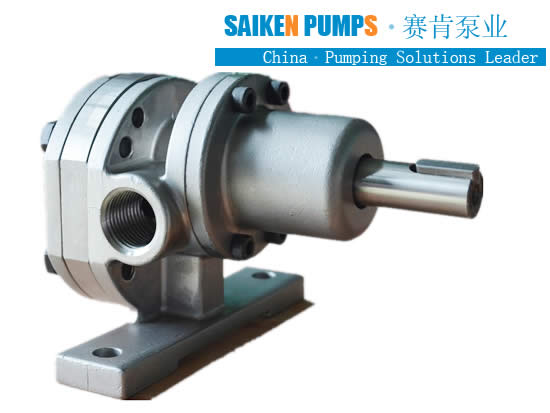

Stainless Steel Gear metering pump

item no.:
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

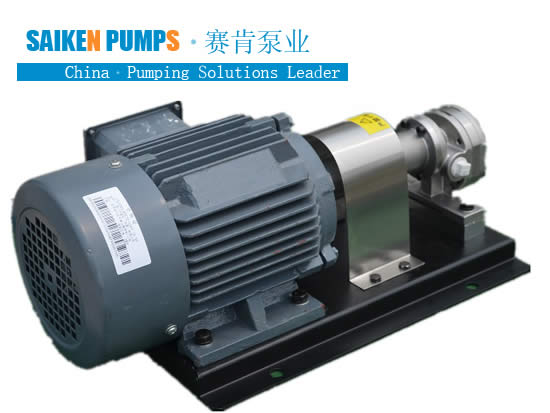

Gear metering pumps for polyurethane & adhesive

Applications：

1. Polyurethane industry: isocyanate, polyether polyols.

2. Casting industry:Sodium silicate; furan resin; methenamine.

3. Adhesive industry.

Gear metering pumps feature a simple structure with only two moving parts. They have no accessories such as failure prone one-way valves. They also incorporate precise metering with pulse-less uniform flow. Previously, where systems needed longer lifespans and higher precision, these pumps were largely OEM built. With the good fluid compatibility, U series Universal Pump is widely used in different industries，and which shows excellent performance except acidic, strong alkaline, and chloride fluid.

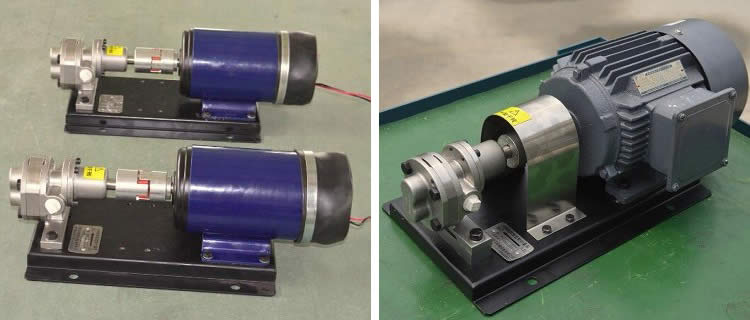

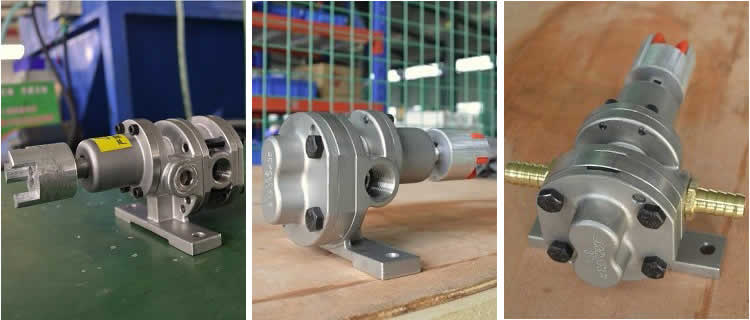

Gear metering pumps for polyurethane

Advantages:

1.Simple construction with only two moving parts and no single valve etc.

2.Many seals to match application requirement.

3.High Hardness, good wear resistance with gear by strict heat treatment and shaft by harden.

4.Easy dismounting and maintenance.

5.High precision and good repeatability.

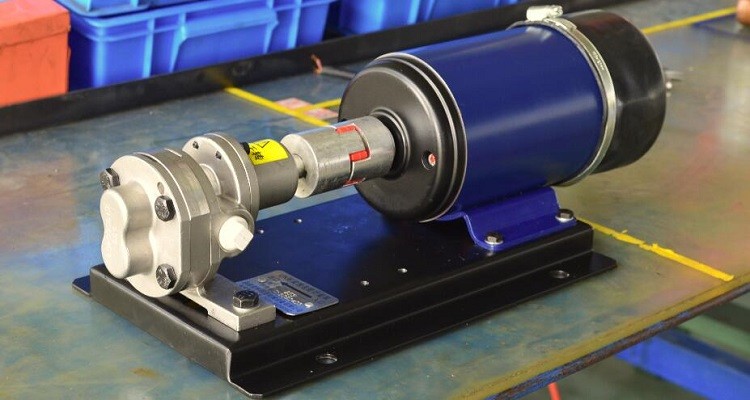

Gear metering pumps for polyurethane & adhesive

Medium	Fluid
Temperature	-18~200℃ (Explain it before selection if the temperature is over 90℃)
Pressure	1-70bar
Viscosity	Up to 10000Cps
Sealing	Single and double mechanical seal, packing seal
Installation	Motor and footing installations

Gear metering pumps Parameter Table

Type	Single turn displacement（cc/rev）	Rated flow at maximum speed（L/min）	maximum speed（rpm）	Inlet/Outlet dimension
US55	0.55	0.8	1500	G 1/4
US79	0.79	1.1	1500	G 3/8
US110	1.1	1.6	1500	G 3/8
US158	1.58	2.3	1500	G 1/2
US253	2.53	3.7	1500	G 1/2
US348	3.48	5.2	1500	G 1/2
US475	4.75	7	1500	G 1/2
US712	7.12	10.6	1500	G 1/2
US950	9.5	14	1500	G 1/2
UM142	14.2	21	1500	G 1/2
UM214	21.4	32	1500	G 3/4
UM320	32	48	1500	G 1
UM481	48.1	47	980	G 1
UM600	60	58	980	G 1 1/4
UM800	80	78	980	G 1 1/4
UL108	108	105	980	G 1 1/2
UL160	160	115	720	flange φ50
UL240	240	172	720	flange φ50

Note: The above parameters are measured when the pump inlet and outlet pressure is 0 Bar
