Portable Stainless Steel Gear Oil Pump

  • item no.:

    WCB50S
  • lead time:

    Customer Date
  • product orgin:

    CHINA BOTOU SAIKEN PUMPS CO.LTD
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Product introduction:

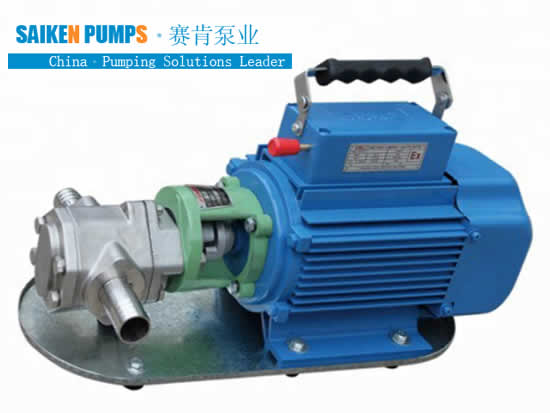

1. WCB Portable Stainless Steel Gear Oil Pump is a small gear oil pump with a portable handle., it can transfer diesel oil, motor oil, gasoline, vegetable oil, milk, honey etc. The highest temperature it can resist is 250 oC,
2. The material of pump housing can be cast iron, aluminum alloy or stainless steel. The gear material can be steel, copper gear, stainless steel gear.
3. With the merits of small volume and easy to move and carry, pump has always been used in oil drum carrier, oil refinery, electric power plant and substation and oil depot.
4. The voltage and frequency could be customized to meet customers' requirements.



Product details:

Working Principle: Double Gears
Main applications:        Oil (Forbidden Gasoline), Lubricating fluid
Driver: Electric motor
Power Specs:

220V/380V/415V 3phase;  110V/220/240 1phase;

50hz/60hz,etc

Max. permissible fluid temperature: 80°C(Anti-oil rubber), 100°C(PTFE)
Type of connection: Thread, Quick couple.
Installation position: Horizontal
Casing parts material: Cast iron, Stainless Steel
Gear mateiral:  Cast iron, Stainless Steel, Bronze
Shaft seal type:   Anti-oil rubber or PTFE
Free passage: 00 mm
Maximum viscosity: 300C.S.T
Maximum drive rating:  1.1kW(1.5HP)
Maximum caliber:   25mm(1inch)
Maximum discharge-side pressure: 0.3MPa(3bar)
Maximum suction 5m(16.4ft)
Flow rate range:   30-100L/min(7.9-26.4US.GPM)



Performance data:

Model  Material

Caliber

(mm)

Capacity

(L/min)

Head

(m)

Motor power

(W)

Voltage
(Phase)
WCB-30 Cast iron    20 30 30 370 1ph/3ph
WCB-50 20 50 30 550 1ph/3ph
WCB-75 25 75 30 750 1ph/3ph
WCB-100 25 100 30 1100 1ph/3ph
WCB-30P Stainless steel   20 30 30 370 1ph/3ph
WCB-50P 20 50 30 550 1ph/3ph
WCB-75P 25 75 30 750 1ph/3ph
