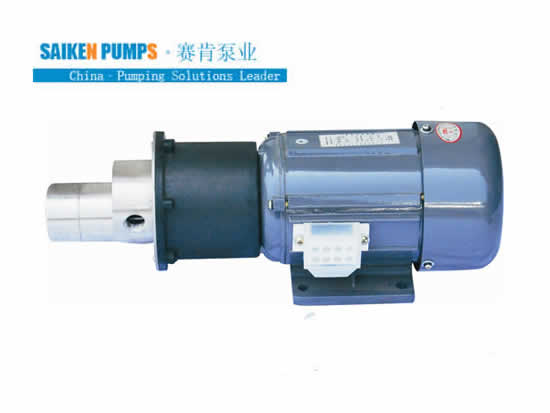

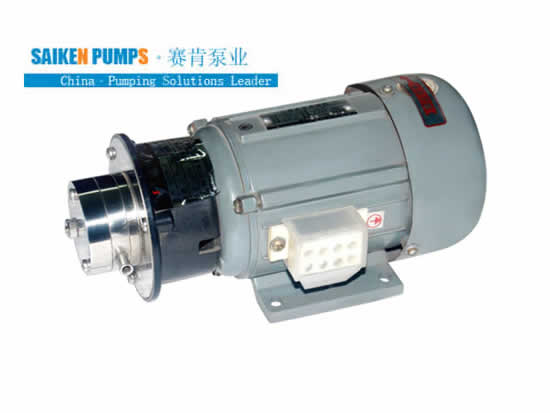

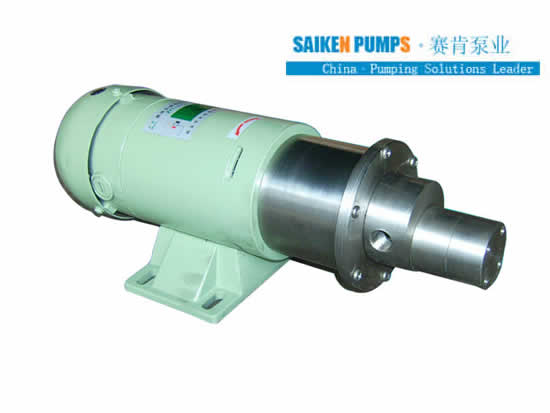

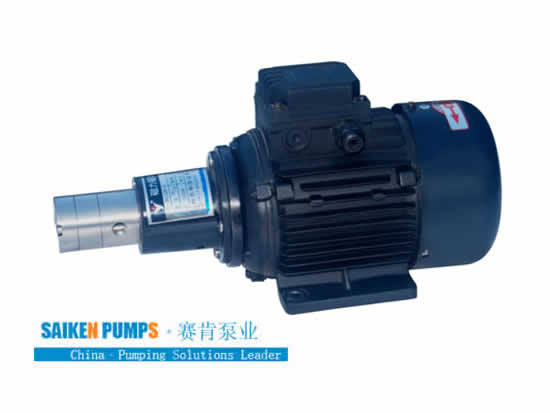

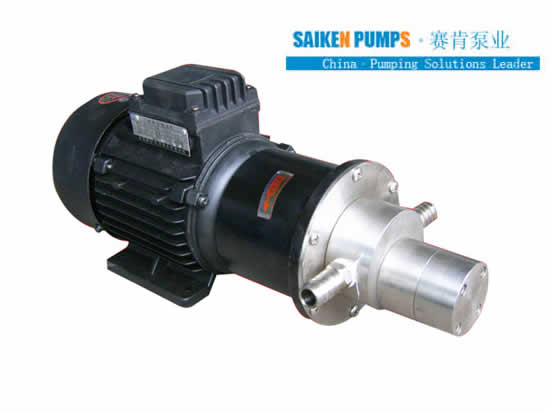

SKCQB Stainless Steel Magnetic Gear Pump
Manufacturer:China Boutou saiken pumps

Type:SKCQB

Casing: 304 or 316 stainless steel With PPS plastic gear.

Power：120-550W

Voltage：380V/220V/24V

Pressure：0.5Mpa

Rated flow：3-15（L/min）

speed：2800（r/min）

Hz：50/60Hz

Caliber：1/8”- 3/4”(G)

Application:

Used for assort liquids sampling, pharmacy, metering, cooling, dispatching, circulation and canned.

Widely used in pharmacy, medical, laser equipment, cooling system, foodstuff, sampling equipment, experiment, water purify, filter system, jet coder, printer, semiconductor and so on.

Stainless Steel Magnetic Gear Pump, SS Magnetic Gear Pump, CQB Stainless Steel Magnetic Pump Manufacturer Exporter & supplier in china

Feature:

Anti-corrosive,simple structure, beautiful outline, low noise, stable pressure, standar capacity, self priming, no leakage , magnetic driving and safely convey.

Model	Diam (mm)	Capacity (L/m)	Pressure (MPa)	Power (W)	Voltage (V)	Speed (r/mim)
8SKCQB-3	1/8	3	0.3	120	24/220/380	2800
10SKCQB-5	1/8	5	0.3	180	24/220/380	2800
15SKCQB-10	3/8	10	0.3	370	24/220/380	2800
20SKCQB-15	3/4	15	0.3	550	380	2800
