KCB stainless steel gear pump

item no.:
KCB33.3/55/483.3/960/1600/3800/9600
lead time:
Customer Date
product orgin:
Botou Saiken Pumps Co.Ltd
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

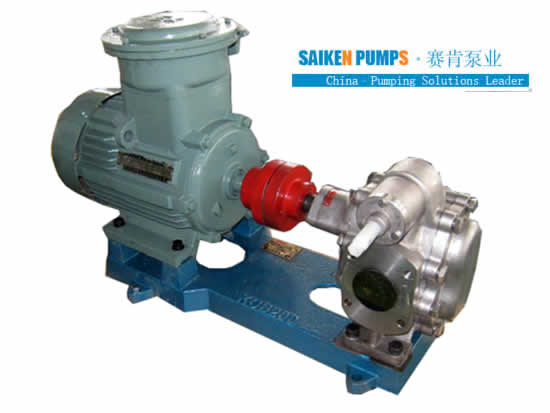

KCB Stainless Steel Gear Pump Overview:

Manufacturer:China Boutou saiken pumps

Type:KCB

MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600.

Flow:1.1-570m³

Discharge pressure:0.33MPA,0.6Mpa,

Liquid viscosity range:5~1500cst;

Seal: packing seal/mechanical seal.

Material:SS304,SS316,SS316L

KCB stainless steel gear pump applies to delivering different types oil or equivalent liquid without solid particles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt.

Saiken pumps is KCB stainless steel gear pump,SS gear pump, stainless steel gear pump Manufacturer Exporter & supplier origin of in china .

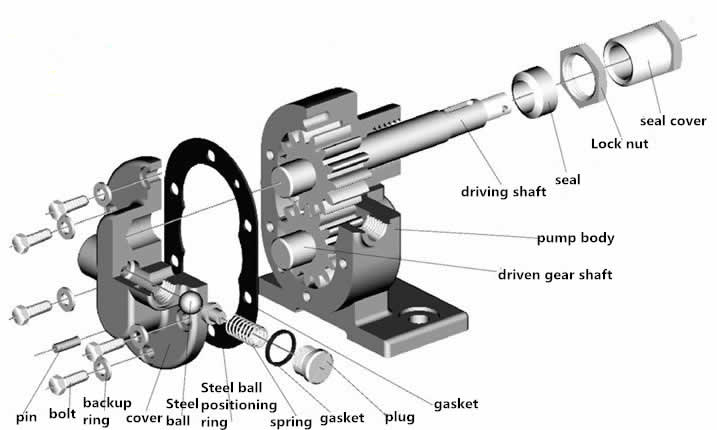

Construction:

1. KCB stainless steel gear pump is mainly gear oil pump gear, shaft, pump body, valve, shaft end seal of. Gear after heat treatment have higher hardness and strength, and with the shaft installed in the replaceable sleeve inside operation. All the parts in the pump will automatic reach lubrication by output medium when pump working

SS gear pump

2. In pump with design reasonable drainage and return chute, making gear in the work under the minimum torque force,so bearing load is small, little wear and tear, pump with high efficiency

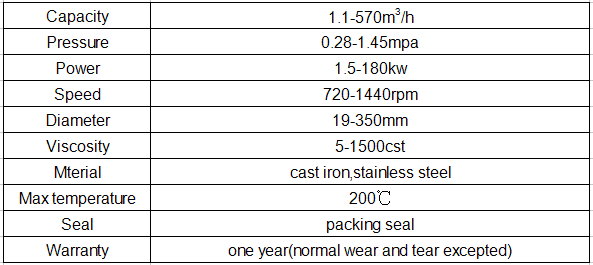

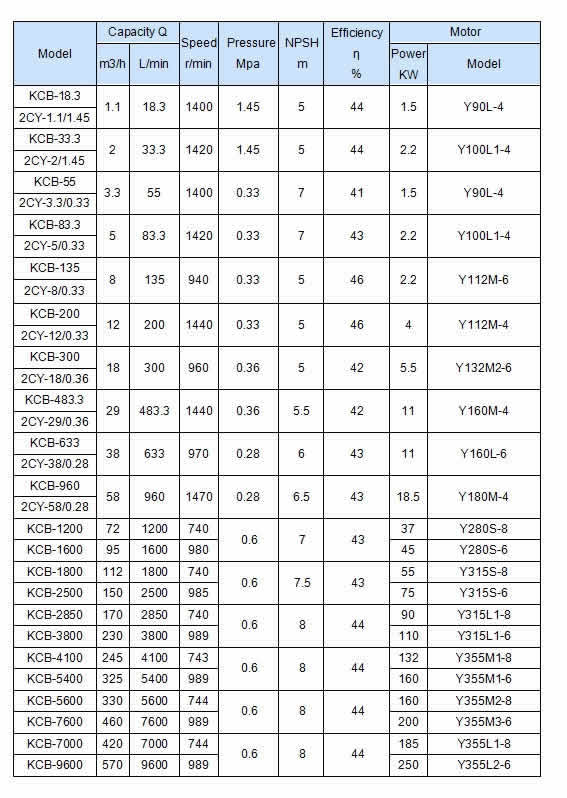

Parameter:

KCB stainless steel gear pump
