YCB Gear Pump

item no.:
YCB1.6-0.6/4-0.6/10-0.6/20-0.6/50-0.6
lead time:
Customer Date
product orgin:
Botou Saiken Pumps Co.Ltd
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

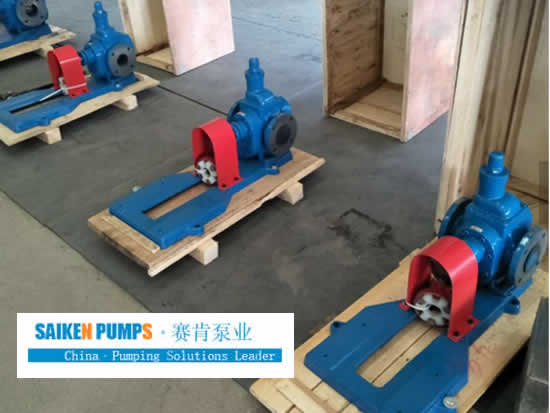

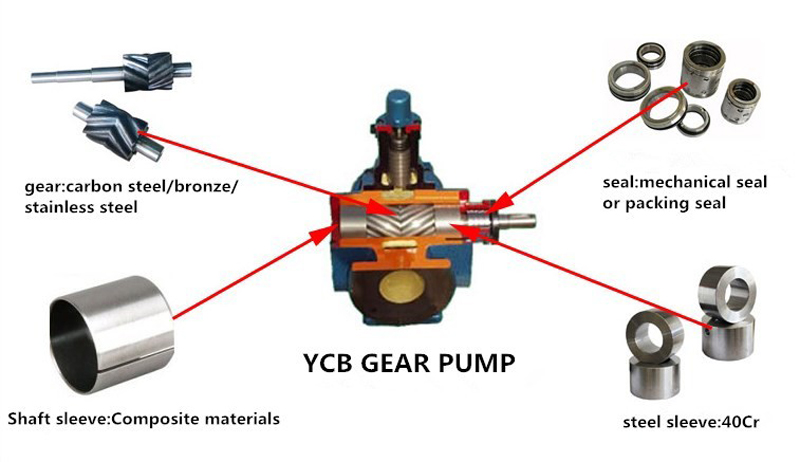

YCB Gear Pump/circular arc external rotary gear pump

Application:

YCB gear pump is applies to delivering lubricating oil or equivalent liquid without solid particles and fibres at temperature below 200 C(cast steel material pump can bear 300 degree high temperature), and with the viscosity of 5-1500 cSt.

Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 50000 cSt.

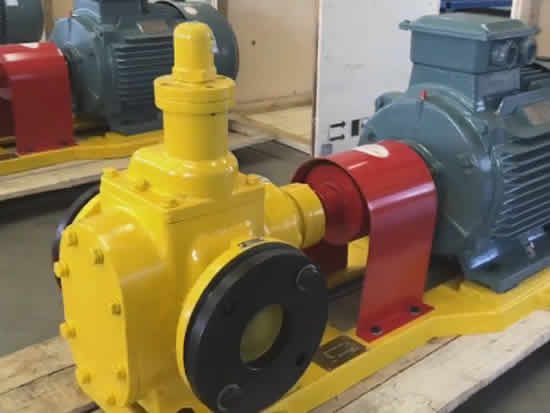

ycb gear oil pump

Specification:

Viscosity:(5-1500cSt)

MAX. Temperature:300 degrees

Pressure:0.6-1.6Mpa

Speed:910-1770r/min

Capacity:0.6-97m³/h

Model

Capacity

(m³/h)

Speed

(r/min)

Pressure

(Mpa)

NPSHR

(m)

Efficiency

(%)

Motor

Power(kw)

Model

YCB0.6-0.6

0.6

1.0

0.7

1.2

910

1390

1130

1710

0.6

5.5

0.75

Y90S-6

Y80L2-4

Y90S-6

Y80L2-4

YCB0.6-1.6

0.6

1.0

0.7

1.2

910

1400

1130

1710

1.6

7.0

1.1

1.5

1.1

Y90L-6

Y90L-4

Y90L-6

Y90S-4

YCB1.6-0.6

1.6

2.5

1.9

3.0

910

1400

1130

1710

0.6

5.5

0.75

1.1

1.5

Y90S-6

Y90S-4

Y90L-6

Y90L-4

YCB1.6-1.6

1.6

2.5

1.9

3.0

940

1440

1150

1750

1.6

7.0

2.2

Y112M-6

Y112M-4

Y112M-6

Y112M-4

YCB3.3-0.6

3.3

5.0

4.0

6.0

940

1420

1150

1730

0.6

5.0

1.5

2.2

1.5

2.2

YI00L-6

YI00L1-4

YI00L-6

YI00L1-4

YCB3.3-1.6

3.3

5.0

4.0

6.0

960

1440

1170

1750

1.6

7.0

5.5

7.5

Y132M2-6

Y132M-4

Y132M1-6

Y132M-4

YCB4-0.6

4.0

6.0

4.8

7.2

940

1420

1150

1730

0.6

5.0

1.5

1.2

2.2

YI00L-6

YI00L1-4

Y112M-6

Y100L2-4

YCB4-1.6

4.0

6.0

4.8

7.2

960

1440

1170

1750

1.6

7.0

5.5

7.5

5.5

7.5

Y132M2-6

Y132M-4

Y132M-6

Y132M-4

YCB8-0.6

8.0

12.0

9.6

14.4

960

1440

1170

1750

0.6

5.0

5.5

Y132S-6

Y132S-4

Y132M1-6

Y132S-4

YCB8-1.6

8.0

12.0

9.6

14.4

970

1460

1170

1760

1.6

7.0

Y160L-6

Y160L-4

Y160L-6

Y160L-4

YCB10-0.6

10.0

15.0

12.0

18.0

960

1440

1170

1750

0.6

5.0

5.5

7.5

Y132M1-6

Y132S-4

Y132M2-6

Y132M-4

YCB10-1.6

10.0

15.0

12.0

18.0

970

1470

1170

1770

1.6

7.0

18.5

Y160L-6

Y160L-4

Y160L-6

Y180M-4

YCB20-0.6

20.0

24.0

970

1170

0.6

5.0

7.5

Y160M-6

YCB25-0.6

25.0

30.0

970

1170

0.6

5.5

Y160L-6

YCB30-0.6

30.0

36.0

970

1170

0.6

5.5

Y160L-6

YCB40-0.6

40.0

48.0

970

1180

0.6

5.5

Y180L-6

YCB50-0.6

50.0

60.0

980

1180

0.6

5.5

Y200L2-6

YCB60-0.6

60.0

73.0

980

1180

0.6

5.5

Y200L2-6

Y225M-6

YCB80-0.6

80.0

97.0

980

1180

0.6

5.5

Y225M-6

Advantage:

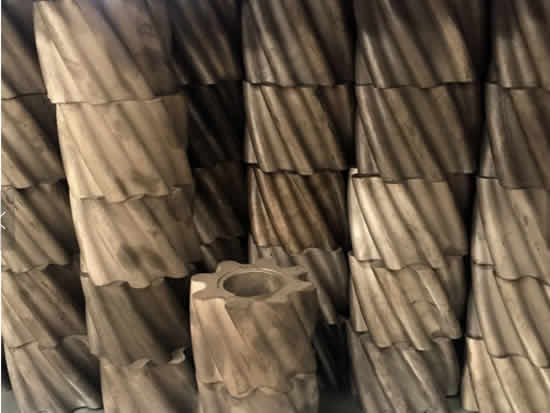

In the gear meshing process, the tooth profile surface has no relative sliding, so the tooth surface has no wear

Smooth running

Fluid free phenomenon

Low noise

Long life

High efficiency.

Application Scope:

1. It can give performance as transfer pump or booster pump in oil deliver system.

2. It can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply system and in all industry fields as lubricating.

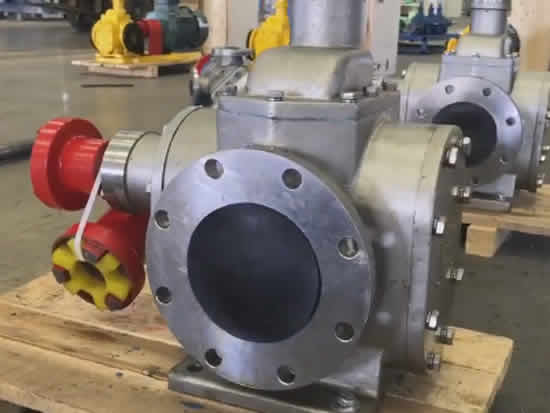

3. Stainless steel material pump can be used to transfer food oil and corrosive liquid.

4. cast steel pump can be used to transfer high temperature oil, and this material pump can have heat jacket, to keep the pump body warm.
