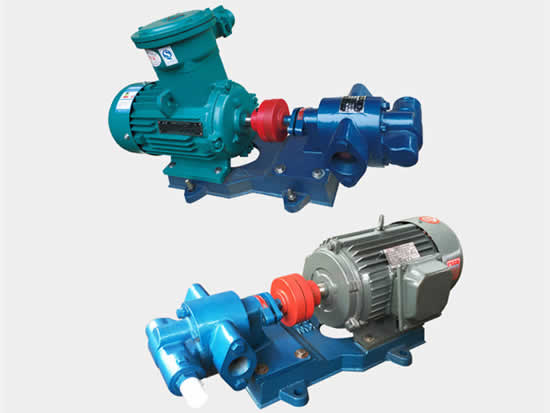

Rotary Gear Pumps for oils

  • item no.:

    kcb/ycb/nyp
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Saiken Pumps successfully catering client by offering them the high-quality Rotary Gear Pumps. The china best class manufacturer and exporters of Rotary Gear Pump known for their reliable service and international standard products. Rotary Gear Pump is being widely used in the chemical plants and at all the other places where the viscous and semi-liquids are utilized. The pump is in high demand because of its tough and seamless finishing, good suction head and wide range capacity. The superior quality Rotary Gear Pump is available in the market with unique features and special design features at best market price.

These Pumps are suited for Pumping and Transferring for all Viscous Liquids, Oil, and Petroleum Products, may these be Oils, Petroleum, Dairy & Food Products, Dyes, Syrups, Slightly Corrosive Chemicals, Soaps, Detergents, Starch, Asphalts, Inks and Paints etc.

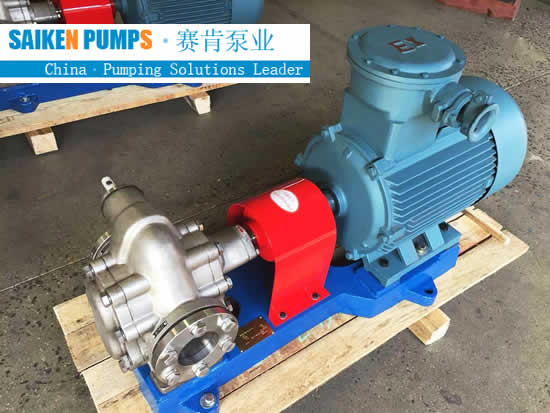

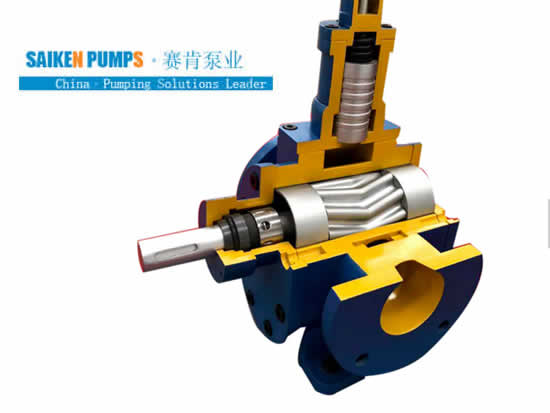

These are Highly Efficient and Low Cost Positive Displacement Pump. These are generally available in cast iron material of construction having sturdy cast iron Body fitted with dynamically balanced Single Helical Gears mounted on Hardened & Grinded Shaft with Bronze bushes which provide superior wear resistance. Special model in SS 316 material of construction is also available which further enhances the application areas where these are employed.

Generally, a standard model pump of this series can entertain fluids upto 90 Deg. C, but with a little modification the same pump can be transformed to handle fluids upto 250 Deg. C. temperature.

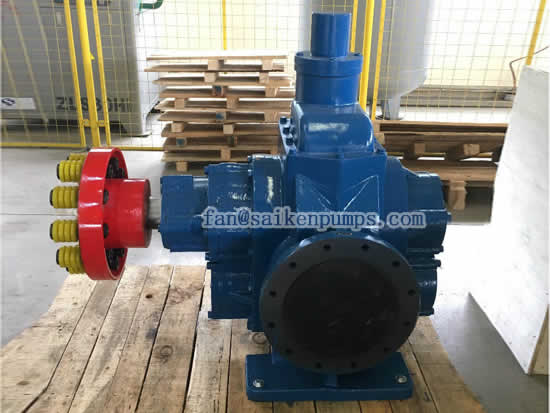

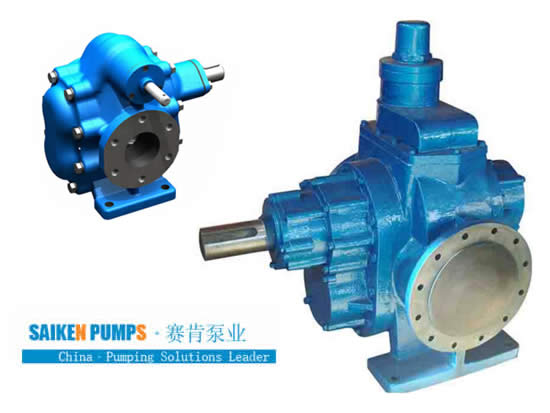

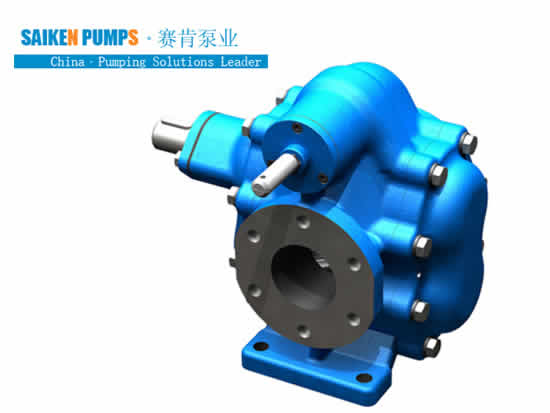

KCB type Rotary Gear Pumps

Pump may be used for pumping oils and fuel oils such as diesel, vegetable oil, Palm Oil, kerosene, biodiesel, motor oil, and even glycerol (waste product in biodiesel process).

MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600.
Flow:1.1-570m³
Discharge pressure:0.33MPA,0.6Mpa,

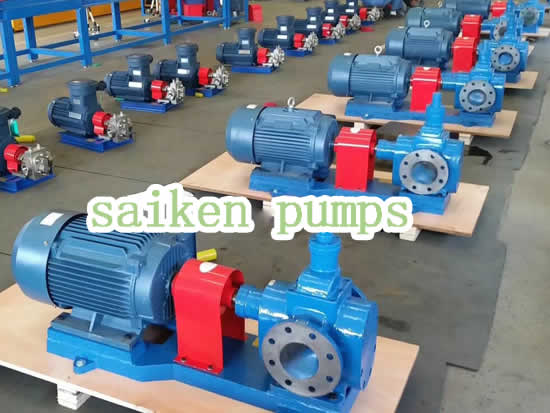

YCB type Rotary Gear Pump

MODEL: YCB0.6,YCB1.6,YCB3.3,YCB4,YCB8,YCB10,YCB20,YCB30,YCB40,YCB50
Flow:0.6-60 m³
Discharge pressure:0.6Mpa,1.6Mpa

2CY type Rotary Gear Pump

Flow:1.08-18 m³
Discharge pressure:0.6Mpa,1.6Mpa,2.5Mpa

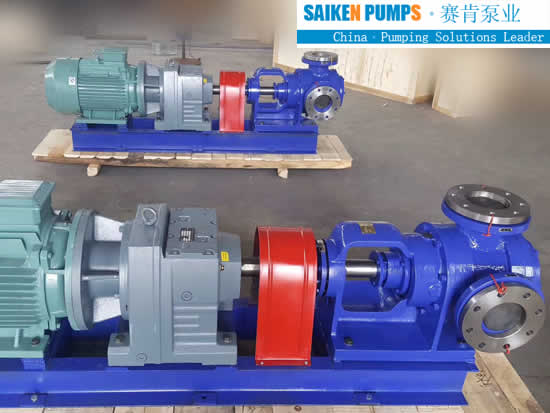

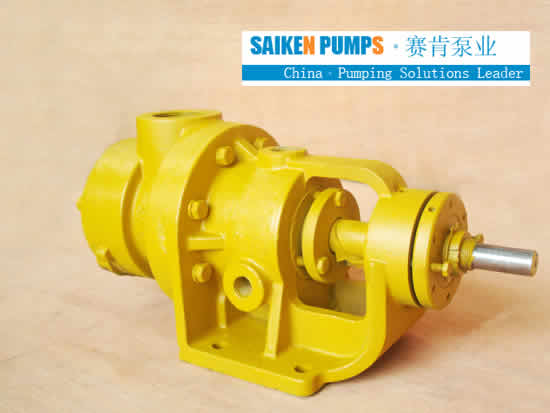

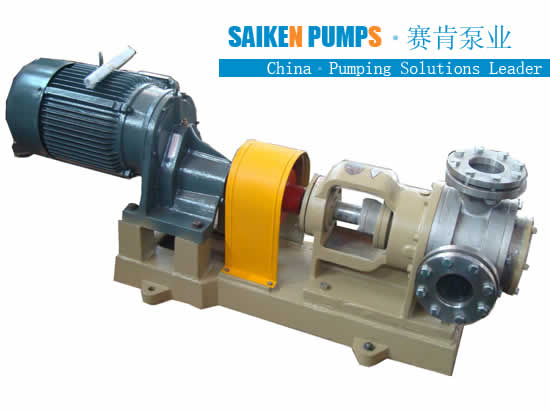

NYP type Rotary Gear Pump with jacket for high viscosity liquid

MODEL:NYP0.78,NYP2.3,NYP3.6,NYP7.0,NYP24,NYP52,NYP80,NYP111,NYP160,NYP320,NYP220,NYP650,NYP727,NYP1670.
Flow:0.6-250 m³
Discharge pressure:0.4Mpa,0.6Mpa,0.8Mpa,1.0Mpa
pump inlet and outlet:15~200mm
Link:Flange/Thread;
Drive mode:Gear motor drive;
Liquid viscosity range:10~300000cst;
Seal: packing seal/mechanical seal.

tags :
Request a free quote

  • subject :

    Rotary Gear Pumps for oils
  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

related products
  •  GC-25 Gear Oil Pump with belt p

    GC Series Gear Pump main models are GC-13,GC-20,GC-25mm (1"),GC-40,GC-50mm (2"),GC-80 (3"),GC Gear Pump with belt pulley made of Cast Iron.Suitable for Water Oil & Various Liquids,Kerosene,Light oil,Machine oil,Heavy oil,Wate Applications...

  •  Rotary Twin Gear Pump

    Saiken pumps is leading Rotary Twin Gear Pump Manufacturer in china. We are leading Exporter and Suppliers of Rotary Twin Gear Pumps. Contact: fan@saikenpumps.com...

  •  Gear pump for transporting larg

    KCB 9600 Oil Transfer Pump Specifications: 576 m³/Hr (9600 L/min) x 250 kW,KCB gear Fuel Oil Transfer Pump,Diesel Transfer Pump,Lube Oil Pump,Lubrication Pump,KCB1600,KCB2500,KCB5400,KCB7600,KCB9600....

  •  Rotary Gear Pumps for oils

    Saiken Pumps is leading Rotary Gear Pumps Manufacturer in china. We are best Rotary Gear Pumps Exporter, Suppliers of Rotary Gear Pump. Contact : fan@saikenpumps.com ...

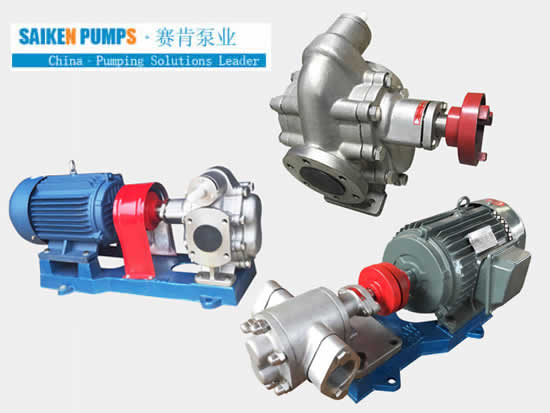

  •  Stainless Steel Rotary Gear Pum

    CHINA SAIKEN PUMPS is Stainless Steel Gear Pump Manufacturer in china.We are Exporter of SS Gear Rotary Pump and Suppliers of Stainless Steel Gear Pump model:KCB/YCB/NYP Stainless Steel Rotary Gear Pump....

  •  KCB Series Of Rotary Twin Gear

    KCB Series Of Rotary Twin Gear Pump manufacturer & factory china Botou saiken pump,Rotary Twin Gear Pump Capacity up to 570m³/Hr,Port Size:3/4″to 14″,suitable for oil viscosity of 5-1500 cSt viscous liquids....

  •  NYP Rotary Gear Pump

    NYP Rotary Gear Pump - We are saiken Brand NYP Rotary Gear Pump Manufacturer and Suppliers.Best Rotary Gear Pump Exporter in china.Contact:fan@saikenpumps.com...

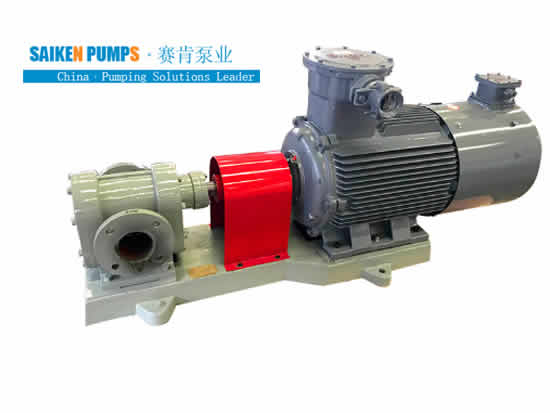

  •  High Pressure Gear Pump
