High Temperature Resistant Centrifugal Pump Installer

Rotary Twin Gear Pump

  • item no.:

    YCB
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

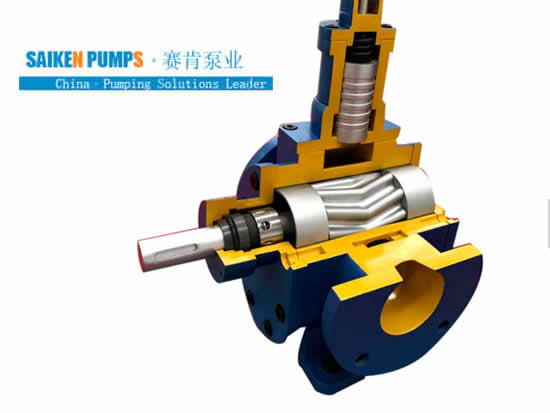

Saiken pumps offer YCB Rotary Twin Gear Pump Model is heavy duty foot mounting type positive displacement rotary twin gear pump. It can be easily cleanable and maintainable.  These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which is help to increase life and performance of pump.

These pumps are having flange at the end of suction and delivery which are available in 1" to 6" size. These pumps can be operated up to pressure of 6 kg/cm² with 0.6 m³/h to 80 m³/h flow capacity.  These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 250ºc.
Pump Selection
The self lubricated type Model YCB used for clean viscous liquid having sufficient lubricating property such as clean lube oil, Gear oil, Animal oil, Fish oil, Hydraulic oil, Honey, Vegetable oil, SAE lubricating oil for continues duty.

Model YCB-G This Model should be selected for liquid which tends to solidify at room temperature such as Bitumen, Furnace oil, Asphalt, Tar, Starch, Molasses, Naptha, RFO, Silicate, Wax, Soap solution. Because This model have jacketing construction facilitate the heating the pump by steam or thermic fluid.

Technical parameter:
Flow: 0.6m3/h~80m3/h
Pressure: 0.6Mpa~2.5Mpa
Speed: 970rpm~2900rpm
Dia of inlet & outlet: 25mm~150mm

Features:
Heavy duty gear pump design for continuous application.
Herringbone rotor design eliminate side thrust.
Modified tooth profile enhance tooth life.
Floating gear design ensures uniform load distribution.
Optionally steam jacket available.
Double helical gear design prevent axial load.
Low leakage path by  design improve volumetric efficiency.
Shorter bearing span reduces bending effect.
Application:
Power plant.
Steel plant.
Cement plant.
Bitumen plant.
Petroleum industries.
Refineries.
Pumping station.
All kind of liquid loading and unloading.

Model Capacity Speed
r/min
Exhaust
Pressure
Mpa
(NPSH)r
m
Efficiency
η %
Motor
m 3 /h Hz Power
kw
Model
YCB0.6-0.6 0.6 910 0.6 5.5 32 50 0.75 Y90S-6
1.0 1390 50 0.75 Y80L2-4
0.7 1130 60 0.75 Y90S-6
1.2 1710 60 0.75 Y80L2-4
YCB0.6-2.5 0.6 910 2.5 7.0 70 50 1.1 Y90L-6
1.0 1400 50 1.5 Y90L-4
0.7 1130 60 1.1 Y90L-6
1.2 1710 60 1.1 Y90S-4
YCB1.6-0.6 1.6 910 0.6 5.5 42 50 0.75 Y90S-6
2.5 1400 50 1.1 Y90S-4
1.9 1130 60 1.1 Y90L-6
3.0 1710 60 1.5 Y90L-4
YCB1.6-2.5 1.6 940 2.5 7.0 71 50 2.2 Y112M-6
2.5 1440 50 4 Y112M-4
1.9 1150 60 2.2 Y112M-6
3.0 1750 60 4 Y112M-4
YCB3.3-0.6 3.3 940 0.6 5.0 60 50 1.5 Y100L-6
5.0 1420 50 2.2 Y100L1-4
4.0 1150 60 1.5 Y100L-6
6.0 1730 60 2.2 Y100L1-4
YCB3.3-2.5 3.3 960 2.5 7.0 72 50 5.5 Y132M2-6
5.0 1440 50 7.5 Y132M-4
4.0 1170 60 4 Y132M1-6
6.0 1750 60 7.5 Y132M-4
YCB4-0.6 4.0 940 0.6 5.0 60 50 1.5 Y100L-6
6.0 1420 50 2.2 Y100L1-4
4.8 1150 60 2.2 Y112M-6
7.2 1730 60 3 Y100L2-4
YCB4-2.5 4.0 960 2.5 7.0 72 50 5.5 Y132M2-6
6.0 1440 50 7.5 Y132M-4
4.8 1170 60 5.5 Y132M-6
7.2 1750 60 7.5 Y132M-4
YCB8-0.6 8.0 960 0.6 5.0 61 50 3 Y132S-6
12.0 1440 50 5.5 Y132S-4
9.6 1170 60 4 Y132M1-6
14.4 1750 60 5.5 Y132S-4
YCB8-2.5 8.0 970 2.5 7.0 75 50 11 Y160L-6
12.0 1460 50 15 Y160L-4
9.6 1170 60 11 Y160L-6
14.4 1760 60 15 Y160L-4
YCB10-0.6 10.0 960 0.6 5.0 62 50 4 Y132M1-6
15.0 1440 50 5.5 Y132S-4
12.0 1170 60 5.5 Y132M2-6
18.0 1750 60 7.5 Y132M-4
YCB10-2.5 10.0 970 2.5 7.0 76 50 11 Y160L-6
15.0 1470 50 15 Y160L-4
12.0 1170 60 11 Y160L-6
18.0 1770 60 18.5 Y180M-4
YCB20-0.6 20.0 970 0.6 5.0 68 50 7.5 Y160M-6
24.0 1170 60 7.5 Y160M-6
YCB25-0.6 25.0 970 0.6 5.5 69 50 11 Y160L-6
30.0 1170 60 11 Y160L-6
YCB30-0.6 30.0 970 0.6 5.5 70 50 11 Y160L-6
36.0 1170 60 11 Y160L-6
YCB40-0.6 40.0 970 0.6 5.5 72 50 15 Y180L-6
48.0 1180 60 15 Y180L-6
YCB50-0.6 50.0 970 0.6 5.5 72 50 22 Y200L2-6
60.0 1180 60 22 Y200L2-6
YCB60-0.6 60.0 1470 0.6 5.5 72 50 22 Y180L-4
YCB80-0.6 80.0 980 0.6 5.5 72 50 30 Y205M-6
