Stainless Steel Rotary Gear Pump

item no.:
KCB/YCB/NYP
lead time:
Customer Date
product orgin:
BOTOU SAIKEN PUMPS CO.LTD
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

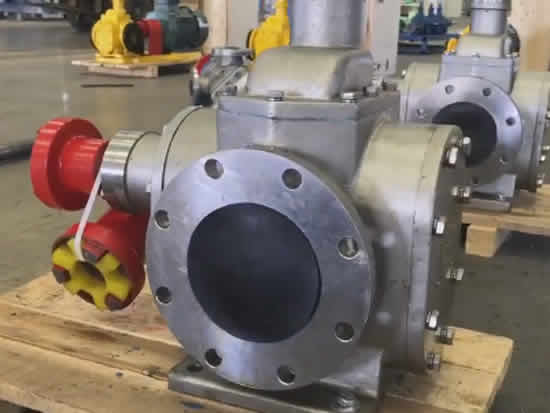

Stainless Steel Rotary Gear Pump overview:

Manufacturer:China Boutou saiken pumps

Type:KCB/YCB/NYP/2CY Stainless Steel Rotary Gear Pump

Capacity:0.18-570 m³/h

Temperature:≤250℃

Viscosity:5-300000cst

Material:SS304,SS316,SS316L

SS Rotary Gear Pump application scope:

1. Medicine industry

2. Fine chemical industry

3. Food industry

4. Cosmetics industry

5. Printing and dyeing industry

6. Brewing industry

KCB type Stainless Steel Rotary Gear Pump

Pump may be used for pumping oils and fuel oils such as diesel, vegetable oil, Palm Oil, kerosene, biodiesel, motor oil, and even glycerol (waste product in biodiesel process).

MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600.

Flow:1.1-570m³

Discharge pressure:0.33MPA,0.6Mpa,

YCB type Stainless Steel Rotary Gear Pump

MODEL: YCB0.6,YCB1.6,YCB3.3,YCB4,YCB8,YCB10,YCB20,YCB30,YCB40,YCB50

Flow:0.6-60 m³

Discharge pressure:0.6Mpa,1.6Mpa

2CY type Stainless Steel Rotary Gear Pump

Flow:1.08-18 m³

Discharge pressure:0.6Mpa,1.6Mpa,2.5Mpa

NYP type Stainless Steel Rotary Gear Pump with jacketed for high viscosity liquid

MODEL:NYP0.78,NYP2.3,NYP3.6,NYP7.0,NYP24,NYP52,NYP80,NYP111,NYP160,NYP320,NYP220,NYP650,NYP727,NYP1670.

Flow:0.6-250 m³

Discharge pressure:0.4Mpa,0.6Mpa,0.8Mpa,1.0Mpa

pump inlet and outlet:15~200mm

Link:Flange/Thread;

Drive mode:Gear motor drive;

Liquid viscosity range:10~300000cst;

Seal: packing seal/mechanical seal.

tags : Stainless Steel Gear Pump | Stainless Steel Rotary Gear Pump
