NYP Rotary Gear Pump

item no.:
NYP2.3/10/80/220
lead time:
Customer Date
product orgin:
Botou Saiken Pumps Co.Ltd
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Brief introduction:

NYP Rotary Gear Pump is a kind of new positive displacement pump, and is designed according to the different fields of petroleum, chemical industry, paint, medicine, foodstuff and so on. It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pumps' material also regarded as NYP high viscosity pump.
we emerged as most prominent and leading NYP Rotary Gear Pump manufacturer and exporter.

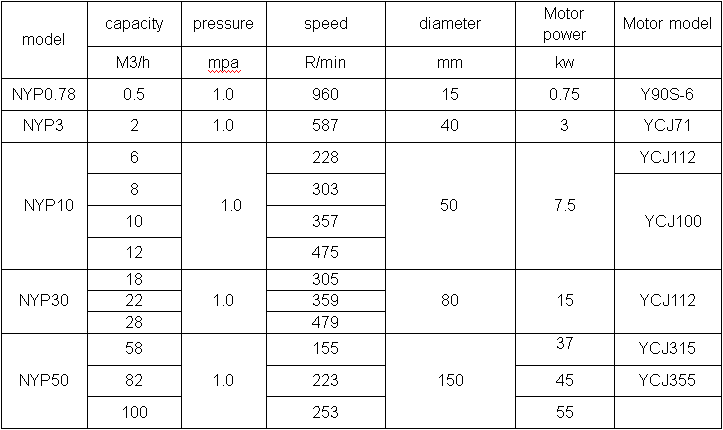

Capacity	0.5-300m3/h
Pressure	0.78-1.0mpa
Power	1.5-55kw
Speed	60-960rpm
Diameter	40-150mm
Viscosity	1.0-300000cst
Mterial	cast iron,stainless steel
Max temperature	200℃
Seal	packing seal
Warranty	one year(normal wear and tear excepted)

Application scope:

(1) Oil industry

(2) Chemical industry

(3) Coating industry

(4) Grease industry

(5) Medicine industry

(6) Food industry

Construction

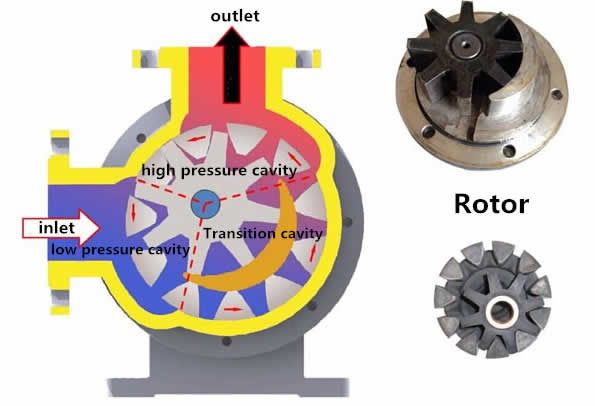

(1) Work Principle:

Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casing and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being take to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh, The transportation of liquid finished.

Rotary Gear Pump

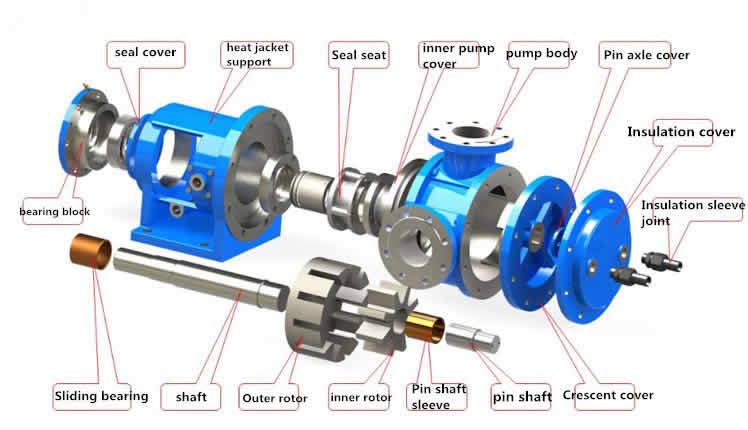

(2)Structure Feature

The pumps are mainly composed of internal rotor, outside rotor, shaft, pump casing, front cover, seal, bearing, etc.

The pump seal adopts packing seal or mechanical seal, when the delivered medium is high temperature, high viscosity or strong corrosion, packing seal should be adopted.The drive way is belt wheel driving or coupling driving.

Rotary Pump
