KCB Series Of Rotary Twin Gear Pump

item no.:
KCB18.3/55/83.3/200/300/483.3/633/960/1600/5400
lead time:
Customer Date
product orgin:
BOTOU SAIKEN PUMPS CO.LTD
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

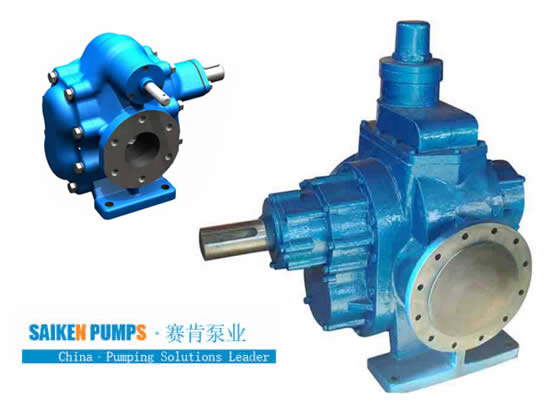

KCB Series Of Rotary Twin Gear Pump

FEATURES:
Manufacturer:China Boutou saiken pumps

Concept: Herringbone Gear Pump (Double Helical Gears)

Brand: SAIKEN PUMPS

Structure: Gear Pump

Pressure: Low Pressure (0-14.5 Kg/Cm2)

Temperature: 0°C To 250 C

Direction: Multi Direction

Speed: 740 RPM And 1440 RPM (May Vary as per the Application and Use)

Construction Available: Jacketed / Non Jacketed Type

MOC: As per Application of Use (SS,C.S, C.I)

Extra Accessories: Hot Oil Circulation Pump to Keep Pump Warm for Such Special

Applications:oils and fuel oils such as diesel, vegetable oil, Palm Oil, kerosene, biodiesel, motor oil, and even glycerol,Refineries, Coal Tar, Paint,Veg.Oil, Mineral Oil, Crude Oil, Loading – Unloading & Transfer,Molasses, All Acidic Liquids, Bitumen, Lube Oil, Heavy Oil.

SPECIFICATIONS

Capacity: 1m³ /Hr to 570m³ /Hr (22 Different Models)

Port Size: 3/4″to 14″

Shaft Seal: Mechanical / Gland Puck Type

The KCB Series Rotary Twin Gear Pump is best suited for equivalent liquid without solid particles and fibres at temperature below 200 deg C and with the viscosity of 5-1500 cSt viscous liquids,If the viscosity is higher than 1500cst,need to use NYP Series Of Rotary Twin Gear Pump.

KCB Series Of Rotary Twin Gear Pump Model Parameters:

Model	Capacity Q		Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
	m3/h	L/min					Power kw	Model
KCB-18.3	1.1	18.3	1400	1.45	5	44	1.5	Y90L-4
2CY-1.1/1.45
KCB-33.3	2	33.3	1420	1.45	5	44	2.2	Y100L1-4
2CY-2/1.45
KCB-55	3.3	55	1400	0.33	7	41	1.5	Y90L-4
2CY-3.3/0.33
KCB-83.3	5	83.3	1420	0.33	7	43	2.2	Y100L1-4
2CY-5/0.33
KCB-135	8	135	940	0.33	5	46	2.2	Y112M-6
2CY-8/0.33
KCB-200	12	200	1440	0.33	5	46	4	Y112M-4
2CY-12/0.33
KCB-300	18	300	960	0.36	5	42	5.5	Y132M2-6
2CY-18/0.36
KCB-483.3	29	483.3	1440	0.36	5.5	42	11	Y160M-4
2CY-29/0.36
KCB-633	38	633	970	0.28	6	43	11	Y160L-6
2CY-38/0.28
KCB-960	58	960	1470	0.28	6.5	43	18.5	Y180M-4
2CY-58/0.28
KCB-1200	72	1200	740	0.6	7	43	37	Y280S-8
KCB-1600	95	1600	980				45	Y280S-6
KCB-1800	112	1800	740	0.6	7.5	43	55	Y315S-8
KCB-2500	150	2500	985				75	Y315S-6
KCB-2850	170	2850	740	0.6	8	44	90	Y315L1-8
KCB-3800	230	3800	989				110	Y315L1-6
KCB-4100	245	4100	743	0.6	8	44	132	Y355M1-8
KCB-5400	325	5400	989				160	Y355M1-6
KCB-5600	330	5600	744	0.6	8	44	160	Y355M2-8
KCB-7600	460	7600	989				200	Y355M3-6
KCB-7000	420	7000	744	0.6	8	44	185	Y355L1-8
KCB-9600	570	9600	989				250	Y355L2-6
