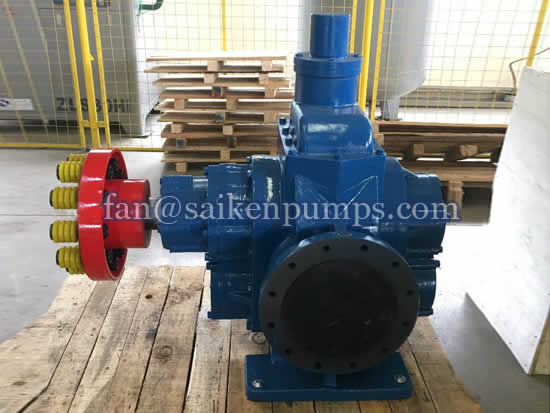

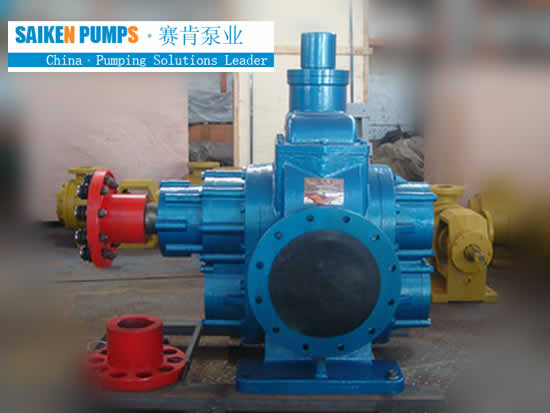

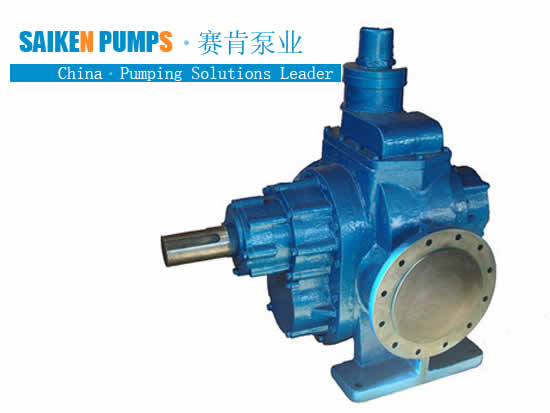

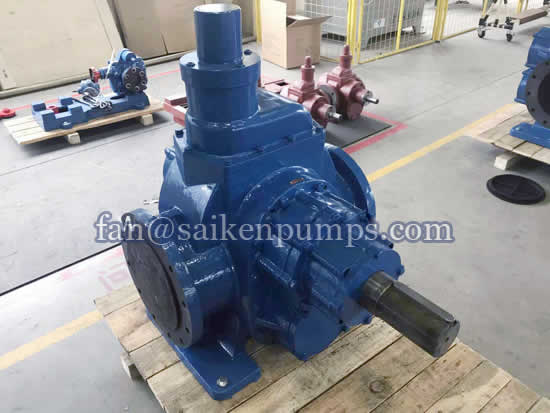

Gear pump for transporting large quantities of oil

Gear pump for transporting large quantities of oil

item no.:
KCB9600/KCB 9600
lead time:
Customer Date
product orgin:
CHINA SAIKEN PUMPS
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

KCB-9600 Oil Transfer Pump Specifications: 576 m³/Hr (9600 L/min) x 250 kW

KCB Series Fuel Oil Transfer Pump, Diesel Transfer Pump

Electric Diesel Pump, Fuel Pump, Oil Transfer Pump, Petrol Fuel Transfer Pump, Electric Fuel Transfer Pump, Fuel Transfer System

KCB Series Lube Oil Pump,Lubrication Pump

Lubricant Transfer Pump, Oil Lubricator, Automatic Lubrication Pump, Electric Pumps for Grease Transfer, Lube Oil Pumping Applications, Electric Grease Transfer Pump

MODEL:KCB18.3,KCB33.3,KCB55,KCB83.3,KCB135,KCB200,KCB300,KCB483.3,KCB633, KCB960,KCB1200,KCB1600,KCB2500,KCB3800,KCB5400,KCB7600,KCB9600.

Flow rate: 1.1 m³/h-570 m³/h

Rotational speed: 740 r/min-1440 r/min

Discharge pressure: 0.28 Mpa-1.45 Mpa

Net positive suction head: 4 m

Motor power: 1.5KW-250KW.

KCB type Oil Transfer Pump Specifications:

Model	Capacity Q		Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
	m3/h	L/min					Power kw	Model
KCB-18.3	1.1	18.3	1400	1.45	5	44	1.5	Y90L-4
2CY-1.1/1.45
KCB-33.3	2	33.3	1420	1.45	5	44	2.2	Y100L1-4
2CY-2/1.45
KCB-55	3.3	55	1400	0.33	7	41	1.5	Y90L-4
2CY-3.3/0.33
KCB-83.3	5	83.3	1420	0.33	7	43	2.2	Y100L1-4
2CY-5/0.33
KCB-135	8	135	940	0.33	5	46	2.2	Y112M-6
2CY-8/0.33
KCB-200	12	200	1440	0.33	5	46	4	Y112M-4
2CY-12/0.33
KCB-300	18	300	960	0.36	5	42	5.5	Y132M2-6
2CY-18/0.36
KCB-483.3	29	483.3	1440	0.36	5.5	42	11	Y160M-4
2CY-29/0.36
KCB-633	38	633	970	0.28	6	43	11	Y160L-6
2CY-38/0.28
KCB-960	58	960	1470	0.28	6.5	43	18.5	Y180M-4
2CY-58/0.28
KCB-1200	72	1200	740	0.6	7	43	37	Y280S-8
KCB-1600	95	1600	980				45	Y280S-6
KCB-1800	112	1800	740	0.6	7.5	43	55	Y315S-8
KCB-2500	150	2500	985				75	Y315S-6
KCB-2850	170	2850	740	0.6	8	44	90	Y315L1-8
KCB-3800	230	3800	989				110	Y315L1-6
KCB-4100	245	4100	743	0.6	8	44	132	Y355M1-8
KCB-5400	325	5400	989				160	Y355M1-6
KCB-5600	330	5600	744	0.6	8	44	160	Y355M2-8
KCB-7600	460	7600	989				200	Y355M3-6
KCB-7000	420	7000	744	0.6	8	44	185	Y355L1-8
KCB-9600	570	9600	989				250	Y355L2-6
