Sumitomo Internal Gear Pump QT Pump

  • item no.:

    QT31QT41QT51QT61QT22QT32QT42QT52QT62QT23QT33QT43QT53QT63Q
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

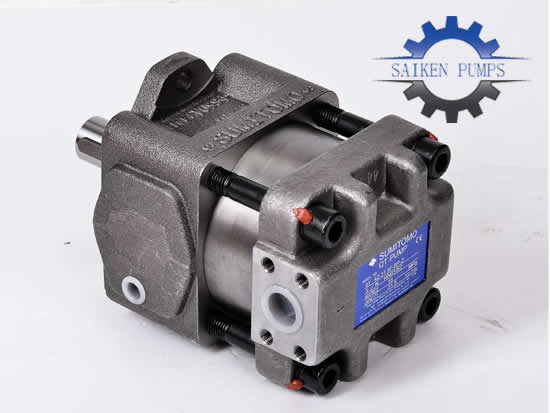

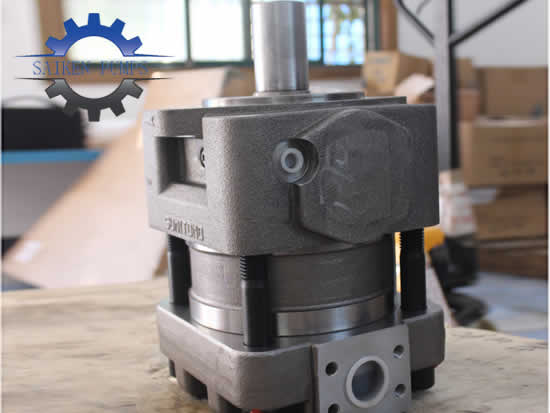

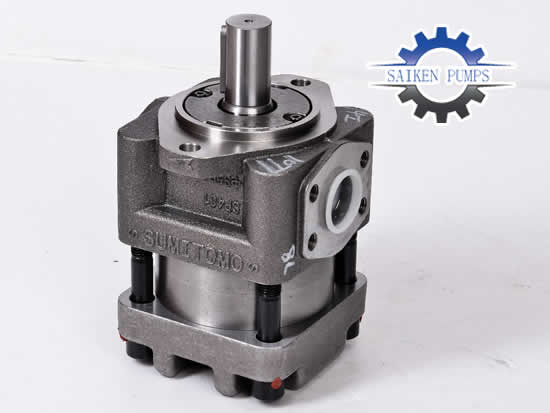

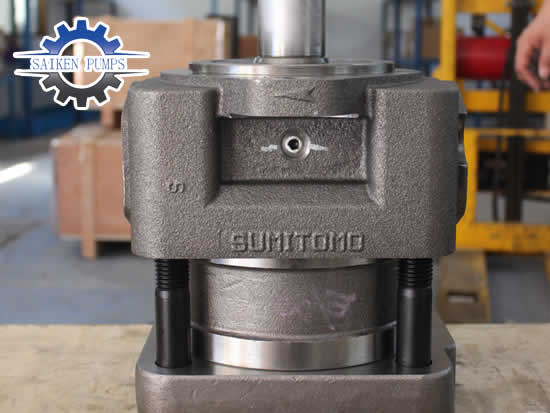

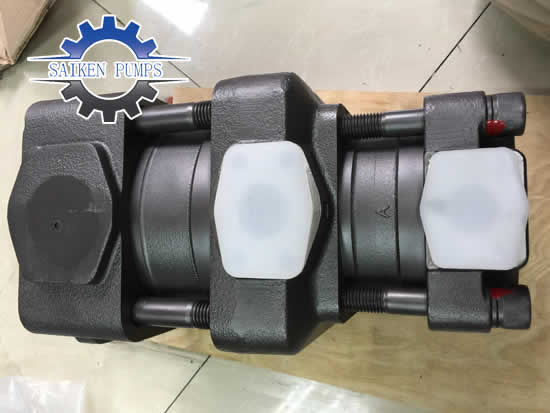

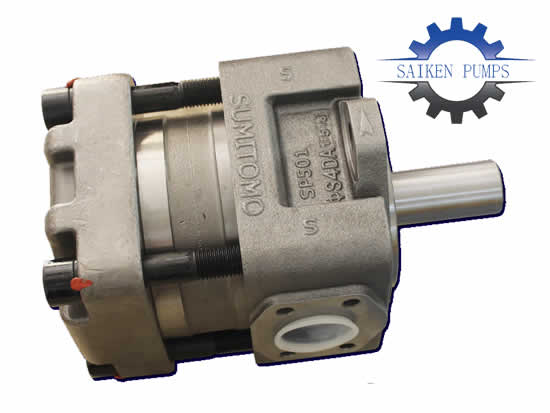

Sumitomo QT series Internal Gear Pump Specifications
Sumitomo QT series Internal Gear Pump is widely used in injection molding machines, forging machinery and elevators and other mechanical equipment.
QT Internal Gear Pump Features:
1. low noise performance
 The QT series internal gears are smooth and mute, and their excellent features are specially designed for gears. The sound is very low when used, and the sound is still smooth even at high speeds.
2, high running wear resistance
In addition to the simple mechanical structure, the use of advanced hydraulic oil can reduce the mechanical surface and the wear and tear of the functional parts. QT chestnut can run at high pressure 320bar pressure, even if the use of general hydraulic oil, it is not easy to wear pieces.
3, very low pressure pulsation
QT pump can almost completely remove the pressure wave, it can be used as the system precision control of the ideal machine tool pressure

High pressure internal gear pump QT model instructions :



QT

4

3

-25

F

-*

-A

Seris

size

Pressure type

Theory flow cc/rev

rotation and oil port

optional

Design no

Internal gear pump

2,3,4,5,6

3high pressure pump

4,5,6.3,8,10,12.5,16,20,25
31.5,40,50,63,80,100,125

no:clockwise F(right)
L:anticlockwise E(left)

H:high pressure seals

V: Phosphate ester by using

*:other speacial

A

QT

4

3

-25

F

-*

-A

Seris

size

Pressure type

Theory flow cc/rev

rotation and oil port

optional

Design no

Internal gear pump

2,3,4,5,6

3high pressure pump

4,5,6.3,8,10,12.5,16,20,25
31.5,40,50,63,80,100,125

no:clockwise F(right)
L:anticlockwise E(left)

H:high pressure seals

V: Phosphate ester by using

*:other speacial

A


Note:H:with high pressure seals(oil in pressure less than 2kgf/cm2)

High pressure internal gear pump QT specification:

Model Work pressure
kgf/cm2
Power N KW flow/min when no loads
60HZ 50HZ
Rate PR Max MP Rate pressure and 1500rpm’s
Power
6P motor 4P motor 6P motor 4P motor
1200rpm 1800rpm 1000rpm 1500rpm
Q23-4 250 320 3.0 - 7.5 - 6.4
QT23-5 3.5 6.5 9.8 5.4 8.2
QT23-6.3 4.3 7.9 11.9 6.5 9.9
QT23-8 5.4 9.8 14.8 8.2 12.3
QT33-10 6.8 11.9 17.9 9.9 14.9
QT33-12.5 8.6 15.0 22.6 12.5 18.8
QT33-16 10.6 18.6 28.0 15.5 23.3
QT43-20 13.7 24.1 36.3 20.0 30.2
QT43-25 16.8 29.9 45.0 24.8 37.4
QT43-31.5 21.6 38.5 57.9 32.0 48.2
QT53-40 26.1 45.7 70.3 38.9 58.5
QT53-50 33.5 60.3 90.6 50.2 75.5
QT53-63 41.9 75.9 114.0 63.2 95.0
QT63-80 52.7 95.6 143.7 79.6 119.7
QT63-100 66.1 120.3 181.2 100.4 150.9
QT63-125 81.3 149.0 223.8 124.1 186.4


Other models:
QT61-160-A,QT61-200-A,QT61-250-A,
QT31-20-A,QT31-25-A,QT31-31.5-A,QT41-40-A,QT41-50-A,QT41-63-A,QT51-80-A,QT51-100-A,QT51-125-A,QT61-160-A,
QT61-200-A,QT61-250-A,
QT22-4-A,QT22-5-A,QT22-6.3-A,QT22-8-A,QT32-10-A,QT32-12.5-A,QT32-16-A,QT42-20-A,QT42-25-A,QT42-31.5-A,
QT52-40-A,QT52-50-A,QT52-63-A,QT62-80-A,QT62-100-A,QT62-125-A,
QT23-4-A,QT23-5-A,QT23-6.3-A,QT23-8-A,QT33-10-A,QT33-12.5-A,QT33-16-A,QT43-20-A,QT43-25-A,QT43-31.5-A,
QT53-40-A,QT53-50-A,QT53-63-A,QT63-80-A,QT63-100-A,QT63-125-A,
QT31-20F-A,QT31-25F-A,QT31-31.5F-A,QT41-40F-A,QT41-50F-A,QT41-63F-A,QT51-80F-A,QT51-100F-A,QT51-125F-A,
QT61-160F-A,QT61-200F-A,QT61-250F-A,
QT22-4F-A,QT22-5F-A,QT22-6.3F-A,QT22-8F-A,QT32-10F-A,QT32-12.5F-A,QT32-16F-A,QT42-20F-A,QT42-25F-A,
QT42-31.5F-A,QT52-40F-A,QT52-50F-A,QT52-63F-A,QT62-80F-A,QT62-100F-A,QT62-125F-A,
QT23-4F-A,QT23-5F-A,QT23-6.3F-A,QT23-8F-A,QT33-10F-A,QT33-12.5F-A,QT33-16F-A,QT43-20F-A,QT43-25F-A,
QT43-31.5F-A,QT53-40F-A,QT53-50F-A,QT53-63F-A,QT63-80F-A,QT63-100F-A,QT63-125F-A,
QT2222,QT3222,QT3223,QT4222,QT4223,QT4232,QT4233,QT4242,QT4322,QT4323,QT4123,QT4133,QT5222,QT5223,
QT5242,QT5243,QT5252,QT5333,QT5133,QT5343,QT6222,QT6253,QT6262,QT6363,QT6123,QT6143,QT6153,
QT31-20,QT31-25,QT31-31.5,QT41-40,QT41-50,QT41-63,QT51-80,QT51-100,QT51-125,QT61-160,QT61-200,QT61-250
