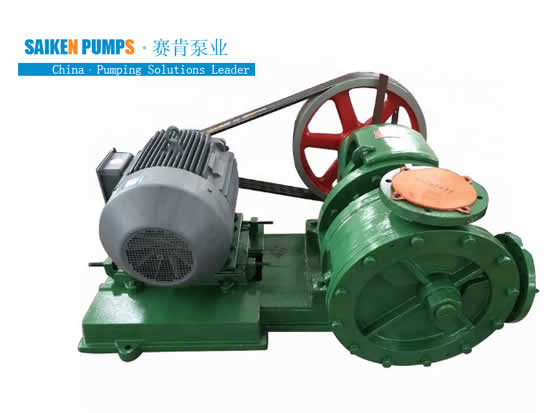

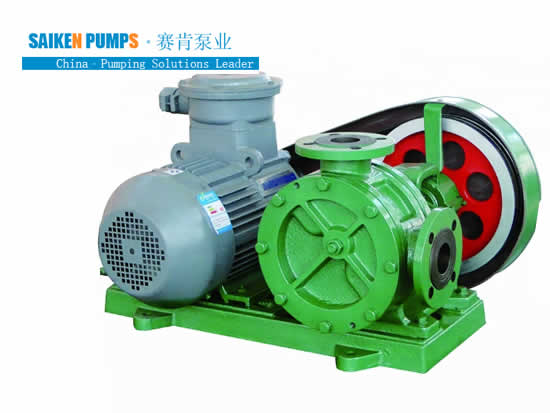

NCB High Viscosity Gear Rotor Pump

item no.:
NCB-8/0.5NCB-12/0.5
lead time:
Customer Date
product orgin:
Botou Saiken Pumps Co.Ltd
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Brief introduction:

NCB High Viscosity Liquid Internal Gear Rotor Pump adopts the internal gear principle. Both inside and outside gear section are closed to one side, and the other side is separated by the “crescent board”. The gears rotate in the same direction, and there is no trapped fluid phenomenon. The pump has advanced structure, and the advantage of small size, large flow, low noise, long service life.

we emerged as most prominent and leading NCB High Viscosity Gear Rotor Pump manufacturer and exporter.

Features:

1. advanced structure

2. small size

3. large flow

4. low noise

5. long service life

Application scope:

NCB series rotor pump is applicable to transport all kinds of light, from volatile liquid, to the heavy, thick liquid, even half solid liquid. It is widely used in petroleum industry, chemical industry, oil industry, grease industry and paint industry, etc.

Model	Flow m3/h	Pressure Mpa	Motor Model	Motor Power KW	Assembly style	Outline dimension LxWxH (mm)
NCB1.2/0.3	1.2	0.3	Y90L-6	1.1	Belt driven or Coupler driven or gear box driven	234x140x140
NCB1.8/0.3	1.8	0.3	Y100L-6	1.5		254x153x153
NCB3/0.3	3	0.3	Y132S-8	2.2		254x153x153
NCB6/0.5	6	0.5	Y100L-4	3		700x420x323
NCB8/0.5	8	0.5	Y100L-4	3		700x420x323
NCB12/0.5	12	0.5	Y132M-4	4		800x550x420
NCB16/0.5	16	0.5	Y160M-6	5.5		800x550x420
NCB20/0.5	20	0.5	Y160L-6	7.5		800x550x420
NCB12/0.7	12	0.7	Y160M-4	7.5		990x780x510
NCB18/0.7	18	0.7	Y160L-6	11		990x780x510
NCB24/0.5	24	0.5	Y160M-4	11		990x780x510
NCB30/0.5	30	0.5	Y160L-4	15		990x780x510
NCB15/1.5	15	1.5	Y180L-6	15		1230x1009x740
NCB20/0.7	20	0.7	Y160L-6	11		1230x1009x740
NCB25/0.7	25	0.7	Y180L-6	15		1230x1009x740
NCB35/0.5	35	0.5	Y160L-4	15		1230x1009x740
NCB40/0.5	40	0.5	Y200L-6	18.5		1340x1022x650
NCB50/0.5	50	0.5	Y200L-6	18.5		1340x1022x650
NCB60/0.5	60	0.5	Y200-6	22		1340x1022x650
NCB70/0.5	70	0.5	Y225M-6	30		1340x1022x650
NCB80/0.5	80	0.5	Y250M-6	37		1590x1356x840
NCB100/0.5	100	0.5	Y280S-6	45		1590x1356x840
NCB120/0.5	120	0.5	Y280M-6	55		1590x1356x840
