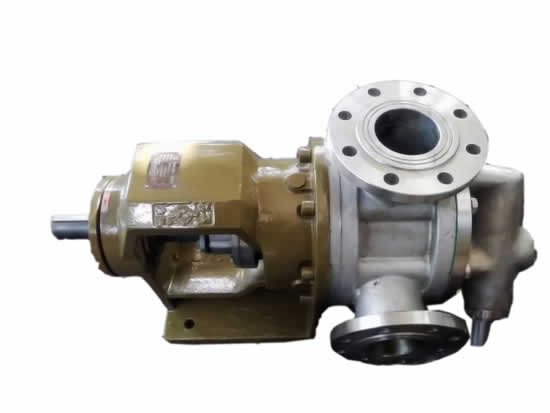

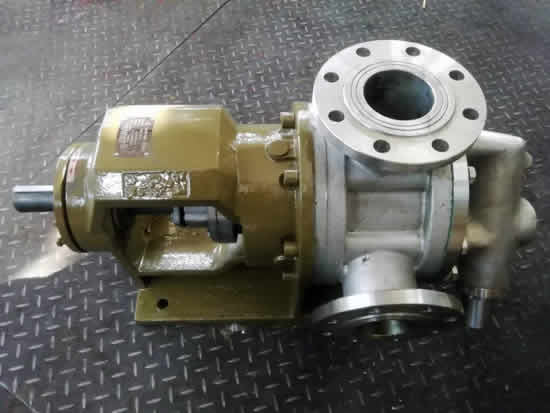

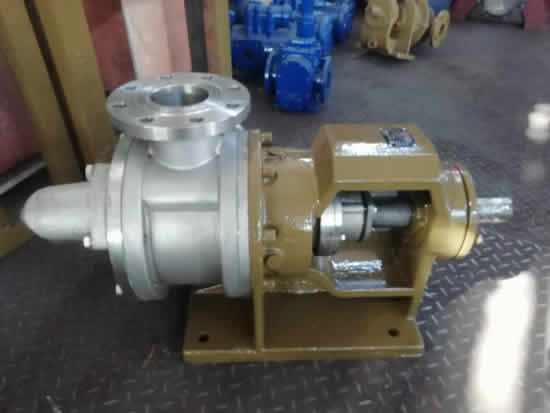

Resin loading pump / Resin transfer pump

NYP type Internal Gear pump is used in pumping. Rotor (Outer Gear) is keyed to drive shaft whereas idler (Inner Gear) is located eccentrically on a pin on the front cover. Both the gears are in mesh and the ports are sealed by a crescent located at the front cover. As the rotor and idler gear un-mesh, an under pressure is created and the liquid enters the new created cavities. Liquid is transported in sealed pockets to the discharge side. The walls of the pump casing and the crescent are creating a seal and separate suction from discharge side. The rotor and idler gear mesh pushing the liquid into the discharge line. Reversing the shaft rotation will reverse the flow through the pump as well.

NYP high Viscous Resin loading pump Belongs to the internal gear pump,Low speed,Suitable for transferring viscous liquids that contain no particles，like resin, asphalt, paint, adhesives,sulfuric acid,dyes, lubricants, polyols, food，polymers.

TECHNICAL DATA :

Port Size : 1” to 8”

Capacities : up to 5000 LPM

Pressure : up to 10 kg/cm²

Speed : 80-1440 RPM

Operating Temperature : up to 300 °C

Viscosity : up to 3, 00,000 cSt

Relief Valve : Integral / Optional

Jacketing : Optional-Cooling / Heating

Shaft Sealing : Gland Packing / Single or Double Mechanical Seal /Lip Seal / Magnetical Sealed – Seal less / Grafoil Rings

Mounting : Bracket / Gear Box (Block Pump) / Foot Mounted / belt pulley

Drive : V- Belt Drive / Gear Box / Geared Motor / Direct Drive /Mechanical Variator / with Built in Speed Reducer

DESIGN FEATURES :

Overhung Design on Shaft

Low NPSH Required

Pump & Rotor Clearances Optimized for Maximum Efficiency

Self-Priming

Back Pull Design

Bi Directional (in most cases)

Insensitive to Viscosity

Low Pulsating Discharge

Excellent for High Viscous Application

Single Adjustable End Clearance

Easy to Maintain

Flexible Design – Application Customized

All Metal Construction – No Contamination

Liquid with poor lubricating properties can be pumped easily

External Bearing enabling ease of access to pump

Can run dry for reasonable amount of time

Slow Speed offers better pumping and longer life

Improve Rotor Profiles for smooth Meshing minimizing Internal Losses and Excellent Suction Capabilities

APPLICATIONS :

Chemical and Pharmaceutical Industry

Food Industry

Chemical Processing Plants

Iron & Steel Industry

Textile, Leather and Paper Industry

Rubber and Plastic Industry

Paint & Ink Industry

Tar and Bitumen Processing Industry

Wood Processing and Furniture Industry

Oil refining and Many More…

MATERIAL OF CONSTRUCTION :

Casing : Cast Iron, Ductile Iron,carbon steel, Stainless Steel

Rotors : Cast Iron & Steel, Stainless Steel

Shaft : Steel, Stainless Steel

Idler Pin : Steel, Hardened Steel, Coated, Stainless Steel

R.V. Parts : Cast Iron, Steel, Stainless Steel

Bush : Bronze, Gun Metal, Sintered Iron, Sintered Bronze, Carbon Graphite

Bracket : Cast Iron, Steel, Fabricated Steel

Model data：

Model	Standard Port Size	Nominal Pump Rating (m³)	Nominal Pump Rating (LPM)	Maximum RPM	Maximum Pressure (PSI)	Maximum Pressure (BAR)
NYP2.3	1"	1.7	28	1440	145	10
NYP7.0	1.5"	3	50	960	145	10
NYP52	2"	12	200	680	145	10
NYP111	3"	28	500	680	145	10
NYP160	4"	40	670	500	145	10
NYP220	5"	50	800	450	145	10
NYP320	5"	60	1000	350	145	10
NYP727	6"	80	1400	280	116	8
NYP1670	8"	150	2500	200	116	8

tags : Resin transfer pump

Previous：Internal gear pump for resin
Next：NYP type Internal gear pump with safety valve
