High Temperature Resistant Centrifugal Pump Installer
new products
  • Heat Transfer Oil Pump - Hot oi

    We're professional Heat Transfer Oil Pump manufacturers and suppliers in China high quality products with competitive price. We warmly welcome you to buy Hot oil circulating pump from our factory...

    read more
latest news

1 inch GRACO diaphragm pump per

1 inch GRACO diaphragm pump perfect replacement Air Operated Diaphragm Pump Model:SKQ-25ASTFF Max Capacity:150LPM, Max pressure:8.4Bar Material Body/Diaphragm/Valve ball/Valve seat: PP/Teflon/PTFE/PTFE Pump Inlet Outlet:1/1 (flange type), A...

Internal gear pump for resin

  • item no.:

    NYP111/52/160/7.0
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Saiken brand NYP internal gear pump are self-priming, Built-in safety valve, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows his talents to transfer high viscosity liquid products. For example: resin and so on,Its unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage, viscosity can be as high as 300000CP.

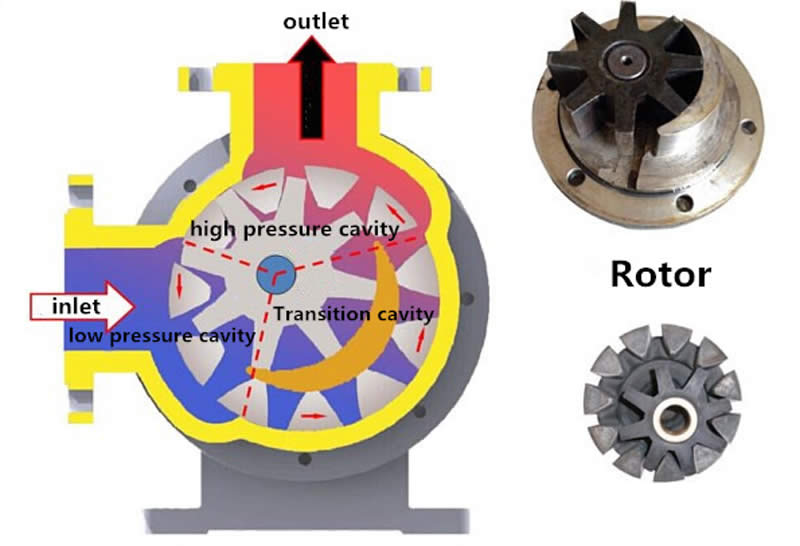

Working principle:


internal gear pump for resin

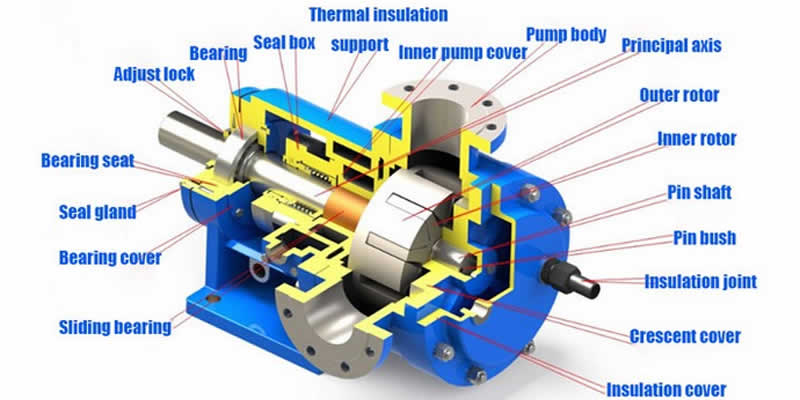

Structure diagram:


Resin transfer pump

Applications:Resin,Biscuit Cream, Caramel, Chocolate, Cocoa Butter, Cocoa Mass, Condensed Milk, Fat, Fondant, Glucose, High-Boiled Sugar Syrup, Jellies,Molasses, Sugar Syrup, Thick Juice, Treacle

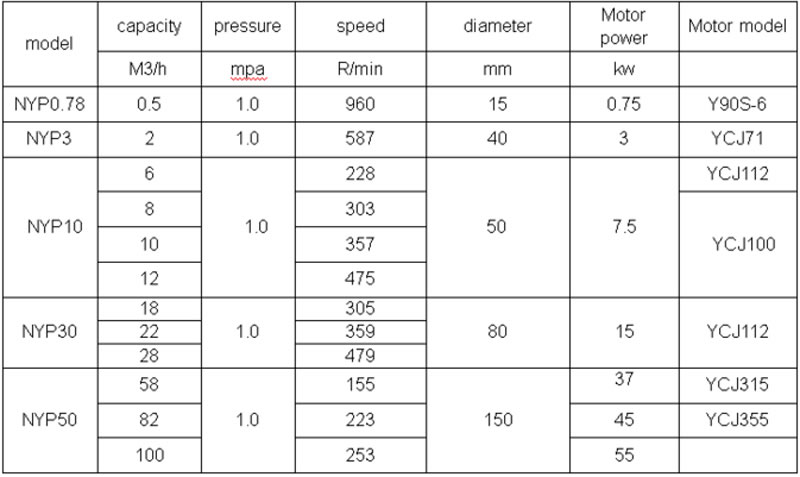

Technical parameters:

NYP internal gear pump
