NYP Internal Gear Pump

  • item no.:

    NYP111/52/160/7.0
  • lead time:

    Customer Date
  • product orgin:

    Botou Saiken Pumps Co.Ltd
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
                                                                                      NYP Internal Gear  Pump

Model:NYP
Flow:0.5-100m³/h.
Max.pressure:1.0Mpa
Temperature:≤200℃
Manufacturer:China Saiken pumps
Viscosity:1.0-300000cst
Pump speed:60-1450r/min
Material:Cast iron,ductile iron,SS304,SS316,SS316L
Medium:Resins, molasses, glue, bitumen......

Since the inception of our company, the Botou Saiken Pumps Co., Ltd in 1998, we emerged as most prominent and leading NYP Internal Gear Pump manufacturer and exporter. The raw materials used in manufacturing of product is of high quality. Our skilled professionals by using latest technologies accomplish the production of Internal Gear Pump. All these products being passed through the highest level of quality check to ensure the 100% accuracy. Apart from this, we are also appreciated by our customers for the manufacturing and exporting the best quality Jacketed Bitumen Pump. The pump is also acknowledged for its sturdy construction, longer operational life, and high material strength.

NYP Internal Gear Pump is a kind of new positive displacement pump, and is designed according to the different fields of petroleum, chemical industry, paint, medicine, foodstuff and so on. It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pumps' materials.

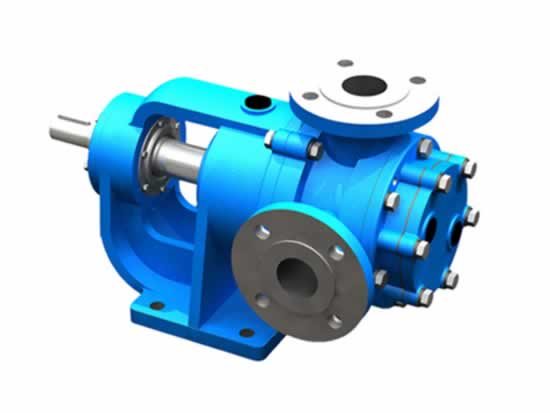

NYP-Internal-Gear-Oil-Pump (1)

1.Work principle:
driving gear (outside rotor)with internal tooth drives the internal rotor and turns in same direction in the full closed pump body.The inlet from the outlet.When it turns,negative pressure formed at the suction port,the liquid inhaled and being take to thr outlet by rotor,then the liquid is wxpelled from th discharge port sa the gears mesh.The transpor-tation of liquid finished.

2.Structure Feature:

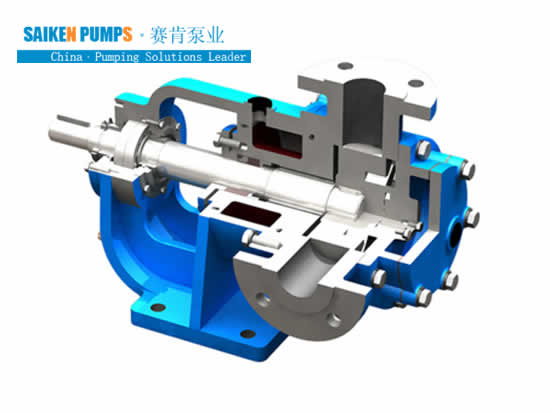

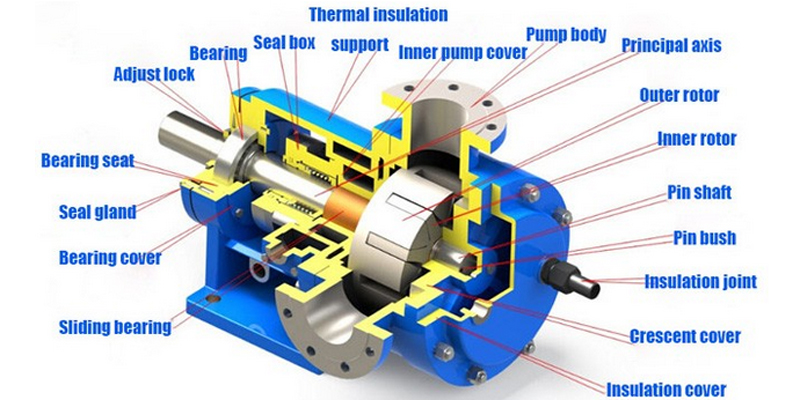

As figure I The pumps are mainly composed of internal rotor,outside rotor,shaft,pump casing,front cover,seal,bearing
etc.

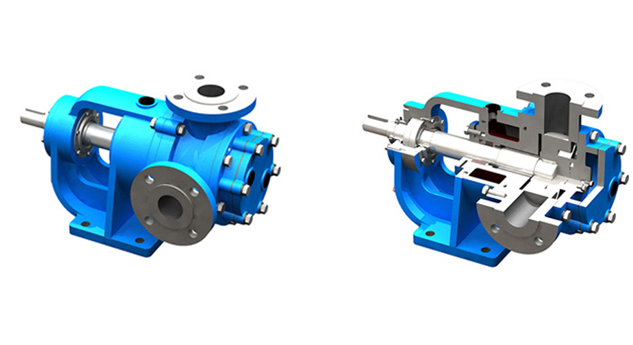

NYP-Internal-Gear-Oil-Pump (1)
NYP-Internal-Gear-Oil-Pump (2)
The pump'seal adopts packing seal or mechanical seal.When the delivered medium is high temperatur ,high visc or strong corrosion,packing seal should be adopted.
When the delivered medium is easy crystallinic ,we can designthe heat preservation jacket in pump casing and front cover in order to melt the medium with steam wen working.The pump can be also fitted with the safty valve. The pump set is composed of the pump,motor and baseplate.
The driving way is belt wheel driving or coupling driwing.

3.ADVANTAGES:
1)Steady edlivery without pulsation ,little vibration and noise.
2)Outstanding self-priming abitity.
3)The pump can deliver the varied corrosion mediums if the proper material of poarts selected.In addition ,the working temperature can reach 200℃.
4)The same rotary direction of internal rotor and outside rotor results in little wear and long loperation life .
5)The pump's flow capacity can be changed through adjusting the speed.
6)It's specilly suited to deliver high viscosity medium.

4. MODEL EXPLANATIONS:

NYP
7.0
A
Internal Gear Pump
Displacement L/100r
Code of Design Improverment
