NYP type Internal gear pump with safety valve

$NYP7.0 1.5\$ $NYP30 3\$ $NYP320 5\$

NYP type Internal gear pump with safety valve

item no.:
NYP52 NYP111 NYP160 NYP220
lead time:
Customer Date
product orgin:
Internal gear pump supplier
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

China SAIKEN NYP type internal gear pump use for High viscosity liquids, such as: glue, molasses, asphalt, adhesives, dyes, coatings, lubricants, high viscosity gear oil, epoxy resin,polyurethane PU,etc. The main models are NYP7.0/1.5 inch NYP52A / (nyp10) 2" NYP111A / NYP30 3" NYP160 4" NYP220 5"NYP320 5" NYP727 6" NYP1670 8".

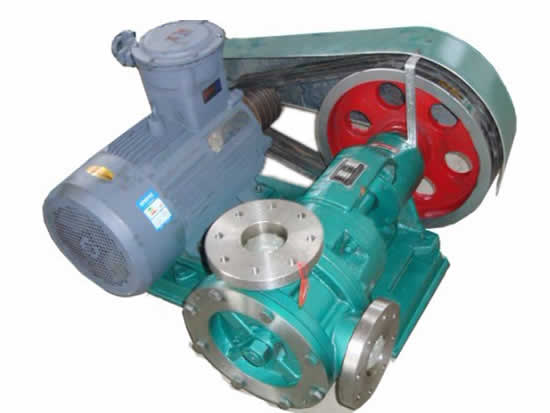

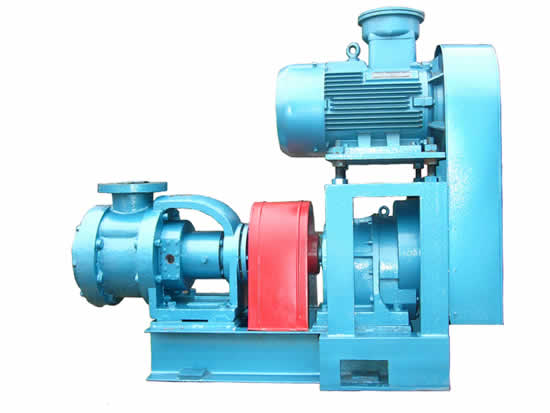

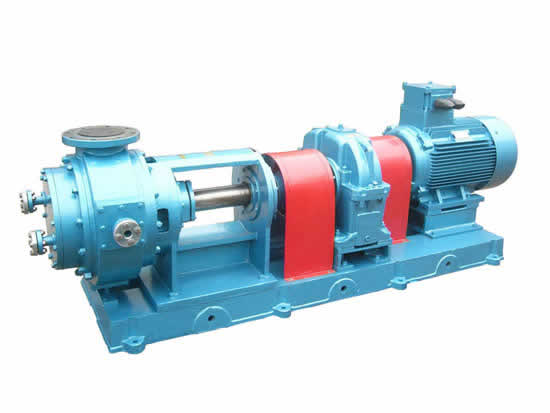

Stainless steel NYP internal gear pump can transfer food liquid.This gear pump with gearmotor,Low speed,Built-in safety valve,long service life.

NYP high Viscous Fluid Pump & Rotary Lobe Pump

Rotary Vane Pump, Positive Displacement Pump, Rotor Pump, Industrial Pump for Viscosity Fluids

Technical Parameters of Viscous Fluid Pump

Model: NYP0.78/7.0/52/111/160/727/NYP1670

Rotational speed: 85r/min-1450r/min

Swept volume: 0.78L/100rev-1670L/100r

Discharge pressure: 0.4Mpa/0.6/0.8/1.0Mpa

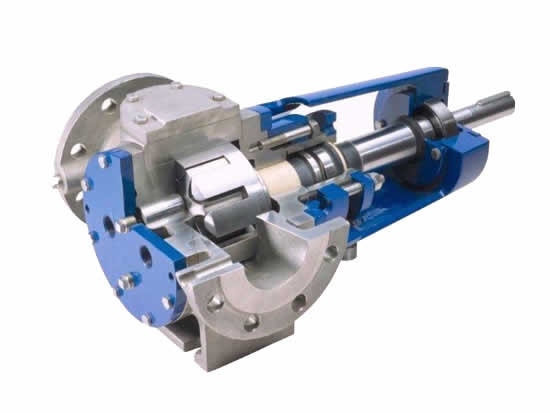

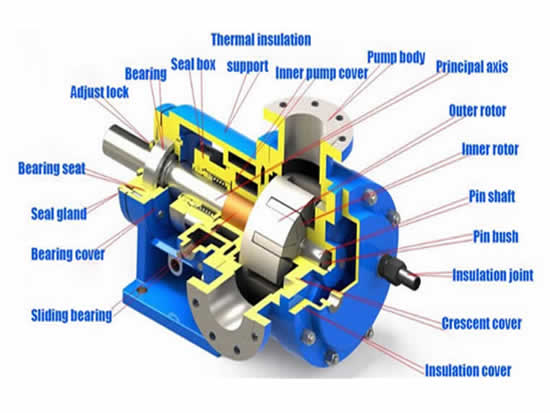

1)The same rotary direction of internal rotor and outside rotor results in little wear and long loperation life .

2)Outstanding self-priming abitity.

3)It’s specilly suited to deliver high visc medium.

4)Steady edlivery without pulsation ,little vibration and noise.

5)The pump’s flow capacity can be changed through adjusting the speed.

6)The pump can deliver the varied corrosion mediums if the proper material of poarts selected.In addition ,the working temperature can reach 200℃.

Attractive Advantages of NYP type internal gear pump:

The viscous fluid pump body and cover are both good quality and highly precise thanks to modern process and advanced precise-casting techniques.

We provide two kinds of sealing design. One is mechanical sealing, noted for zero leakage and suitable for lubricant media. The other type is packing sealing whose attractive characteristics include good elasticity, self-lubrication, abrasion resistance and high chemical stability. Clients can choose according to working requirements.

NYP type internal gear pump flow and motor data:

Model	cst	Speed r/min	Flow m3/h	Head Mpa	caliber mm	Power KW
NYP-0.78	2000/600	910/1390	0.4/0.6	0.8	15	0.75
NYP-2.3	2000/600	910/1390	1/2	0.8	25	1.1/1.5
NYP-3.6	600/2000	940/640	2/1.5	0.8	40	1.5
NYP-7.0	2000/6000	960/500-640	4/2.3	0.8	40	2.2/3
NYP-24	2000/6000	357-475/300	5-6.5/4	0.8	50	5.5
NYP-50	2000/6000	357-475/300	10-14/9	0.8	50	7.5/5.5
NYP-80	2000/6000	315-417/228	15-20/10	0.8	80	15/11
NYP-111	2000/6000	315-417/228	20-28/15	0.8	80	18.5/15
NYP-160	2000/6000	320-420/320	30-40/30	0.8	100	18.5
NYP-220	2000/6000	220-285/160	30-40/20	0.8	100	37/18.5
NYP-320	2000/6000	220-285/160	40-50/30	0.8	100	37/22
NYP-650	2000/6000	160-240/120	60-90/45	0.8	125	55/37
NYP-727	2000/6000	160-240/120	70-100/50	0.8	150	55/37
NYP-1670	2000	160	160	0.8	200	100
NYP-1670	6000	200	200	0.8	200	132
