High Temperature Resistant Centrifugal Pump Installer

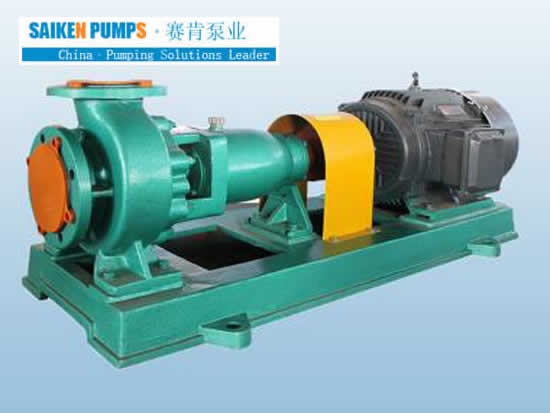

IHF-G High Temperature plastics Lining Pump

  • item no.:

    IHF-G-50-32-160
  • lead time:

    Customer Date
  • product orgin:

    BOTOU SAIKEN PUMPS CO.LTD
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
IHF-G High Temperature plastics Lining Pump main parameters:
Manufacturer: China Botou Saiken Pumps
Flow: 3.6m³/h-200m³/h
Head: 15m-80m
Power: 1.1kw-55kw
MOC:PFA

IHF-G High Temperature plastics Lining Pump is characterized by high temperature resistance, excellent chemical corrosion resistance and very low friction coefficient, suitable for acid and base transportation at high temperature.
Applicable working condition: 100℃-170℃ Transportation of Acid and Alkali in High temperature Environment. Our company can according to actual working condition, choose different configuration, provide an accurate solution.

IHF-G series high temperature fluoroplastic pump is a single-stage single-suction cantilever centrifugal pump. The pump body is made of metal,shell lining fusible polytetrafluoroethylene (PFA), fluoroceramic alloy and other corrosion-resistant non-metallic materials, impeller, The pump cover is covered with a metal insert to encapsulate fusible polytetrafluoroethylene (PFA) and fluoroceramic alloy.

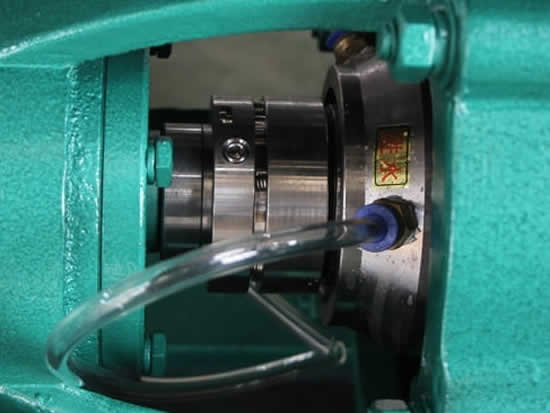

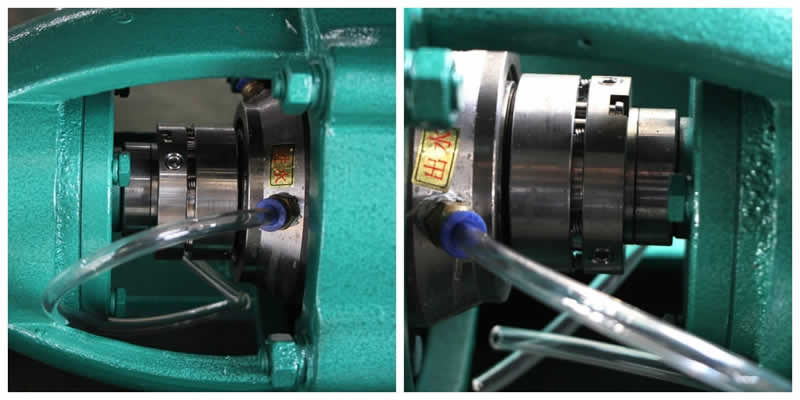

IHF-G high temperature fluoroplastic centrifugal pump is designed according to IS02858 international standard. The mechanical seal adopts built-in water-cooled double-end mechanical seal.

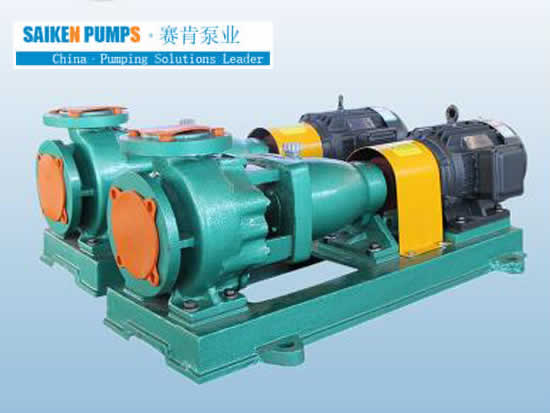

IHF-G High Temperature plastics Lining Pump


IHF-G high temperature fluoroplastic lining pump is widely used in the transportation of strong corrosive medium containing less than 15% solid, saturated solution of easy-to-knot, strong alkali and other materials. It is suitable for continuous operation at 150 °C working temperature. Adapt to the industry: acid-based alkali, saturated electrolyte in non-ferrous metal smelting, desulfurization and dust removal in the environmental protection industry, pickling acid regeneration in the steel industry.
