High Temperature Resistant Centrifugal Pump Installer

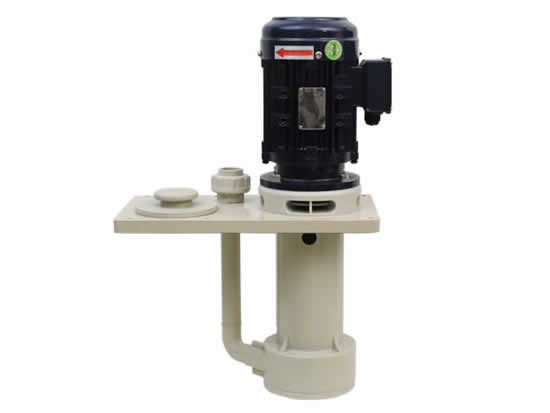

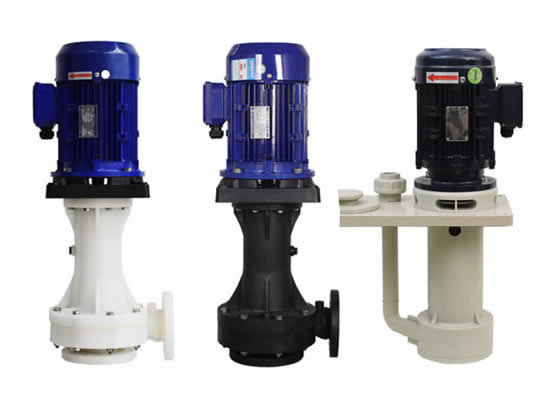

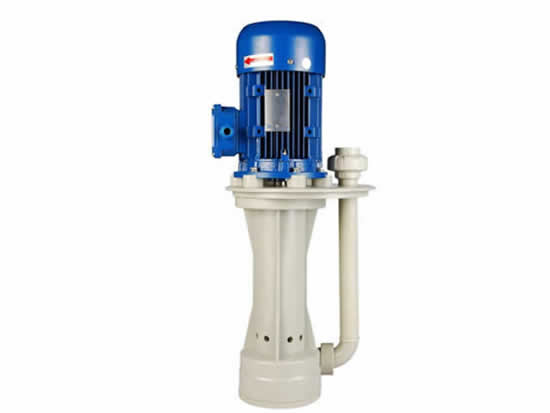

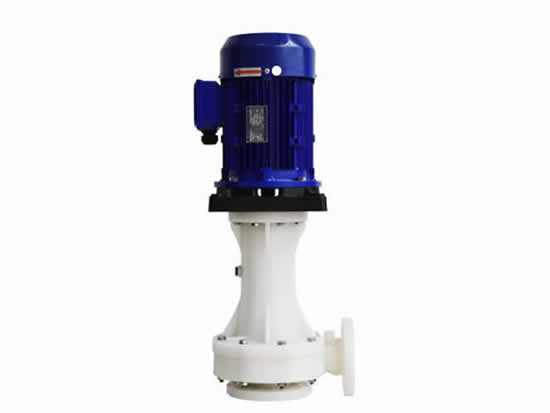

PP Plastic Vertical Pump

  • item no.:

    DT TYPE
  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
PP Plastic Vertical Pump, the pump's body adopt FRPP, PVDF material to getting with high temperature resistance and high corrosion resistance.

1. Product Characteristic:
PP Plastic Vertical Pump, the pump's body adopt GFRPP, PVDF material to getting with high temperature resistance and high corrosion resistance.

Dry liquid seal design (1-25HP), to protect motor and bearing to be erosion by the chemical and to prolong its working life.

The pump design to work without water, it is available for idle running and avoid to any damage.

2. Model Indication:

DT- 50- VK- 5- 6-  V-  F
①  ②   ③   ④ ⑤  ⑥  ⑦

  Product Name PP Plastic Vertical Pump
1. Type No. DT
2. Caliber 40-1-1/2" 50-2" 65-2-1/2" 80-3" 100-4“
3. Proportion VK-1.1 VP-1.4
4. Horse power 3-3HP 5-5HP 7.5-7.5HP 10-10HP 15-15HP
5. Frequency 5-50HZ 6-60HZ
6. O Ring material V-VITON (FKM) E-EPDM N-NBR
7. Pump material F-FRPP K-PVDF

3. specification:


Model

Curve
Size
(mm)


Power(HP)

Flow(LPM)


Head(m)

Total Flow
(m)

Total Head
(m)

Weight
(Kg)
50/60hz Inlet/outlet 50/60hz 50hz/60hz 50/60hz 50/60hz
DT-40VK-1 a / A 50/40 1 175/120 6/8 250/200 11/12 29
DT-40VK-2 b / B 50/40 2 190/300 12/10 300/370 16/21 38
DT-40VK-3 c / C 50/40 3 270/350 12/14 375/480 20/20 41
DT-50VK-3 d / D 65/50 3 330/300 12/15 460/500 20/22 41
DT-50VK-5 e / E 65/50 5 470/550 14/15 650/710 24/29 55
DT-65VK-5 f / F 80/65 5 500/650 14/15 680/800 24/29 55
DT-65VK-7.5 g / G 80/65 7.5 590/780 16/18 900/930 26/36 95
DT-65VK-10 h / H 80/65 10 590/890 18/20 950/1050 28/39 106
DT-100VK-15 i / I 100/100 15 1000/1200 27/25.5 1760/1760 39/44 155
DT-50VK-3 j / J 65/50 3 290/300 12/12 350/430 20/19 41
DT-50VK-5 k / K 65/50 5 400/430 14/15 470/490 23/27 55
DT-65VK-7.5 m / M 80/65 7.5 450/600 18/16 785/790 26/29 95
DT-65VK-10 n / N 80/65 10 570/800 18/18 950/950 26/37 106
DT-100VK-10 q / Q 100/100 10 800/950 20/20 800/950 25/31 106
DT-100VK-15 o / O 100/100 15 800/1000 29/29 1680/1730 38/43 155
