High Temperature Resistant Centrifugal Pump Installer

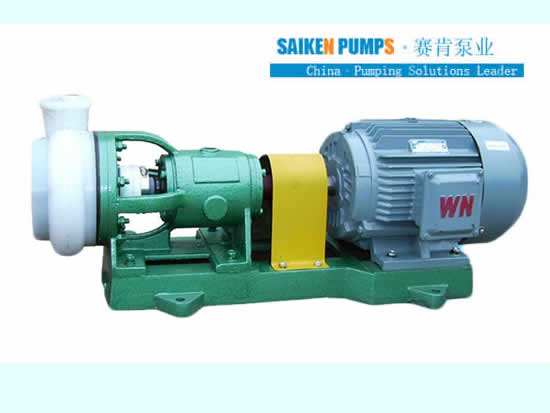

FSB plastic Centrifugal Pump

  • item no.:

    50fsb-30l
  • lead time:

    Customer Date
  • product orgin:

    BOTOU SAIKEN PUMPS CO.LTD
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
FSB fluoroplastic alloy centrifugal pump overflowing parts are all made of fluoroplastic alloy, fully plastic pump body, cantilever structure, can not bear the weight of the pipeline, it is more portable, maintenance and labor saving.Stents and short the series is divided into two kinds of structure forms(FSB-D,FSB-L), reasonable design, by the pool structure, simple operation, convenient maintenance, etc.

China botou saiken pumps fluorine plastic centrifugal pump main parameters:
Manufacturer:China botou saiken pumps
Pump Diameter: 25mm - 100mm
Working Temperature: -20°C-180°C
Flow Capacity Range: 3m3/h- 100m3/h
Pump Head Range: 15m-50m
Materials Range: FEP(F46), UHMW-PE
Designed Standard: GB/T 5662, ISO2858, EN733 / DIN24255
Applicable medium: Acids, bases, salts, strong oxidants of any concentration.
Characteristics: Plastic shell, long life of machine seal, portable equipment.

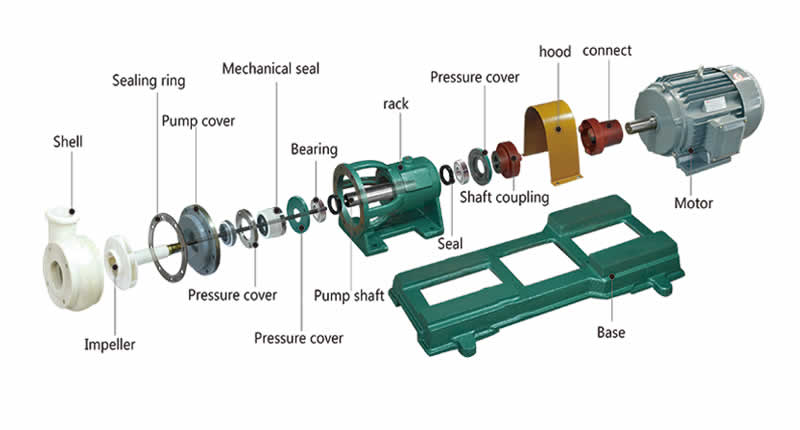

FSB-L fluoroplastic alloy centrifugal pump assembly drawing:

FSB fluoroplastic alloy centrifugal pump

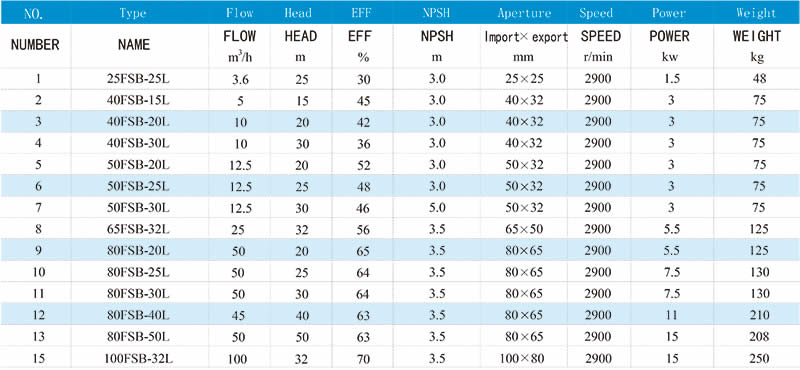

FSB-L fluoroplastic alloy centrifugal pump Specification:

FSB fluoroplastic alloy centrifugal pump

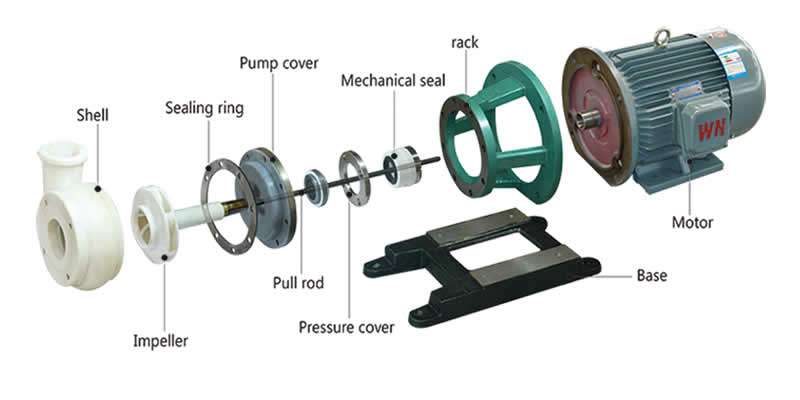

FSB-D fluoroplastic alloy centrifugal pump assembly drawing:

FSB-D fluoroplastic alloy centrifugal pump

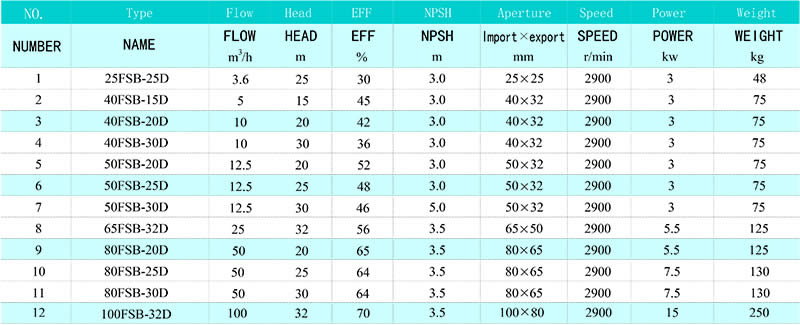

FSB-D fluoroplastic alloy centrifugal pump Specification:

 FSB-D fluoroplastic alloy centrifugal pump
