High Temperature Resistant Centrifugal Pump Installer

PVDF FRPP Vertical Chemical Pump 1-15HP

  • item no.:

  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

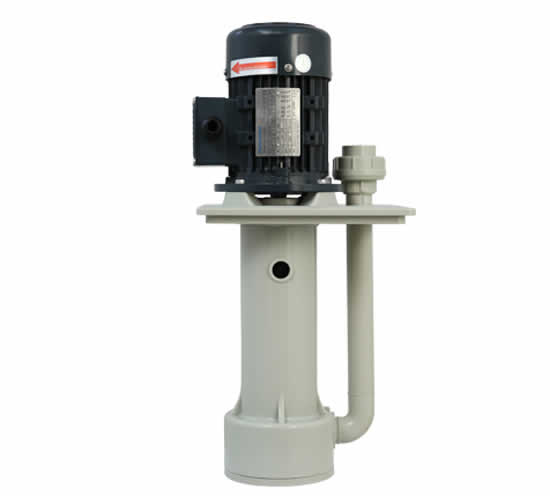

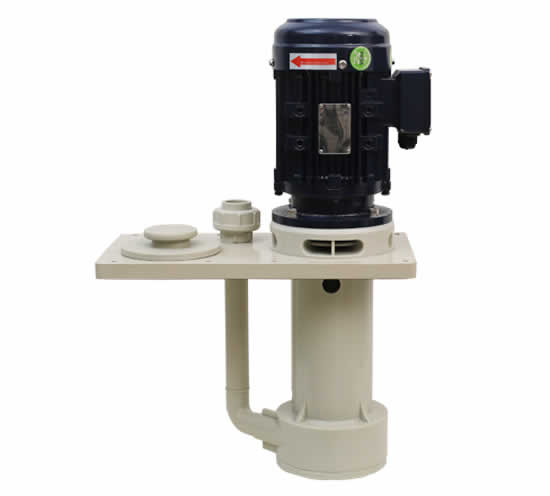

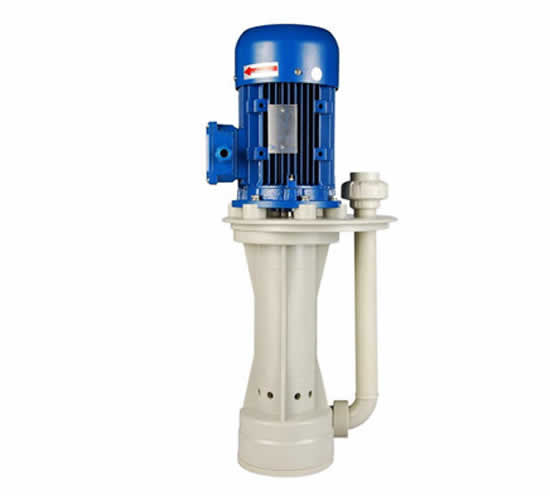

PVDF FRPP Vertical Chemical Pump

1. It can be used idling and will not be damaged by idling
2. All wetted parts of the pump are made of corrosion-resistant FRPP, CFRPP, PVDF materials, depending on the chemical liquid to be transported
3. The shaft seal design can prevent the chemical gas from damaging the motor bearing, and the free chemical gas is smoothly discharged through the pores on the supporting plate
4. Closed impeller, its installation has nothing to do with steering
5. A protective sleeve is installed outside the pump shaft
6. Reinforced bearings can resist axial and radial stress
7. Double-layer anti-corrosion spraying

Driver: Three-phase motor, 0.75-11KW

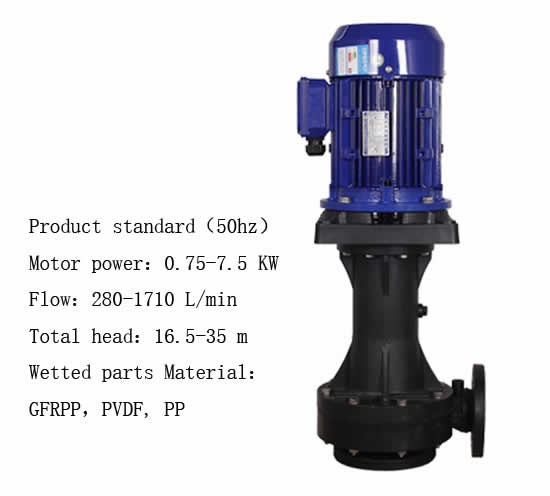

product standard(50hz)
motor power:0.75-7.5 KW
full flow:280-1710 L/min
total head:16.5-35 m
Wetted parts Material:FRPP,PVDF, PP
Suitable for temperature:0~75℃(FRPP),0~90℃(PVDF)
Product alias: corrosion resistant vertical pump, acid and alkali corrosion resistant pump, coating vertical pump, tank outside the vertical pump, waste gas tower dedicated vertical pump, engineering plastic vertical pump


Type SG Inlet&outlet
(mm)
HP 50HZ 60HZ weight(kg)
phase HP   Head(m) Flow(l/min)   Head(m) Flow(l/min)
DT-40VK-1 1.1 50x40 3 1   16.5 280   13 250 29
DT-40VK-2 1.1 50x40 3 2   20 400   23 320 38
DT-40VK-3 1.1 50x40 3 3   24 450   28.5 390 41
DT-50VK-3 1.1 65x50 3 3   23 530   23 520 41
DT-50VK-5 1.1 65x50 3 5   31 580   36 560 55
DT-65VK-5 1.1 80x65 3 5   29 600   29 740 55
DT-65VK-7.5 1.1 80x65 3 7.5   32 780   37 960 95
DT-65VK-10 1.1 80x65 3 10   32 800   39.5 1000 106
DT-40VP-3 1.4 50x40 3 3   22 400   23 340 41
DT-50VP-3 1.4 65x50 3 3   19 500   16.5 415 41
DT-50VP-5 1.4 65x50 3 5   28 560   32.5 500 55
DT-65VP-5 1.4 80x65 3 5   27 580   25 600 55
DT-65VP-7.5 1.4 80x65 3 7.5   31 750   35 750 95
DT-65VP-10 1.4 80x65 3 10   31 780   38 760 106
DT-100VK-15 1.1 100x100 3 15   35 1710   35 1950 115
