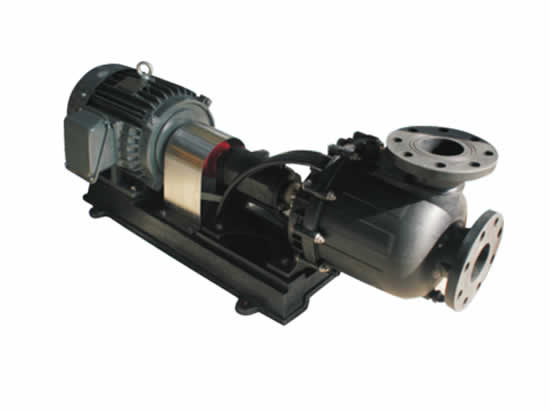

Self-Priming acid pump

item no.:
lead time:
Customer Date
product orgin:
china Chemical Pump supplier
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

PVDF FRPP Self-Priming acid pump Model specification:

SKL-40-3- 2- N-B-H-C-C-H- 5

1 2 3 4 5 6 7 8 9 10 11

Model:SKL/SKPL

Material:SKL-FRPP SKLP-PVDF

In-outlet: 40-40*40 50-50*50 75-75*75

Power: 01-1HP 02-2HP 03-3HP 05-5HP 07-7.5HP 10-10HP

Pole: 2：2P 4:4P

Rubber: N:NBR E:EPDM V:VITON

Check-valve:B:NON CHECK-VALVE(无舌单向阀) A：WITH CHECK-VALVE(有舌单向阀)

Head: L:LOW HEAD(低扬程) H：HING HEAD(高扬程)

Stationary Ring: C-CERMIC S-SIC

Rotational Ring:C:CARBON S:SIC

Spring:H-HASTELLOY-C S-SUS316

Frequency: 5：50Hz 6：60Hz

Product Features:

·Pump body using native PP (listed companies) / PVDF (import French). Significantly impoved the corrosion resistance and structural strength.

·Self-absorption cylinder and pump body the integrated together, so pump without welds, without leakage.

·Middle cover is integrated. Adopt strong gluten solid.

·High efficiency impeller designs and an integrated, more inproves the pump efficiecy and long distance life.

·Shaft seal material can choose different material with different environment.

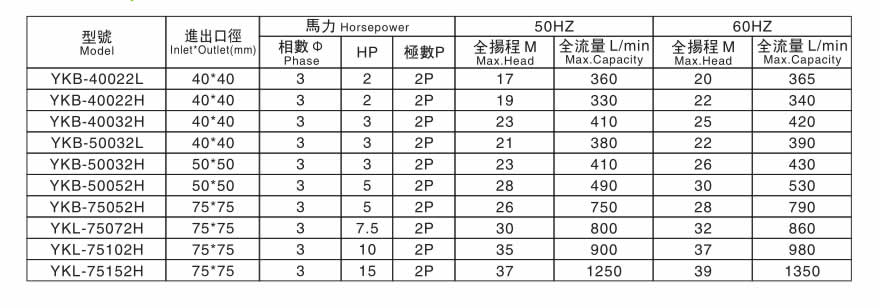

Specifications:

tags :

Previous：PVDF FRPP self-priming Chemical pump
Next：PVDF FRPP Vertical Chemical Pump 1-15HP
