MP plastic magnetic circulation pump MP plastic magnetic circulation pump MP plastic magnetic circulation pump MPH-422CV5-D MPH-423CV5-D magnetic circulation pump

MP plastic magnetic circulation pump

  • item no.:

    MP100RMP120R

  • lead time:

    Customer Date

  • product orgin:

    Botou Saiken Pumps Co. Ltd

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description

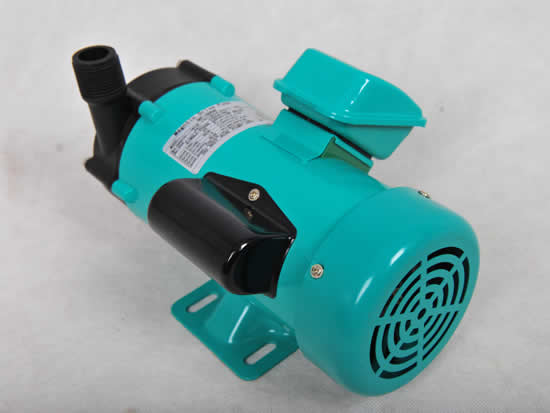

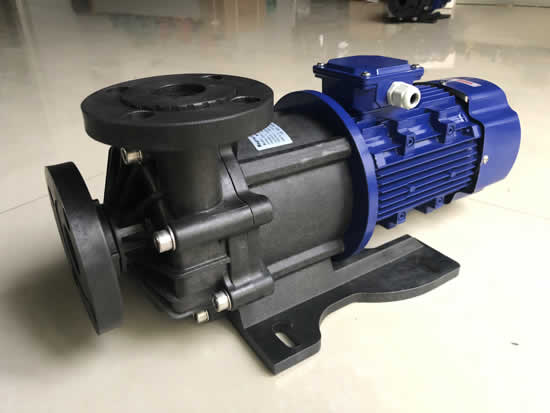

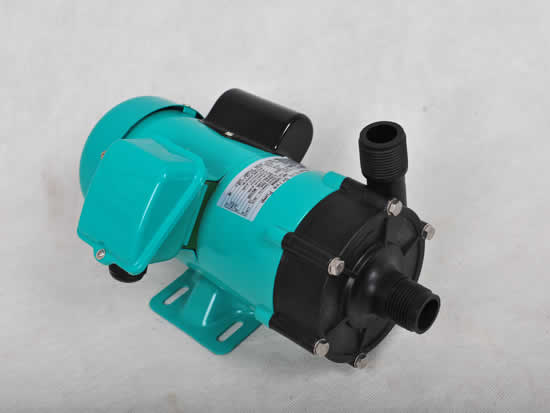

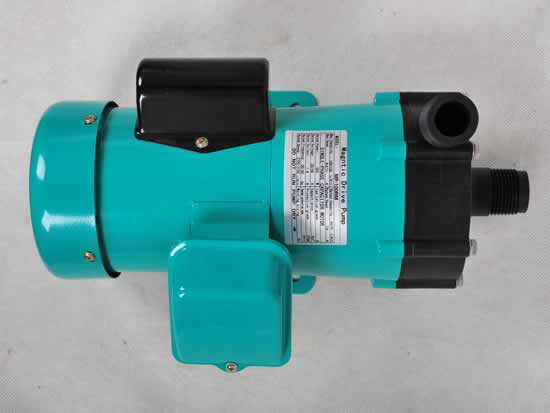

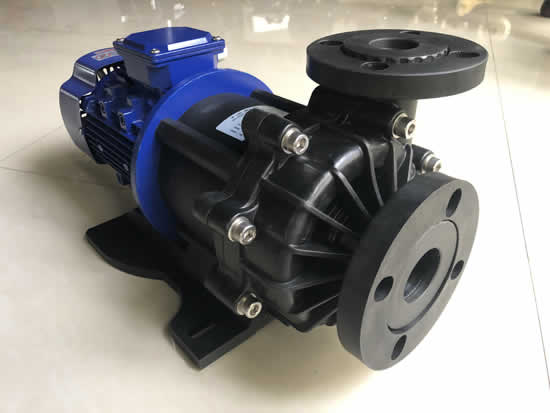

MP Magnetic drive circulation pump is a micro engineering plastic full-sealed pump. Adopting advanced magnetic coupling technology, MP has no leakage and even no shaft seal. This solves the problem of leakage of normal pump.

MP by has different material of PP, PVDF, etc. Pump is widely used in all industries works as booster pump, chemical pump, lab pump. Structure is compact, volume is very small, also it is light and easy to portable.

Product Features
·Using primary raw materials, improve product corrosion resistance and structural strength.
·Variety of inter face, we have flange, union, intubation, maximum to meet customer demand.
·Modular product and assembly, so the structure is simple, secure and easy to maintain.

Specification:
Flow Range: 8 ~ 330L/min
Head Range: 1 ~ 18m
Main materials: GFRPP
Power range: 3 ~ 2200W
Liquid temperature range: 0 ~ 80 degree

Model                                                  Tube Connection Thread Connection MaxFlow
(L/min) 		 MaxHead
  (m)		 Standard S. G Motor
Inlet(mm) Outlet(mm) Inlet(inch) Outlet(mm) 50Hz/60Hz 50Hz/60Hz Flow(L/min)50Hz/60Hz    Head(m)
50Hz/60Hz		   Power(w)
50Hz/60Hz		 Phase
MP-6R 14 14 - - 8/9 1/1.4 2.8/5 0.8 < 1.2 3 1
MP-6RZ 14 14 - - 5.5/6 2.1/2.7 3.2/4.5 0.8 < 1.1 3 1
MP-10R 14 14 - - 11/12 1.5/2.1 5/8 1 < 1.1 6 1
MP-10RN 14 14 - - 11/12 1.5/2.1 5/8 1 < 1.1 6 1
MP-15R 16 16 - - 16/19 2.7/3.4 8/12 1.5 < 1.3 10 1
MP-15RN 16 16 - - 16/19 2.7/3.4 8/12 1.5 < 1.3 10 1
MP-15RM - - 3/4 13 16/19 2.4/3.4 8/12 1.5 < 1.3 10 1
MP-20R 18 18 - - 27/32 3.1/4.3 17/22 2 < 1.2 20 1
MP-20RM - - 3/4 16 27/32 3.1/4.3 17/22 2 < 1.2 20 1
MP-20RX 26 26 - - 46/52 1.8/2.5 30/40 1 < 1.3 20 1
MP-20RXM - - 1 20 46/52 1.8/2.5 30/40 1 < 1.3 20 1
MP-2RZ 18 18 - - 10/11 4.6/6.9 7/10 4 < 1.1 20 1
MP-20RZM - - 3/4 13 10/11 4.6/6.9 7/10 4 < 1.1 20 1
MP-30R 20 20 - - 33/38 3.8/5.4 16/25 2.5 < 1.3 45 1
MP-30RM - - 3/4 16 33/38 3.8/5.4 16/25 2.5 < 1.3 45 1
MP-30RX 26 26 - - 62/72 2.9/4.1 32/46 2 < 1.1 45 1
MP-30RXM - - 1 20 62/72 2.9/4.1 32/46 2 < 1.1 45 1
MP-30RZ 18 18 - - 15/17 8/11 10/14 6 < 1.1 45 1
MP-30RZM - - 3/4 13 15/17 8/11 10/14 6 < 1.1 45 1
MP-40R 20 20 - - 45/52 4.6/6.5 22/34 4 < 1.1 65 1
MP-40RM - - 3/4 16 45/52 4.6/6.5 22/34 4 < 1.1 65 1
MP-40RX 26 26 - - 75/85 3.3/4.7 47/65 2 < 1.1 65 1
MP-40RXM - - 1 20 75/85 3.3/4.7 47/65 2 < 1.1 65 1
MP-55R 26 26 - - 60/70 5.6/8.2 30/45 4 < 1.2 90 1or3
MP-55RM - - 1 20 60/70 5.6/8.2 30/45 4 < 1.2 90 1or3
MP-55RZ 26 26 - - 25/28 10/14 15/22 8 < 1.1 90 1or3
MP-55RZM - - 1 20 25/28 10/14 15/22 8 < 1.1 90 1or3
MP-70R 26 26 - - 86/97 6.7/9.7 50/72 4 < 1.1 150/180 1or3
MP-70RM - - 1 20 86/97 6.7/9.7 50/72 4 < 1.1 150/180 1or3
MP-100R 26 26 - - 120/130 8.6/11.6 60/70 7/9 < 1.3 250/265 1or3
MP-100RM - - 1 20 120/130 8.6/11.6 60/70 7/9 < 1.3 250/265 1or3
MP-100RX - - 1 1/4 32 170 9.0 100 5.0 < 1.3 250 1or3
MP-120R - - 1 1/2 36 220 10.5 140 6.0 < 1.3 370 1or3
MP-120RT - - 2 1/4 48 220 10.5 140 6.0 < 1.3 370 1or3
MPH-400CV5-D - - 1 1/2 36 260 12.5 150 8.5 < 1.3 370 3
MPH-401CV5-D - - 1 1/2 36 330 18 200 12 < 1.3 750 3
MPH-422CV5-D - - 2 1 1/2 300 21 200 18.5 < 1.3 1500 1or3
MPH-423CV5-D - - 2 1 1/2 360 22 300 20.5 < 1.3 2200
