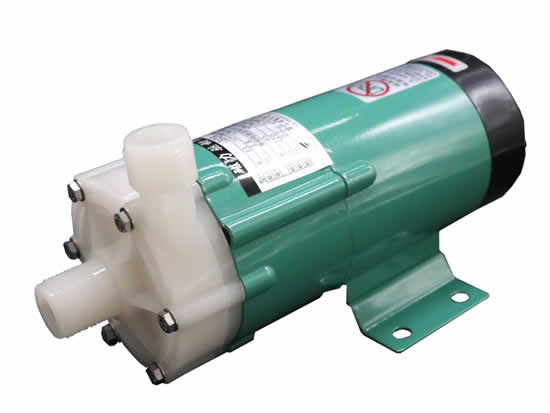

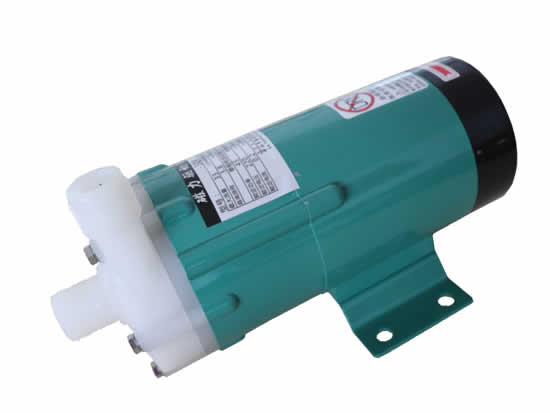

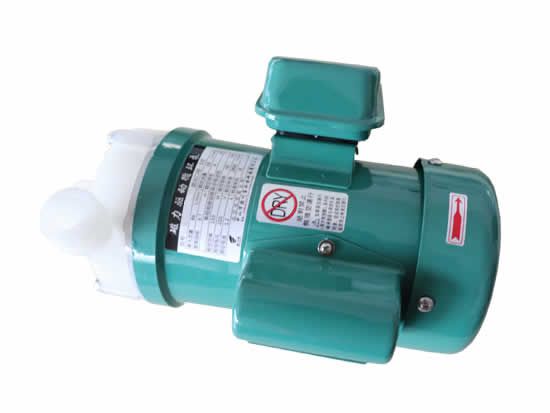

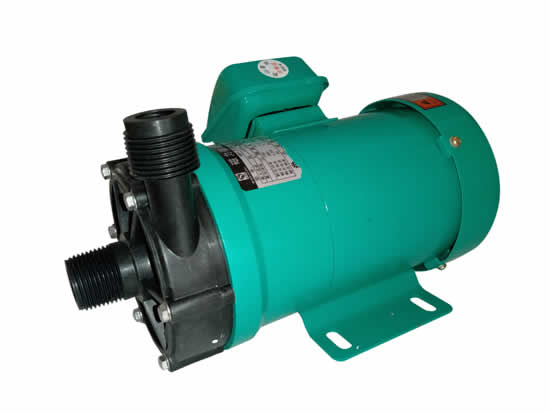

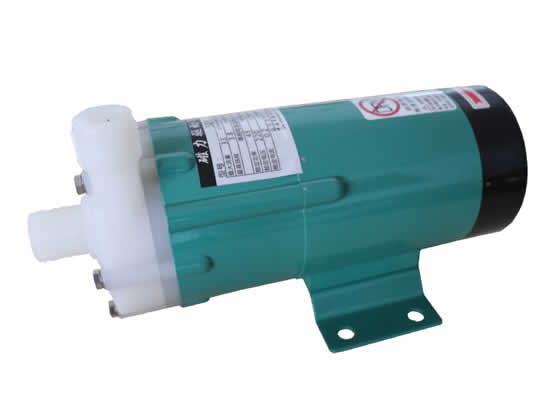

GFRPP PVDF Magnetic Drive Pump PVDF-12

  • item no.:

    PVDF-12
  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
GFRPP PVDF Magnetic Drive Pump PVDF-12
Polypropylene Magnetic Drive Pump

● Max Flow – 12 Liter Per Minute, 720 LPH.
● Max Head – 2 Meter
● Pressure KG/CM2 – 0.2
● Inlet/Outlet – 14mm x 14mm
● End Connection – Nozzle Type
● Max Temperature 0~75℃ (GFRPP), 0~90℃(PVDF)
● Motor Power – 0.008 HP/ 0.6W
● Motor Specification – 1 Phase 2800 RPM 50Hz/60hz
● Casing, Back Plate & Impeller – Polypropylene/GFRPP/ PVDF
● Shaft – Ceramic/SIC
● Sealing Arrangement – Sealless Pumps

Polypropylene Magnetic Drive Pump
Polypropylene Magnetic drive Pumps have become a standard for applications requiring corrosion resistant pumps. Our PP magnetic drive pumps offer a wide range of capabilities from compact configurations to large chemical and Acid process pump series. Polypropylene mag drive sealless pump capabilities is unmatched in the industry making it a leader in Industrial Pumps Technology.
This china saiken pumps made centrifugal Sealless pump is ideal for chemical recirculation and chemical transfer. The Series of Numatic Pumps has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals.
“Magnetic Drive ” refers to the coupling between the wet end of the pump and the motor. In “direct drive” impeller of the pump is attached to shaft motor and this design depends on shaft Mechanical seal. In a magnetic drive sealless pump, the wet end and motor are two separate contained parts connected to the motor bracket. At the end of the motor shaft, a drive magnet is attached which rotates around the rear housing causing the impeller to spin fixed upon another magnet. It is the attraction of the drive magnet and impeller magnet which allows the full torque of the motor to run the pump. Without a shaft seal, the danger of leakage commonly associated with a shaft seal is eliminated. Furthermore, the maintenance cost is reduced because no time or money is spent on maintaining the shaft seal.

GFRPP PVDF Magnetic Drive Pump data table:


Type

In-outlet
(inch)

power
                    50HZ                         60HZ
  Weight
    (kg)
     Max.
 head(m)
Max Flow
   LPM
     Max   head(m) Max Flow
   LPM
  PVDF-10R

 14*14      6       1.5     11      2.1    12       3
  PVDF-15R(M)

 14*14     10       2.7     16      3.4    19        3
  PVDF-20R(M)

   3/4”     20       3.1     27      4.3    32     3.73
  PVDF-30R(M)

   3/4”     45       3.5    30      5    37       5
  PVDF-40R(M)

   3/4”     65       4.2    43      6.3    50         5
  PVDF-55R(M)

    1”    120       5.6    60      8.2    70       9
  PVDF-70R(M)

    1”    180       10    90      12    110      9
  PVDF-100R(M)

    1”    250      12.5   120      14    120     10
