Self-priming Magnetic Drive Pump

item no.:
TMX
lead time:
Customer Date
product orgin:
CHINA SAIKEN PUMPS
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

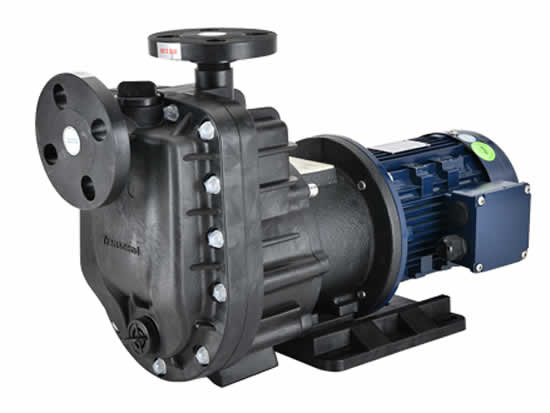

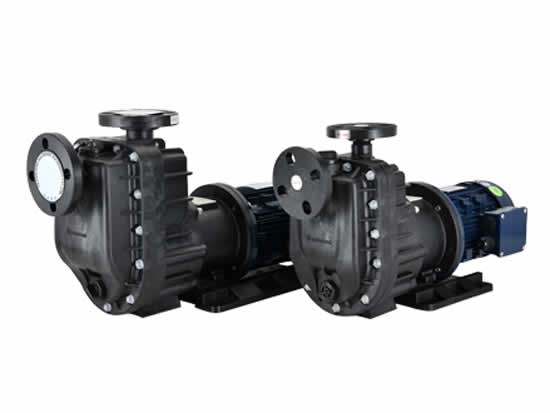

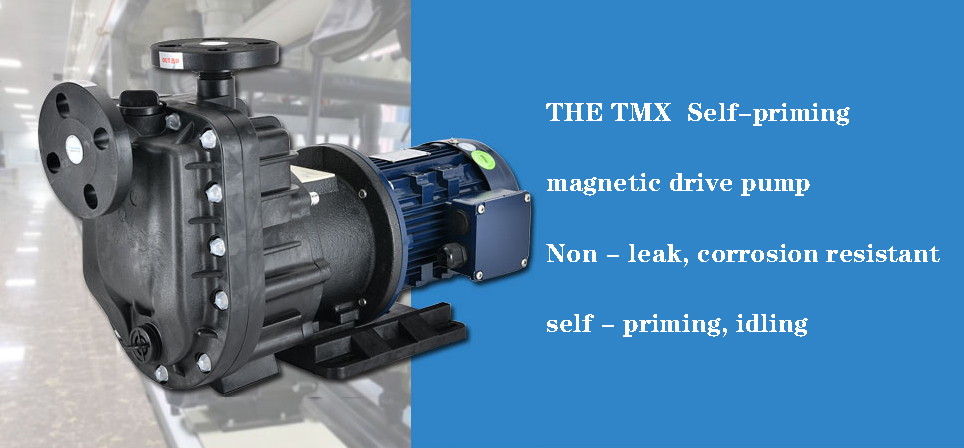

The TMX horizontal self-priming magnetic drive pump made from reinforced plastic.

Our original self-radiation structure (Patented) enhances resistance to dry running, cavitation,

and closed-discharge operation.

In addition, the use of standard motors extends the range of application.

Non - leak, corrosion - resistant, self - priming, idling

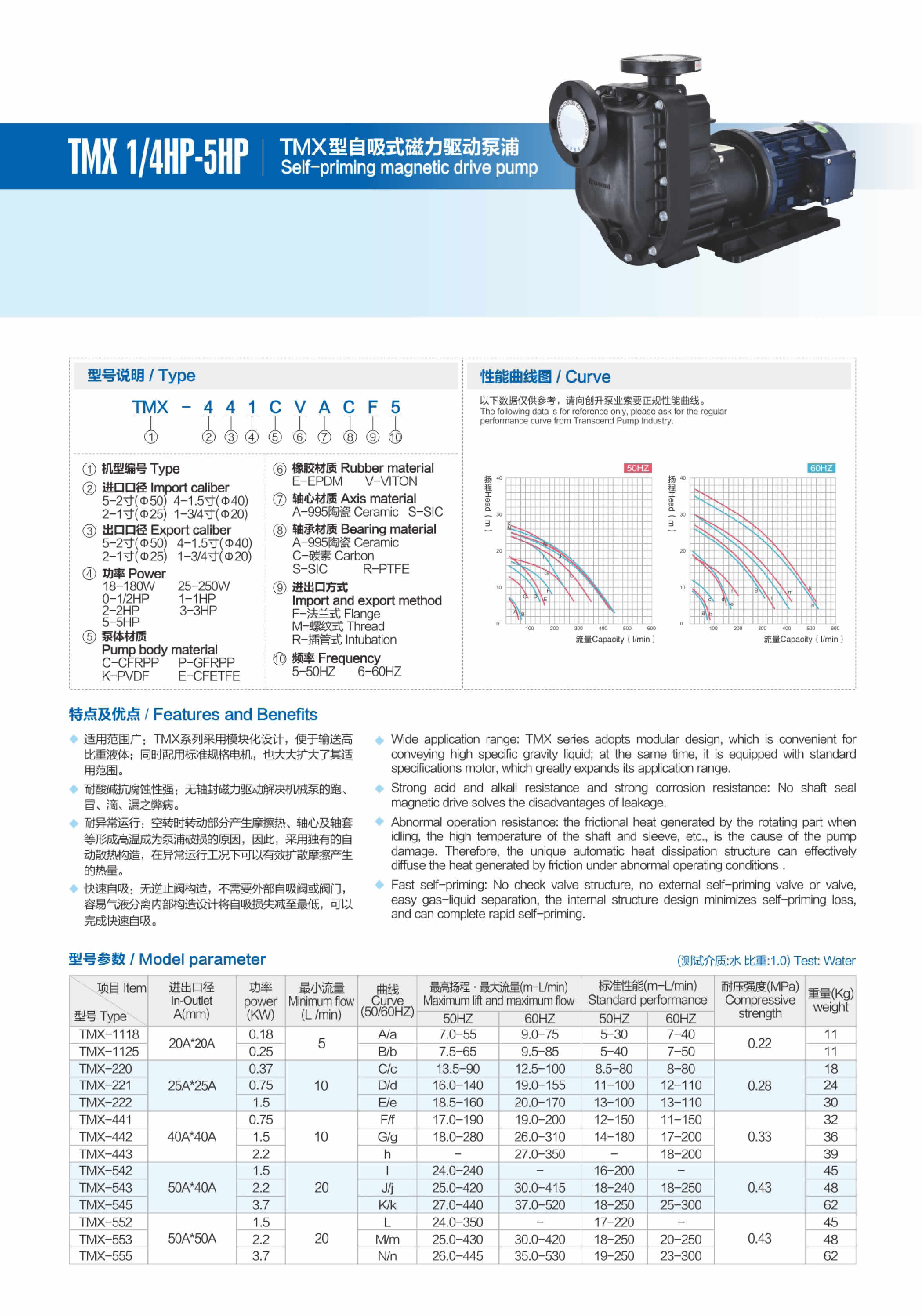

· product standard：（50Hz）

· pumping power：0.18-3.7kw

· full flow：55-445 L/min

· total head：7-26 m

· Main material：FRPP，PVDF

· Temperature Range：0~75℃（GFRPP），0~90℃（PVDF），0~100℃（ETFE）

· Products alias: self-priming magnetic pump, self-priming magnetic pump, self-priming magnetic drive pump, self-priming magnetic drive pump, etc
