FRPP PVDF Magnetic Pumps

item no.:
lead time:
Customer Date
product orgin:
Magnetic pump supplier
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

The pump material is divided into PP (Polypropylene), GFRPP (Glass Fiber Filled Polypropylene), PVDF (Natural PVDF) CFRETFE (Carbon Filber Filled ETFE), and the pump body material is selected according to the acid concentration of the drug solution. For example, the PP pump body material is used to provide more acid and alkali resistance. PP / GFRPP can withstand temperature of 75 ℃, PVDF can withstand temperature of 90 ℃, and CFRETFE can withstand temperature of 100 ℃. The liquid medicine can be safely used for transmission.

1. Corrosion resistance

The main parts of the pump have excellent corrosion resistance. For example, the shaft material of the pump is ceramic and SIC. Among them, ceramics can be used for general low corrosive liquids, and SIC can resist high corrosive liquids.

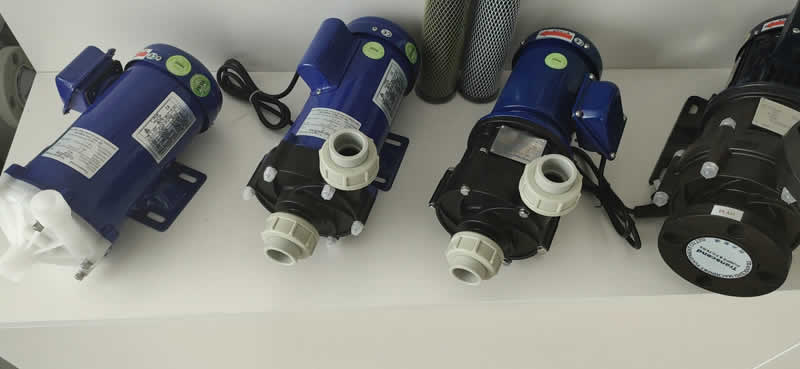

PP Magnetic chemical pump

2. Innovative unique anti-idling design

The unique bearing design allows the liquid to circulate and cool between the impeller, the shaft center and the passive magnet when the pump is running. Even if the pump is idling, it will not cause a rapid temperature rise. High-performance magnetic drive pumps, abandon the design of the traditional traditional mechanical pump shaft seal, to achieve a complete seal of the pump, not to cause serious environmental pollution due to pump damage

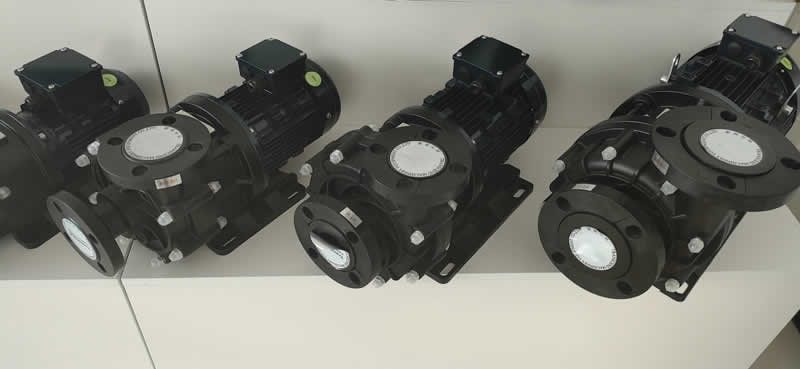

PP / GFRPP Magnetic pump

3. Easy assembly

The internal parts of the magnetic drive pump without shaft seal are standardized, easy to assemble, and have a compact structure and high performance. In the process of disassembly and assembly, parts can be easily replaced without any special tools, so maintenance, disassembly, and inspection are very easy to complete, convenient and convenient. save time.

4. High durability

The motors of the MPX (180W ~ 260W) series are equipped with temperature protectors to prevent damage to the motor caused by the high temperature caused by overload.

5. Wide range of applications

Magnetic drive MPX series (180W ~ 260W) without shaft seal pump can be used in low flow / high head or high head / low flow, for a variety of industrial processes

(Such as: PCB manufacturing process, chemical industry; filtration cycle, etching, electroplating, surface treatment, sewage treatment, etc.) can be widely used, can exert excellent performance and durability.

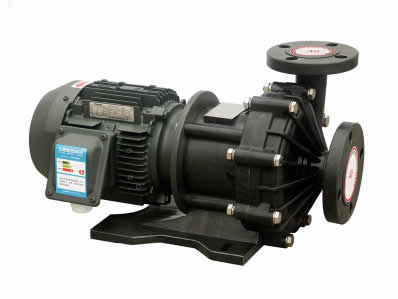

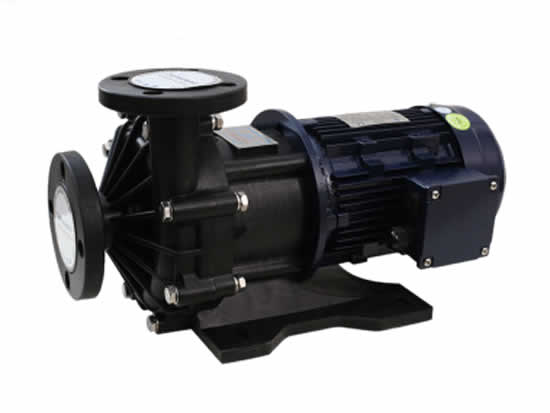

FRPP PVDF magnetic drive pump
