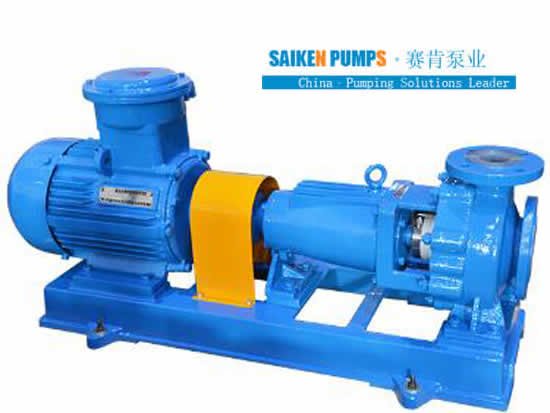

IHF Plastic Lining Acid Transfer Pump

  • item no.:

    IHF50-32-160/IHF80-65-160
  • lead time:

    Customer Date
  • product orgin:

    Botou Saiken Pumps Co.Ltd
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Summarize:
1. End Suction Chemical Pump, Centrifugal Chemical Pump, Acid Pump, Plastic Centrifugal Pump, Fluoro Plastic Centrifugal Pump is a single stage single suction fluoroplastic alloy chemical centrifugal pump.

2.This pump's features: Anti- corrosion, wearability, high temperature resistance,nonaging, high mechanical strength, non-toxin decomposition and wide temperature range of use.

3.This pump can be used to ransport sulfuric acid, nitro-hydrochloric acid, strong oxidative and strong corrosive media, it is one of the most advanced corrosion- proof equipments at present.

Product details:

Working Principle: Centrifugal
Main applications:        Chemical Industry, Pharmacy, Acid Cleaning, Farm Chemicals,waste water treatment,etc.
Driver: Electric
Max.permissible fluid temperature: 200°C(392°F)
Type of connection: Flange, Thread, Quick coupled
Installation position: Horizontal.
Casing parts material: PTFE lined
Shaft seal type:   Mechanical seal
Maximum drive rating: 37KW
Maximum caliber:   125/100mm (5"/4")
Maximum flow: 120m3/h
Maximum discharge-side pressure: 125m

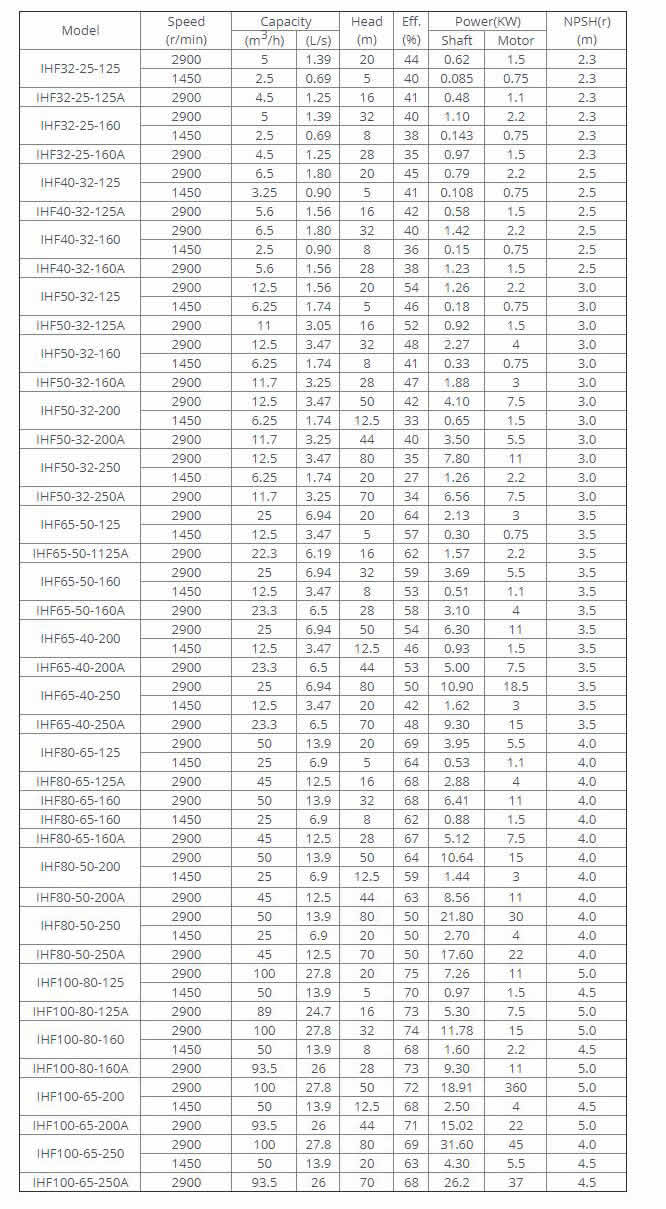

Performance Data:

IHF Plastic Lining Acid Transfer Pump
