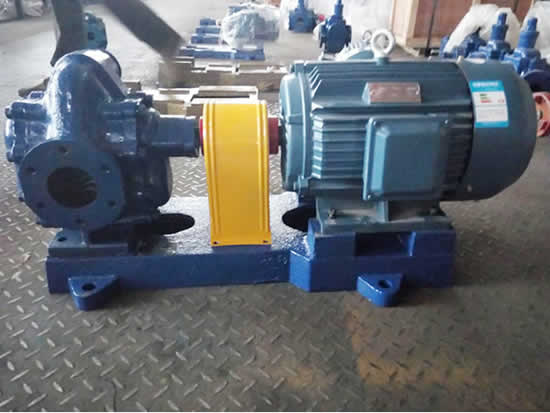

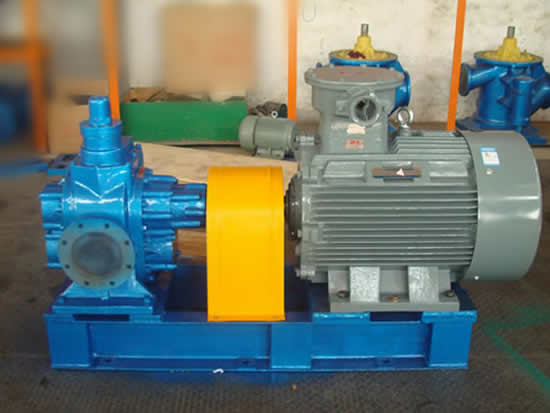

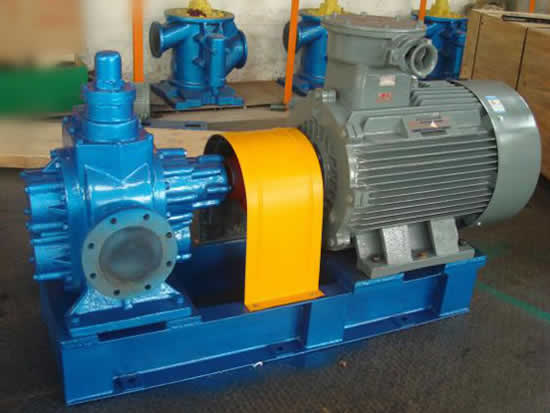

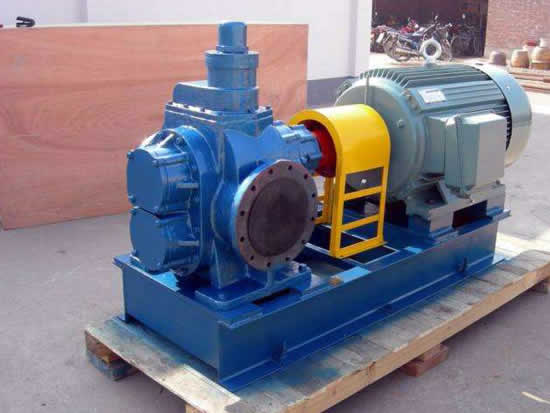

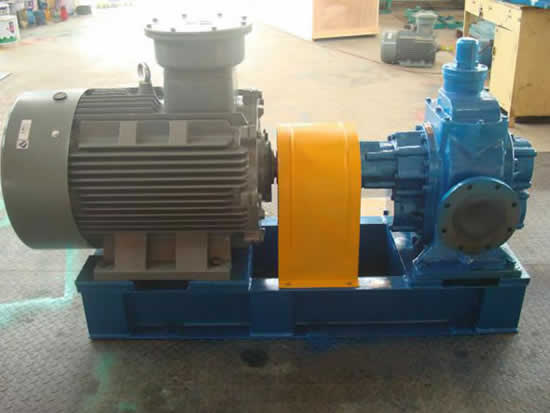

Lubricating Oil Transfer Pump - KCB Series

  • item no.:

    KCB 5400
  • lead time:

    Customer Date
  • product orgin:

    CHINA SAIKEN PUMPS
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
KCB Series Lubrication Pump/Lube Oil Pump
Lubricant Transfer Pump, Oil Lubricator, Automatic Lubrication Pump, Electric Pumps for Grease Transfer, Lube Oil Pumping Applications, Electric Grease Transfer Pump

Technical Data of KCB Lube Oil Pump
MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600
Caliber:3/4"-14"
Capacity: 18.3-9600 lpm
Flow rate: 1.1 m3/h-570 m3/h
Rotational speed: 740 r/min-1440 r/min
Discharge pressure: 0.28 Mpa-1.45 Mpa
Net positive suction head: 5m-8m
Motor power: 1.5KW-250KW

Applicable Scopes of Lubricating Oil Pump
This lubricating pump is intended for such media like heavy oil, diesel, machine oil, vegetable oil and other similar liquids. The media should be non-corrosive, contain no impurities and have a viscosity less than 150mm2/s and a temperature lower than 120℃.
Applied for pressure boost, oil transmission, injection and circulation, this grease pump is widely used in petroleum, metallurgy, mining and power industry.

Description of Lubrication Pump
The KCB series lubrication pump is composed of gear, shaft, pump body, safety valve and sealing ring. All parts of the lube oip pump have been well designed and processed in order for high rigidity and strength. As for the gear, it has gone through thermal treatment and achieves a close coordination with the shaft. Also, the oil slot is intended to fix oil drain and oil return problems, therefore guaranteeing minimum torque strength for gear, less load and abrasion for bearing and much higher transferring efficiency. If the media are highly corrosive, acid- and alkali-resistant components are available on request. When it comes to combustive and explosive lube oils, copper-made and nonmetal-made parts are accessible.

Characteristics of Lube Oil Pump
Parts of this lube oil pump include pump body, pump cover, gear, shaft, safety valve and sealing ring.
The lubricant transfer pump and cover has been finish casted and then processed by CNC machine, providing high precision and better quality.
Considering overload problems, a safety valve is installed. The backflow pressure of this valve is 1.5 times that of the pump. Plus, within the range of pressure discharge, the pressure can also be adjusted upon request. Involute gears are utilized.
The main shaft for the oil lubricator is processed by newly developed CNC machine and enjoys high precision.

For sealing, two sealing methods are provided. One is mechanical sealing, which is appropriate for transferring lubricous media that contains no particles or fibers. Its biggest advantage is no leakage. The other one is called packing sealing, which is featured by great elasticity, self-lubrication, abrasion resistance and high chemical stability. The sealing ring can be chosen according to actual working conditions and customer requirements.

KCB Series Lubrication Pump/Lube Oil Pump data sheet:

Model Caliber
(Inch)
Flow
(L/min )
Pressure
(MPa )
Suction Lift
(m )
kcb gear pump
with Motor power
(KW )
KCB-18.3 3/4 18.3 1.45 5 1.5
KCB-33.3 3/4 33.3 1.45 5 2.2
KCB-55 1″ 55 0.33 5 1.5
KCB-83.3 1 1/2″ 83.3 0.33 5 2.2
KCB-135 2″ 135 0.33 5 4
KCB-200 2″ 200 0.33 5 4
KCB-300 3″ 300 0.33 5 5.5
KCB483.3 3″ 483.3 0.33 5 7.5
KCB483.3 3″ 483.3 1.0 5 11
KCB-633 4″ 633 0.28 5 11
KCB-960 4″ 960 0.3 5 18.5
KCB1200 6″ 1200 0.6 3 37
KCB1600 6″ 1600 0.6 3 45
KCB1800 8″ 1800 0.6 2.5 55
KCB2500 8″ 2500 0.6 2.5 75
KCB3800 10″ 3800 0.6 2 110
KCB5400 10″ 5400 0.6 2 110
KCB7600 14″ 7600 0.6 2 200
KCB9600 14″ 9600 0.6 2 250
