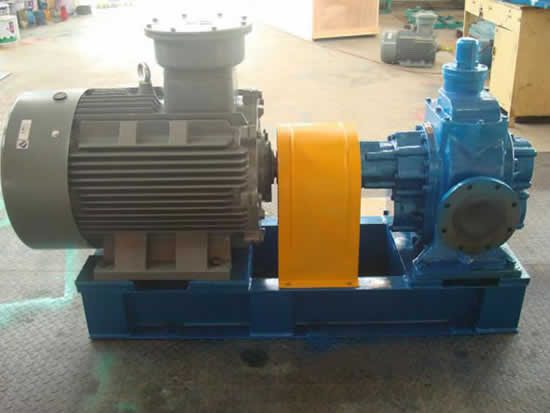

KCB-1800 Gear Pump with CE Approval

  • item no.:

    KCB1800
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
KCB-1800 gear pump Specifications:

     Model        Capacity
          (L/min)
     Pressure
         (Bar)
     Speed
     (rpm)
     Caliber
       (inch)
  Power
  (kw)
         Efficiency
  KCB 1800            1800         6      740           8 "      55             44%
Packing details                             715*350*876 Export standard wooden case





KCB Type Gear Oil Pump used to delivery non-corrosive lubricating oil or similar liquid without Particle and fibers.

Temperature requirements: KCB type is not higher than 250 ℃, the viscosity of 5 x 10-6-1.5 x 10-3 m3 / s (5 to 1500 CST) lubricating oil or other liquid properties similar to lubricating oil. Reduce the pump speed, the viscosity of the medium to 5 x 104 CST.

KCB gear pump model parameter:

Model Caliber
(Inch)
Flow
(L/min )
Pressure
(MPa )
Suction Lift
(m )
kcb gear pump
with Motor power
(KW )
KCB-18.3 3/4 18.3 1.45 5 1.5
KCB-33.3 3/4 33.3 1.45 5 2.2
KCB-55 1″ 55 0.33 5 1.5
KCB-83.3 1 1/2″ 83.3 0.33 5 2.2
KCB-135 2″ 135 0.33 5 4
KCB-200 2″ 200 0.33 5 4
KCB-300 3″ 300 0.33 5 5.5
KCB483.3 3″ 483.3 0.33 5 7.5
KCB483.3 3″ 483.3 1.0 5 11
KCB-633 4″ 633 0.28 5 11
KCB-960 4″ 960 0.3 5 18.5
KCB1200 6″ 1200 0.6 3 37
KCB1600 6″ 1600 0.6 3 45
KCB1800 8″ 1800 0.6 2.5 55
KCB2500 8″ 2500 0.6 2.5 75
KCB3800 10″ 3800 0.6 2 110
KCB5400 10″ 5400 0.6 2 110
KCB7600 14″ 7600 0.6 2 200
KCB9600 14″ 9600 0.6 2 250
