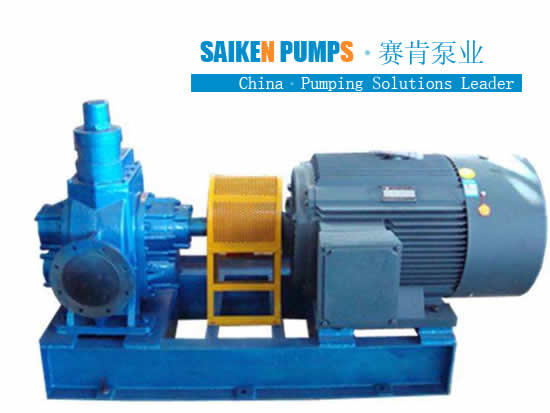

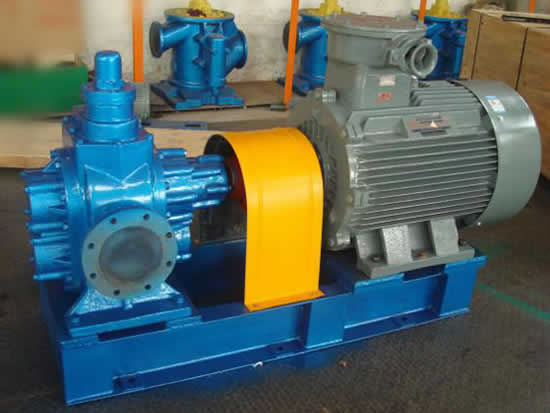

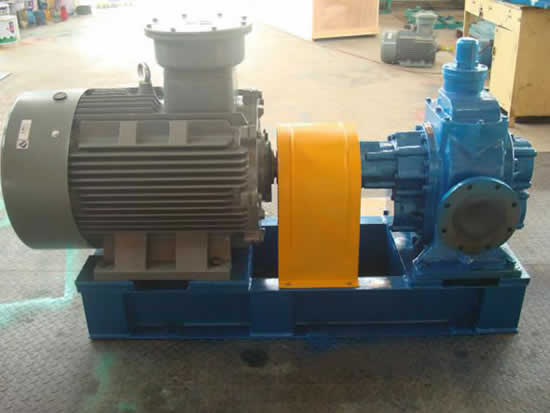

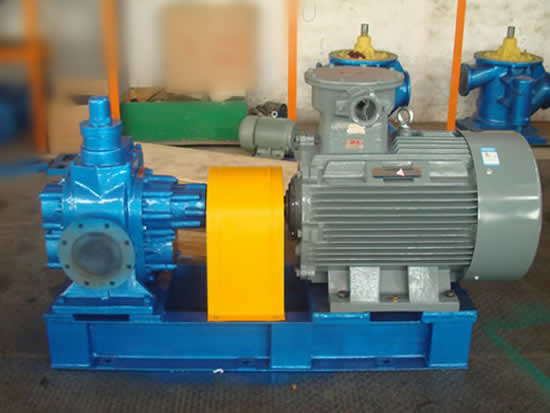

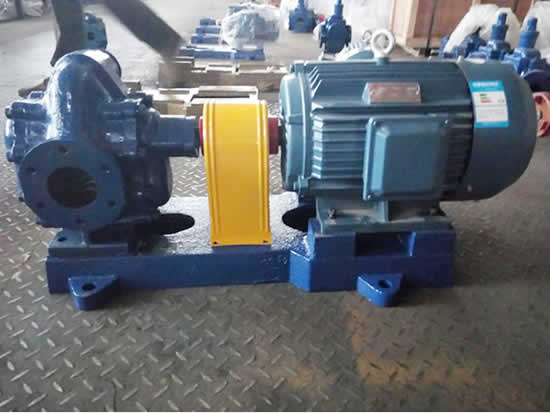

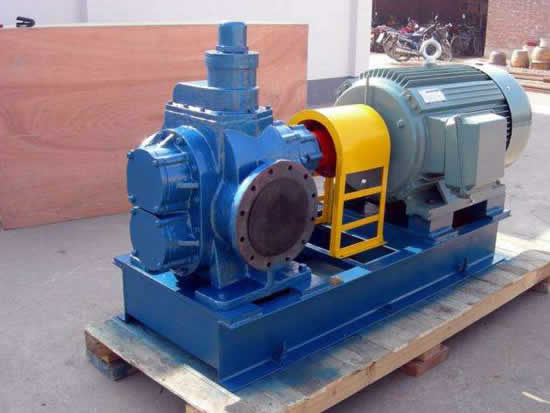

KCB Type Fuel Transfer Pump

item no.:
KCB 200
lead time:
Customer Date
product orgin:
CHINA SAIKEN PUMPS
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Electric Diesel Pump, Fuel Pump, Oil Transfer Pump, Petrol Fuel Transfer Pump, Electric Fuel Transfer Pump, Fuel Transfer System

KCB Fuel Transfer Pump Technical Parameters
Manufacturer: CHINA SAIKEN PUMPS
MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600

Capacity: 18.3-9600 lpm

Port: 3/4"-14"

Flow rate: 1.1 m3/h-570 m3/h

Rotational speed: 740 r/min-1440 r/min

Discharge pressure: 0.28Mpa-1.45Mpa

Net positive suction head: 5m-8m

Motor power: 1.5KW-250KW

Application Scopes of Fuel Transfer Pump

This type of oil transfer pump is ideal for transferring heavy oil, diesel, machine oil and vegetable oil that is non-corrosive, contains no impurities or fibers, as well as has a viscosity less than 150mm2/s and temperature lower than 120℃.

The fuel transfer system is most often used in such industries as petroleum, metallurgy, mining and power stations for oil transfer, pressure boost, injection and circulation.

Description of Fuel Transfer Pump

In this industrial fuel pump, all components have been well designed and handled, and can take advantage of transferred media as lubricating agent. To get higher strength and rigidity, the gear has undergone heat treatment and coordinated closely with the shaft. The well designed oil drain slot and oil return slot provide minimum torque strength for gear, which in turns brings less load and abrasion for bearing and high working efficiency. If the media are highly corrosive, acid- and alkali-resistant materials are available upon request. When it comes to combustive and explosive media, copper-made and nonmetal-made parts for the fuel transfer pumps are available.

Major Configurations of Fuel Transfer Pump

The gear type diesel transfer pump is composed of pump body, pump cover, gear, shaft, bearing, safety valve and sealing ring.

As for the pump body and cover, high precision and fine quality have been realized due to the use of CNC machine.

As an overload protection device, the safety valve is set to provide 1.5 times pressure of pump and can also have proper adjustment according to actual working demands.

Involute gears are applied.

Processed from advanced numerical control machinery, the main shaft enjoys a high degree of precision.

For sealing, two sealing methods are available. One is mechanical sealing, which is appropriate for transferring lubricous media that contains no impurities. Its biggest advantage is no leakage. The other one is called packing sealing. It features elasticity, self-lubrication, abrasion resistance and high chemical stability. The sealing ring can be chosen according to actual working conditions and customer requirements.

KCB Fuel Transfer Pump data sheet:

Model	Caliber (Inch)	Flow (L/min )	Pressure (MPa )	Suction Lift (m )	kcb gear pump with Motor power (KW )
KCB-18.3	3/4	18.3	1.45	5	1.5
KCB-33.3	3/4	33.3	1.45	5	2.2
KCB-55	1″	55	0.33	5	1.5
KCB-83.3	1 1/2″	83.3	0.33	5	2.2
KCB-135	2″	135	0.33	5	4
KCB-200	2″	200	0.33	5	4
KCB-300	3″	300	0.33	5	5.5
KCB483.3	3″	483.3	0.33	5	7.5
KCB483.3	3″	483.3	1.0	5	11
KCB-633	4″	633	0.28	5	11
KCB-960	4″	960	0.3	5	18.5
KCB1200	6″	1200	0.6	3	37
KCB1600	6″	1600	0.6	3	45
KCB1800	8″	1800	0.6	2.5	55
KCB2500	8″	2500	0.6	2.5	75
KCB3800	10″	3800	0.6	2	110
KCB5400	10″	5400	0.6	2	110
KCB7600	14″	7600	0.6	2	200
KCB9600	14″	9600	0.6	2	250
