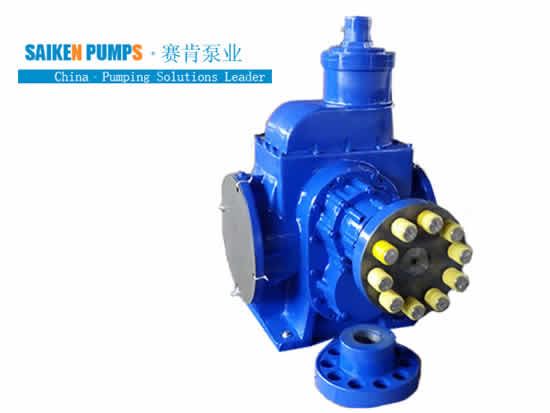

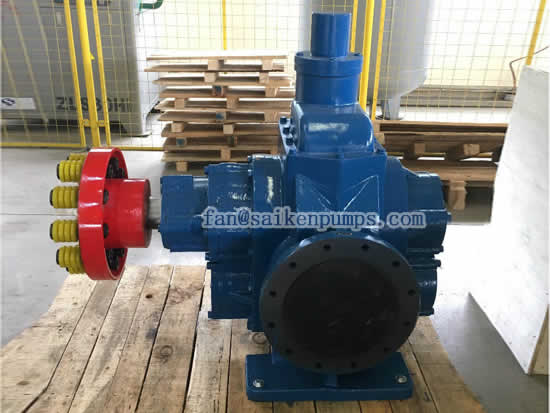

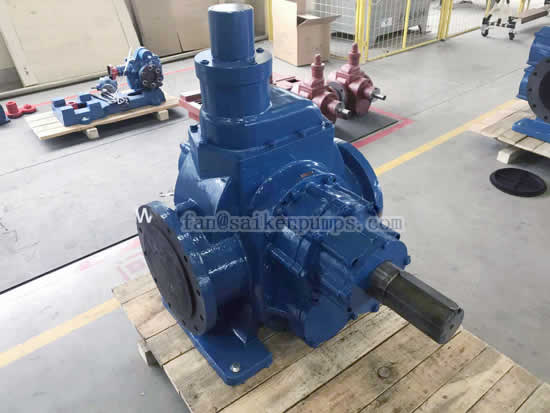

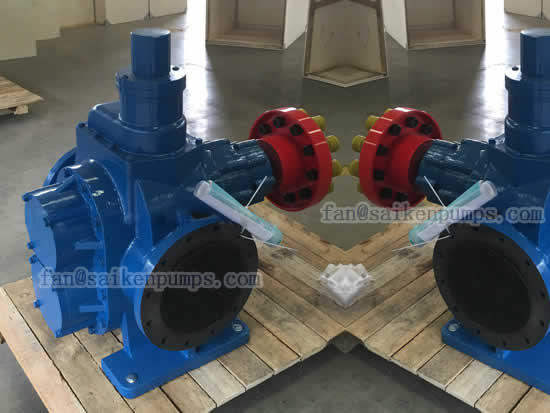

KCB 7600 Lube Oil Pump

item no.:
KCB7600
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

KCB Series Lube Oil Pump,Lubrication Pump

Lubricant Transfer Pump, Oil Lubricator, Automatic Lubrication Pump, Electric Pumps for Grease Transfer, Lube Oil Pumping Applications, Electric Grease Transfer Pump

KCB 7600 Lube Oil Pump Specifications:

Model	Capacity (m³/h)	Pressure (Bar)	Speed (rpm)	Caliber (inch)	Power (kw)	Efficiency
KCB 7600	460	6	989	14 "	200	44%
Packing details	1190mm X 780mm X 1300mm for bare shaft pump, with export standard wooden case.

Technical Data of Lube Oil Pump

Model: 18.3-9600 LPM

Flow rate: 1.1 m³/h-570 m³/h

Rotational speed: 740 r/min-1440 r/min

Discharge pressure: 0.28 Mpa-1.45 Mpa

Net positive suction head: 4 m

Motor power: 1.5KW-250KW

Applicable Scopes of Lubrication Pump

This lubricating pump is intended for such media like heavy oil, diesel, machine oil, vegetable oil and other similar liquids. The media should be non-corrosive, contain no impurities and have a viscosity less than 150mm2/s and a temperature lower than 120℃.

Applied for pressure boost, oil transmission, injection and circulation, this grease pump is widely used in petroleum, metallurgy, mining and power industry.

Description of Lubrication Pump

The KCB series lubrication pump is composed of gear, shaft, pump body, safety valve and sealing ring. All parts of the lube oip pump have been well designed and processed in order for high rigidity and strength. As for the gear, it has gone through thermal treatment and achieves a close coordination with the shaft. Also, the oil slot is intended to fix oil drain and oil return problems, therefore guaranteeing minimum torque strength for gear, less load and abrasion for bearing and much higher transferring efficiency. If the media are highly corrosive, acid- and alkali-resistant components are available on request. When it comes to combustive and explosive lube oils, copper-made and nonmetal-made parts are accessible.

Characteristics of Lubrication Pump

Parts of this lube oil pump include pump body, pump cover, gear, shaft, safety valve and sealing ring.

The lubricant transfer pump and cover has been finish casted and then processed by CNC machine, providing high precision and better quality.

Considering overload problems, a safety valve is installed. The backflow pressure of this valve is 1.5 times that of the pump. Plus, within the range of pressure discharge, the pressure can also be adjusted upon request.

Involute gears are utilized.

For sealing, two sealing methods are provided. One is mechanical sealing, which is appropriate for transferring lubricous media that contains no particles or fibers. Its biggest advantage is no leakage. The other one is called packing sealing, which is featured by great elasticity, self-lubrication, abrasion resistance and high chemical stability. The sealing ring can be chosen according to actual working conditions and customer requirements.

KCB Series Lube Oil Pump Model Parameters:

Model	Capacity Q		Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
	m3/h	L/min					Power kw	Model
KCB-18.3	1.1	18.3	1400	1.45	5	44	1.5	Y90L-4
2CY-1.1/1.45
KCB-33.3	2	33.3	1420	1.45	5	44	2.2	Y100L1-4
2CY-2/1.45
KCB-55	3.3	55	1400	0.33	7	41	1.5	Y90L-4
2CY-3.3/0.33
KCB-83.3	5	83.3	1420	0.33	7	43	2.2	Y100L1-4
2CY-5/0.33
KCB-135	8	135	940	0.33	5	46	2.2	Y112M-6
2CY-8/0.33
KCB-200	12	200	1440	0.33	5	46	4	Y112M-4
2CY-12/0.33
KCB-300	18	300	960	0.36	5	42	5.5	Y132M2-6
2CY-18/0.36
KCB-483.3	29	483.3	1440	0.36	5.5	42	11	Y160M-4
2CY-29/0.36
KCB-633	38	633	970	0.28	6	43	11	Y160L-6
2CY-38/0.28
KCB-960	58	960	1470	0.28	6.5	43	18.5	Y180M-4
2CY-58/0.28
KCB-1200	72	1200	740	0.6	7	43	37	Y280S-8
KCB-1600	95	1600	980				45	Y280S-6
KCB-1800	112	1800	740	0.6	7.5	43	55	Y315S-8
KCB-2500	150	2500	985				75	Y315S-6
KCB-2850	170	2850	740	0.6	8	44	90	Y315L1-8
KCB-3800	230	3800	989				110	Y315L1-6
KCB-4100	245	4100	743	0.6	8	44	132	Y355M1-8
KCB-5400	325	5400	989				160	Y355M1-6
KCB-5600	330	5600	744	0.6	8	44	160	Y355M2-8
KCB-7600	460	7600	989				200	Y355M3-6
KCB-7000	420	7000	744	0.6	8	44	185	Y355L1-8
KCB-9600	570	9600	989				250	Y355L2-6
