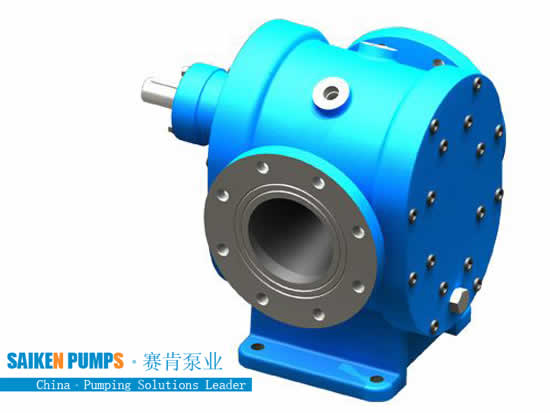

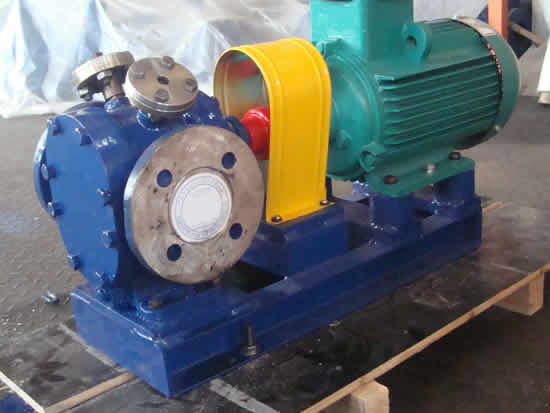

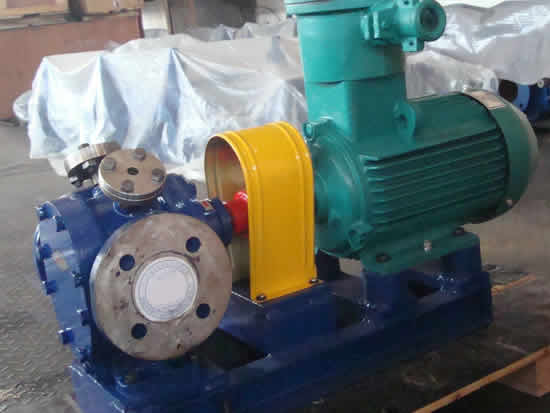

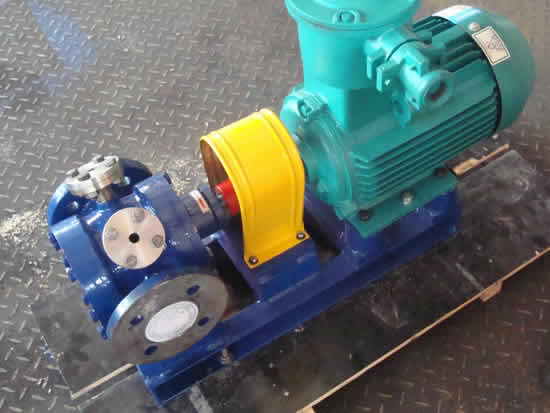

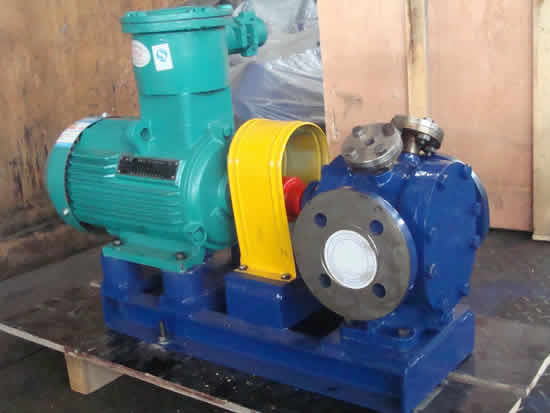

YCB-G gear asphalt pump with jacket

  • item no.:

    YCB10-0.6G
  • lead time:

    Customer Date
  • product orgin:

    CHINA SAIKEN PUMPS
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
YCB-G Gear Asphalt Pump Specification:
Manufacturer: CHINA SAIKEN PUMPS
Viscosity: 5-1500 cst
MAX. Temperature:350 degrees
Pressure:0.6Mpa
Speed:910-970 r/min
Capacity:0.6-50 m³/h
Material: Cast Iron/stainless steel

Model Port(mm) Capacity(m³/h) Pressure(Mpa) Speed(r/min) Motor Power(kw)
YCB0.6-0.6G Φ25 0.6 0.6 910 0.75
YCB1.6-0.6G Φ32 1.6 910 0.75
YCB3.3-0.6G Φ40 3.3 940 1.5
YCB4-0.6G Φ50 4 940 1.5
YCB8-0.6G Φ65 8 960 3
YCB10-0.6G Φ65 10 970 4
YCB20-0.6G Φ80 20 970 7.5
YCB25-0.6G Φ80 25 970 11
YCB30-0.6G Φ100 30 970 11
YCB40-0.6G Φ125 40 970 15
YCB50-0.6G Φ125 50 970 22



YCB-G Asphalt Gear Pump  Advantage:
The conveying medium is wide, and the output flow and pressure are stable
Application:
YCB-G type heat pump for conveying not have solid particles, oil temperature not higher than 350 DEG C, asphalt, resin, detergent, glue and other types of coagulative medium at room temperature, and is suitable for outdoor installation and process requirements in thermal insulation occasions in alpine region.
