High Temperature Resistant Centrifugal Pump Installer

Bitumen transfer pump Jacketed Asphalt Pump

  • item no.:

    NYP52 NYP111 NYP160 NYP220
  • lead time:

    Customer Date
  • product orgin:

    China asphalt pump supplier
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

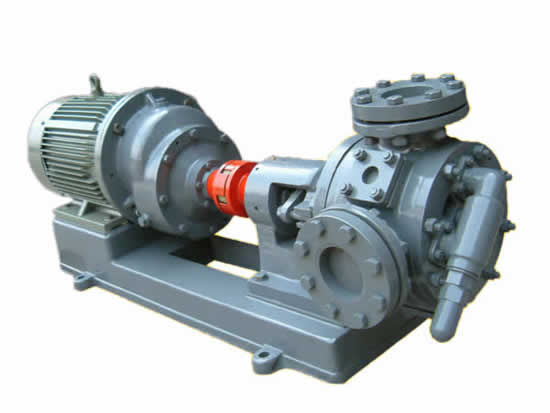

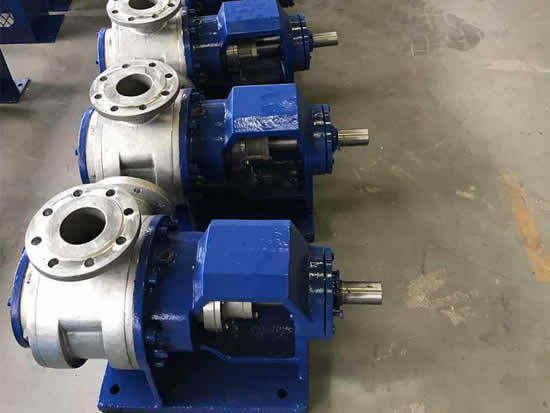

Bitumen transfer pump & Jacketed Asphalt Pump

NYP series Bitumen transfer pump is similar to US viking pump, it is stable, pulseless, with small vibration and low noise. It also has a good self-priming ability, which is able to transfer high viscosity resin, ASPHALT CEMENT, Asphalt, polyurethane, ASPHALT EMULSIONS, poly-aether, polyethylene or some-thing similar. And there’s double jacket type, pump can get heated by heat steam, thermal oil,electrical heating.

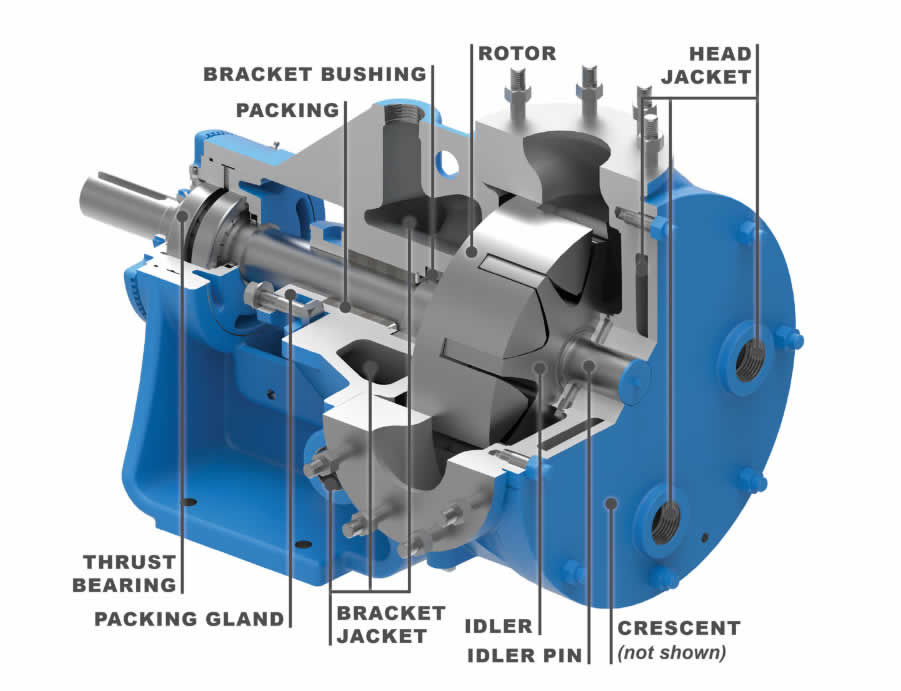

Working principle: Internal gear
Pump body material: Cast iron, ductile iron,carbon steel,stainless steel 304 or 316
Shaft sleeve material: cemented carbide,steel back of composite,(SiC)
Viscosity range:1-300000 cst
Max. medium temperature: 10- 250℃
Max. suction:4m
Flow rate:5-5000L/min
Discharge pressure:0.4-1.0Mpa
Caliber:1/2"-8"
Caliber connection type:Thread, flange
Motor power:0.55-75kw
Motor specification:220-440V, 3phase, 50/60Hz, etc
Motor type: Gearbox reducer, Frequency, EX
Main application: Oil, heavy oil, resin, paint, polymer,  honey, food oil (SS)
Customized service: Insulation jacket, variable speed, high temperature type.



NYP Jacketed Asphalt Pump Model data:

   Model              Standard Port
Size
Nominal Pump Rating
(m³)

Nominal Pump Rating
(LPM)
Maximum RPM Maximum Pressure
(PSI)
Maximum Pressure
 (BAR)
   NYP2.3        1"          1.7           28   1440      145       10
   NYP7.0        1.5"           3           50    960      145       10
   NYP52A        2"           12           200    680      145       10
   NYP111A         3"           28           500    680      145       10
   NYP160A        4"          40           670    500      145       10
   NYP220        5"           50           800    450      145       10
   NYP320        5"           60          1000      350      145        10
   NYP727        6"           80          1400      280        116       8
   NYP1670        8"           150          2500      200        116       8
