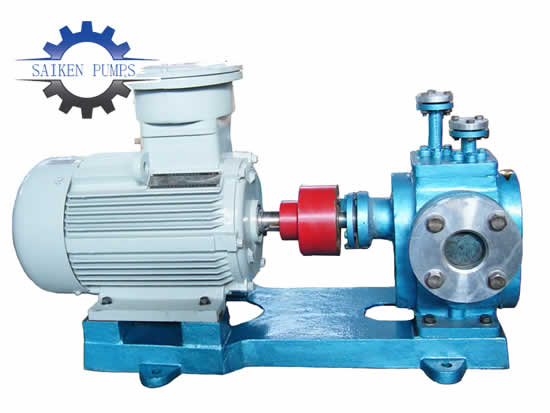

Asphalt Pump with jacket

item no.:
RCB
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Asphalt Pump Manufacturer : China Botou saiken pumps

Media: bitumen and asphalt,Resins,Glue,Molasses,Chocolates,fats and oils,Resins and polymers

Flow: Max.: 100 m³/h

Pressure: Max.: 6 bar

Speed: up to 1450 rpm

RCB heat preservation jacket gear pump is suitable for conveying non-corrosive, solid particles-free medium with solidification at room temperature. It is especially suitable for occasions where the medium needs to be insulated during outdoor installation and process in high and cold regions. The medium temperature can reach 250 °C, viscosity. It is 5~1500cst.

RCB heat pump gear pump pump body cover back cover is provided with hollow jacket, inlet and outlet flange. The pump is suitable for outdoor installation and process in the coagulation and cold regions at room temperature, where heat preservation is required. The medium such as steam, hot water and cold water heats, transports and cools the delivered liquid and pump. When the viscosity of the conveying medium is greater than 1500 CST, a speed reducer should be used.

The pump shaft end seal is designed in two forms: (1) mechanical seal (2) packing seal. Users can determine according to specific use conditions

RCB type heat preservation jacket gear pump model parameter:

model	port （mm）	Flow		Pressure Mpa	suction height （m）	Motor KW	r/min	电机型号
model	port （mm）	m3/n	L/min	Pressure Mpa	suction height （m）	Motor KW	r/min	电机型号
RCB1/0.6	ф25	1	18.3	0.6	5	1.1	910	Y90L-6
RCB1.5/0.6	ф25	1.5	25	0.6	5	1.5	1400	Y90L-4
RCB2.2/0.6	ф25	2.2	36	0.6	5	1.5	910	Y100L-6
RCB3.3/0.6	ф25	3.3	55	0.6	5	2.2	1400	Y100L-4
RCB3/0.6	ф40	3	50	0.6	5	1.5	910	Y100-4
RCB5/0.6	ф40	5	83.3	0.6	5	2.2	1420	Y100L-6
RCB6/0.6	ф50	6	100	0.6	5	2.2	710	Y100L-4
RCB8/0.6	ф50	8	135	0.6	5	4	960	Y132S-6
RCB12/0.6	ф50	12	200	0.6	5	5.5	1440	Y132S-6
RCB18/0.6	ф65	18	300	0.6	5	7.5	960	Y160M-6
RCB29/0.6	ф65	29	483	0.6	5	11	1460	Y160M-4
RCB38/0.28	ф100	38	633	0.28	5	15	970	Y180L-6
RCB58/0.28	ф100	58	960	0.28	5	22	1470	Y180L-4
RCB72/0.6	ф150	72	1200	0.6	5	37	740	Y280S-8
RCB96/0.6	ф150	96	1600	0.6	5	45	980	Y280S-6
