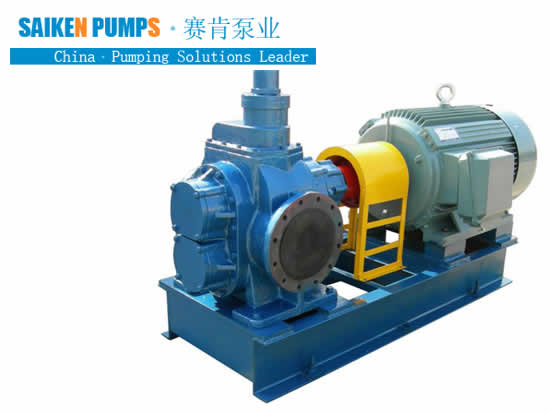

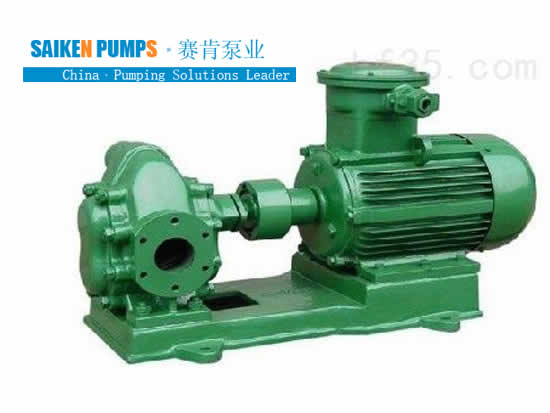

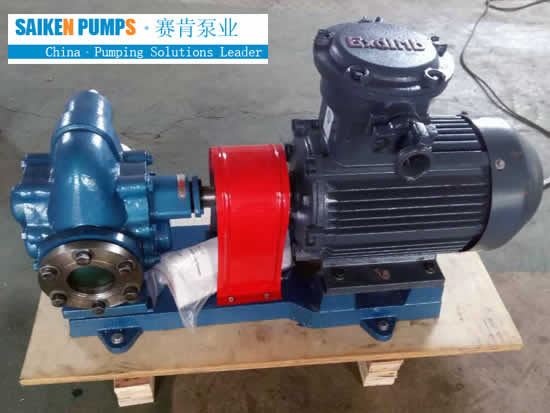

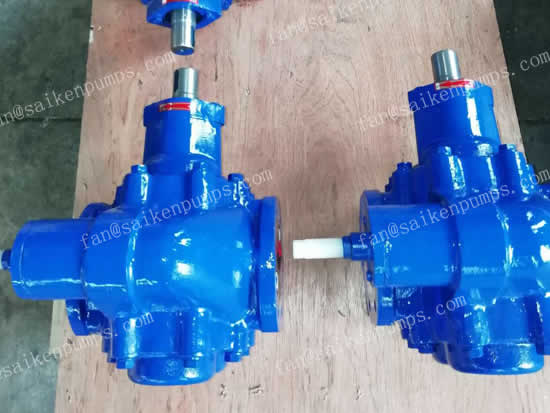

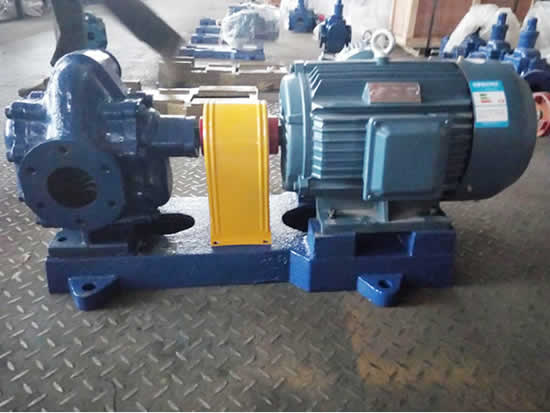

KCB 633 Marine Gear Oil Pump

item no.:
KCB633
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

KCB-633 (2CY-38/0.28) gear pump Specifications:

Model	Capacity (L/min)	Pressure (Bar)	Speed (rpm)	Caliber (inch)	Power (kw)	Efficiency
KCB 633	633	2.8	960	4 "	11	44%
Packing details

KCB Gear Pump Model：

* Large capacity range, up to 570 m3/h.

* MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600.

* Pump Body Material : Cast iron / stainless steel（304/316/316L）

* Gear Material : Steel, copper, stainless steel.

* Temperature: less than 180 degrees.(more than 180 degrees need customized)

* Reliable and easy to Maintain

* Good self-priming function.

* Self-lubrication by the pumped liquid.

* With built-in relief valve.

* Screw port or flange port for connection.

* Explosion-proof motor optional.

Applications:

KCB gear pump applies to delivering different types oil or equivalent liquid without solid particles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt. They have also a constant flow even if delivery pressure changes during operation. Internal fine tolerances make these pumps usable only with clean fluids having some lubrication properties.

KCB series gear pump flow:18-9600 L/min,Power:1.5 KW-160 KW, Caliber: 3/4 " to 14 ",Max Pressure:14.5 Bar,it can be used for fuel oils,lubricating oil transfer,diesel,vegetable oil,Palm Oil,kerosene,biodiesel.Typical application of KCB gear pumps on board ship or vessel are supply of F.O., M.O., L.O., diesel oil, or even petrol, benzene and so on.

Technical details:

–Motor: 4 or 6 pole quality IEC motor configurations, with high level class(class F or higher) and insulation(insulation IP44 or higher), in both 50Hz or 60Hz, Y-H series, suitable for marine purpose, explosion-proof motor is an optional, Starting in direct type(small power) or Star-delta type.

–Material: pump casing and cover: cast iron, pump gear couples: 40Cr stainless steel, shaft: carbon steel #45, (optional material in stainless steel or bronze)

–Shaft seal: mechanical seal, material SIC(silicon carbide)/hard alloy, (optional for double face mechanical seal, soft packing and rubber oil seal)

–Coupling: elastic coupling type, material in carbon steel

–Bearing: motor side, two enclosed antifriction bearing, lubricated by grease; pump side, two internal quality bearings immersed in the pumped liquid

–Self-priming: positive displacement pump, suction head about 4-5 meters

–Relief valve: internal relief valve insides, setting pressure 1.5 times of discharge pressure

–Accessory: motor terminal box, lifting hooks, coupling guard (big power pump), grease nipple (big power pump) and so on.

KCB gear pump model parameter：

Model	Capacity Q		Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
	m3/h	L/min					Power kw	Model
KCB-18.3	1.1	18.3	1400	1.45	5	44	1.5	Y90L-4
2CY-1.1/1.45
KCB-33.3	2	33.3	1420	1.45	5	44	2.2	Y100L1-4
2CY-2/1.45
KCB-55	3.3	55	1400	0.33	7	41	1.5	Y90L-4
2CY-3.3/0.33
KCB-83.3	5	83.3	1420	0.33	7	43	2.2	Y100L1-4
2CY-5/0.33
KCB-135	8	135	940	0.33	5	46	2.2	Y112M-6
2CY-8/0.33
KCB-200	12	200	1440	0.33	5	46	4	Y112M-4
2CY-12/0.33
KCB-300	18	300	960	0.36	5	42	5.5	Y132M2-6
2CY-18/0.36
KCB-483.3	29	483.3	1440	0.36	5.5	42	11	Y160M-4
2CY-29/0.36
KCB-633	38	633	970	0.28	6	43	11	Y160L-6
2CY-38/0.28
KCB-960	58	960	1470	0.28	6.5	43	18.5	Y180M-4
2CY-58/0.28
KCB-1200	72	1200	740	0.6	7	43	37	Y280S-8
KCB-1600	95	1600	980				45	Y280S-6
KCB-1800	112	1800	740	0.6	7.5	43	55	Y315S-8
KCB-2500	150	2500	985				75	Y315S-6
KCB-2850	170	2850	740	0.6	8	44	90	Y315L1-8
KCB-3800	230	3800	989				110	Y315L1-6
KCB-4100	245	4100	743	0.6	8	44	132	Y355M1-8
KCB-5400	325	5400	989				160	Y355M1-6
KCB-5600	330	5600	744	0.6	8	44	160	Y355M2-8
KCB-7600	460	7600	989				200	Y355M3-6
KCB-7000	420	7000	744	0.6	8	44	185	Y355L1-8
KCB-9600	570	9600	989				250	Y355L2-6
