High Temperature Resistant Centrifugal Pump Installer

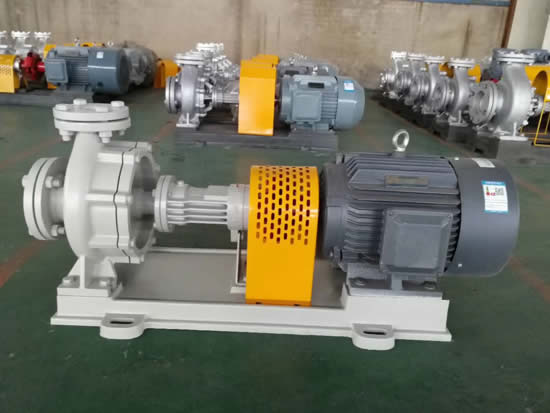

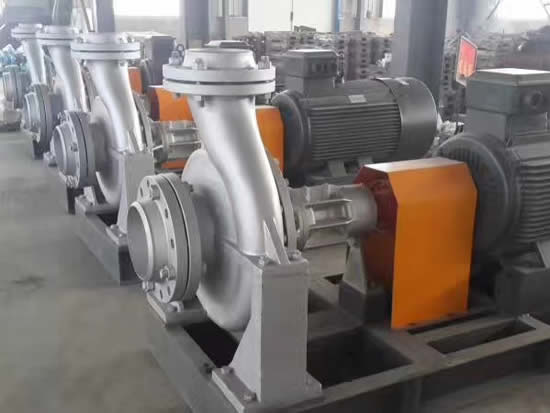

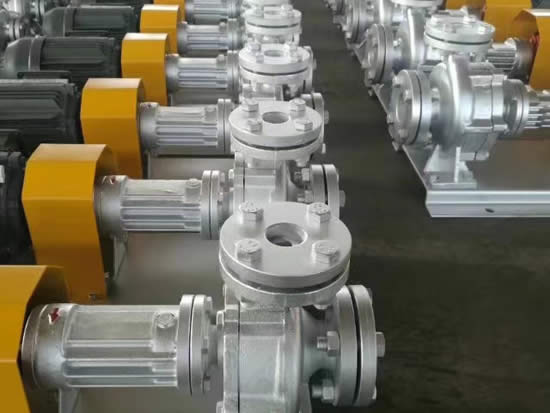

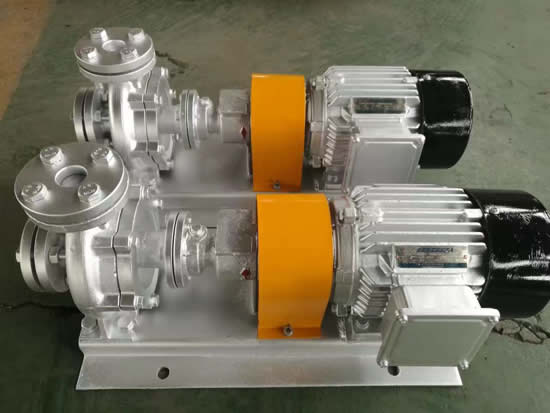

WRY Model hot oil pump

  • item no.:

    wry65-40-200
  • lead time:

    Customer Date
  • product orgin:

    CHINA BOTOU SAIKEN PUMPS CO.LTD
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
WRY series hot oil pump has been widely used in China's heat carrier heating system, and has entered various industrial fields such as petroleum, chemical, rubber, plastic, pharmaceutical, textile, printing and dyeing, road construction, food, etc. The particle's weakly corrosive high temperature liquid, using a temperature of ≤350 ° C, is an ideal hot oil circulation pump...
WRY series hot oil pump is the second generation product developed on the basis of digestion and absorption of foreign oil pump by our factory. The basic structure is single-stage single-suction cantilever foot support structure. The inlet of the pump is axial suction, the outlet is center-up vertically, and The motor is mounted on the base.
The support of WRY series hot oil pump adopts the structure of double-end ball bearing support. The front end is lubricated with lubricating oil, the rear end is lubricated with grease, and there is a guide oil pipe in the middle to observe the sealing condition and recover the heat transfer oil at any time.
Adopting the natural heat dissipation structure, the traditional water cooling structure is changed, the structure is simple, the volume is small, the operation cost is saved, the performance is good, and the use is reliable.
WRY series hot oil pump: (1) The combination of packing seal and mechanical seal, high temperature resistant packing for packing seal, good thermal adaptability, and mechanical seal with high mechanical strength and good wear resistance The alloy material guarantees the sealing performance under high temperature conditions.
(2) The third-generation PTFE (abbreviated as PTFE) is used for the lip seal, which makes the sealing performance leap. It is 25 times more reliable than the rubber seal and has strong corrosion resistance.

WRY hot oil pump performance parameter list:


Model 流量m³/h 扬程m 转速r/min 功率KW 效率n% 气蚀余量NPSH m
轴功率 配用功率
wry26-20-100 4.5 15 2825 0.45 0.75 40 0.8
wry50-32-150 8 22 2840 1 1.5 42 1.1
wry50-32-160 10 25 2840 1.5 2.2 42 1.2
wry65-40-160 12.5 25 2880 2.5 3 45 1.2
wry50-50-170 12.5 32 2890 3.2 4 45 1.2
wry50-50-150 24 18 2890 3.2 4 46 1.2
wry65-40-190 18 40 2900 4.5 5.5 52 1.4
wry65-50-180 32 32 2900 4.5 5.5 52 1.7
wry65-50-170 40 25 2900 4.5 5.5 52 1.8
wry65-40-200 25 50 2900 6.7 7.5 53 1.6
wry80-50-180 40 40 2900 6.7 7.5 63 1.8
wry80-50-170 60 20 2900 6.7 7.5 63 2.8
 wry100-65-190 60 38 2930 9.2 11 68 2.6
 wry100-65-200 80 40 2930 12.5 15 70 3.1
wry100-65-220 58 50 2930 12.5 15 68 2.4
 wry100-65-210 90 45 2930 15.7 18.5 70 3.4
 wry100-65-235 58 60 2930 15.5 18.5 62 2.3
 wry100-65-230 100 55 2940 19.5 22 70 3.6
   wry125-100-190 155 30 2940 17.6 22 72 5.6
 wry100-65-240 100 70 2950 25.5 30 69.8 3.5
 wry100-65-257 100 80 2950 32.5 37 67 3.5
   wry125-100-220 160 45 2950 25.5 37 75 3.5
 wry125-80-250 160 60 2970 35.5 45 74 5
 wry125-80-270 150 85 2970 46 55 73 4.7
   wry125-100-250 200 60 2970 42.8 55 76.8 6
   wry125-100-257 260 70 2970 64.3 75 77 7.4
   wry125-100-265 200 80 2970 59 75 74 5.8
   wry125-100-260 300 70 2970 75.3 90 78.2 8
   wry125-100-270 220 85 2970 68 90 76 6
   wry150-125-250 350 60 2970 75.2 90 76 9
   wry150-125-240 400 50 2970 72 90 76 10.5
     wry150-125-270Y 340 76 2970 89.5 110 78.6 8.5
     wry150-125-250Y 400 60 2970 88 110 74 9.8
     wry150-125-280Y 400 78 2970 106 132 80.6 9.8
     wry150-125-285Y 370 85 2970 106 132 80 9.5
