Cooking hot oil Pump for fryer

item no.:
SKCQ-15
lead time:
Customer Date
product orgin:
china manufacturer
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Hot Oil Cooking Pump, Fat Fryer / Filter, with close coupled Motor HP 1/2. Close Coupled Gear Pumps, NSF paint Color White on outer surfaces. self-priming, positive displacement, Teflon roller pumps feature cast-iron and stainless steel 304 construction for high temperature use.

This series of pumps is designed for hot oil or frying oil filtration up to 375° F., meeting NSF-listing requirements.

Ideal for a wide range of commercial fat fryer hot oil cooking, filtering, or waste oil rendering applications.

This pump can also be used in non-NSF hot oil applications with non-particulate and non-abrasive fluids compatible with pump wet-end construction component materials.

Features:

• Pumps meet NSF-listed standards including NSF-accepted paint for hot oil cooking applications.

• Pumps can operate bi-directionally.

• Pressures to 40 PSI with configured motors.

• Flows to 8.2 GPM.

• Operating temperatures to 375° F.

• Suction lift capabilities up to 7.5 feet of head.

• Non-clogging Teflon roller design

• Not for use with water-based fluids.

• AC ODP single-phase motors have thermal overload protection.

• Ports can be rotated vertically or horizontally

Performance:

Model	Size	RPM	Suction Lift	GPM Pumping cooking oil at 300° F
Model	Size	RPM	Suction Lift	Free Flow	10PSI	20PSI	30PSI	40PSI
SKCQ-15	1/2”	1450	2.5m	8.2	8	7.8	7.6	7.4

Motor Specification:

Model	Motor	Voltage	Amps	Motor Phase	Thermal Overload Protection	Motor RPM	Hz	Motor Shaft
SKCQ-15	1/2HP	110V	10.8	1	YES	1450RPM	60	SS
SKCQ-15	1/2HP	220V	5.1	1	YES	1450RPM	50	SS

Pump Construction (wet end):

Model	Inlet&Outlet	Body Cover & Rotor	Rollers	Seals & O-rings
SKCQ-15	1/2"	Cast Iron	Teflon	Viton
SKCQ-15S	1/2"	Stainless Steel 304	Teflon	Viton

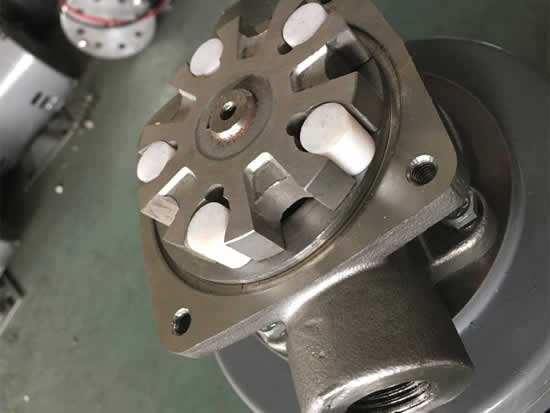

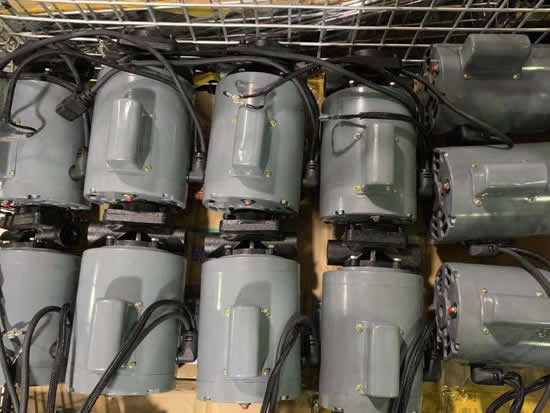

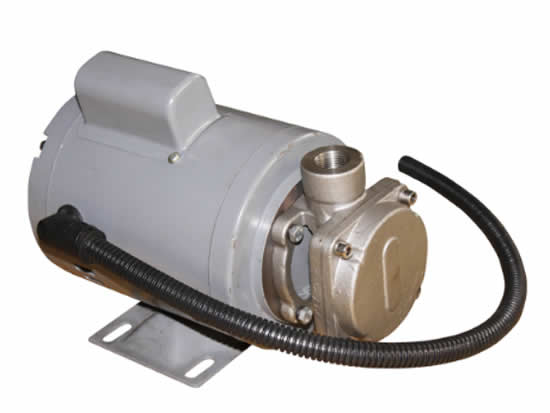

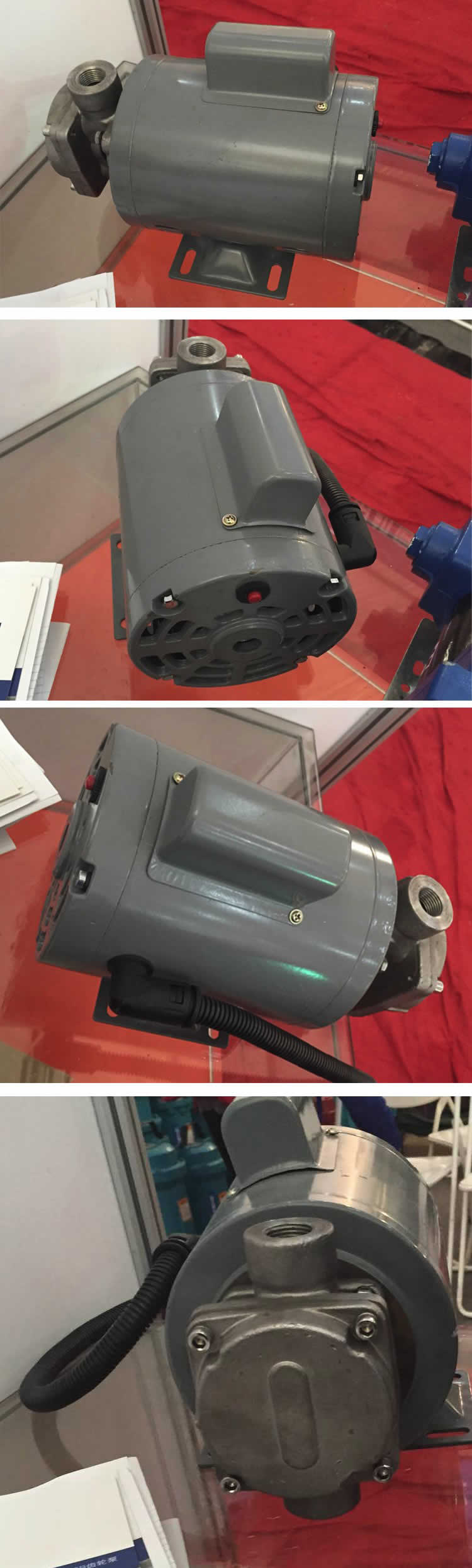

DETAILED PICTURES:

tags : Fryer cooking hot oil Pump
