Centrifugal hot oil pump - RY Series

item no.:
RY50-32-160
lead time:
Customer Date
product orgin:
BOTOU SAIKEN PUMPS CO.LTD
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

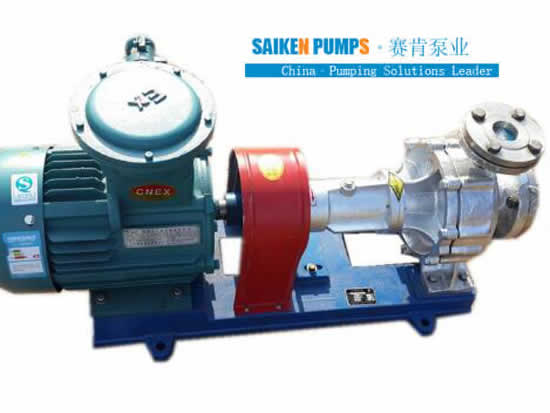

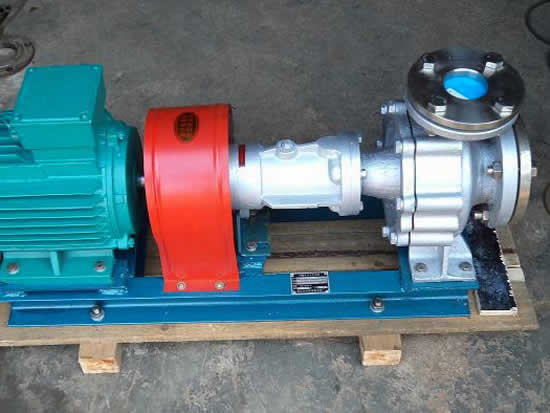

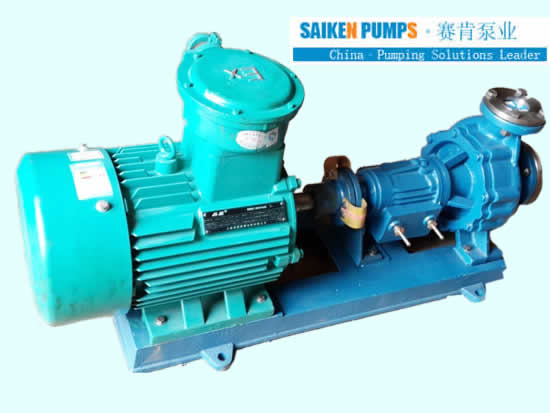

RY Series Centrifugal hot oil pump overview：

Manufacturer:CHINA BOTOU SAIKEN PUMPS

Capacity:up to 300 m3/h

Head:up to 125 m

Temperature:up to 350°C

MOC:Cast Steel Or Stainless Steel

The RY Series Centrifugal hot oil pump is a kind of thermal oil pump,it is designed to handle thermal oil up 350°C temperature.RY series hot oil pumps are of centrifugal, single stage, horizontal shaft type. Self-balancing impeller by rear impeller blades. No cooling of the seal chamber required. Generally the pump is driven by an electric motor coupled to the pump by means of an elastic coupling. It is possible to fit a flexible spacer coupling so as to dismantle the complete pump support without removing pump casing and motor from the base plate. The coupling is protected by a cover, so as to prevent external intrusion.

The bearing housing has been specially designed to dissipate the heat originating from the pump casing and does not require a cooling circuit. The shaft is supported by two roller bearings, the pump side bearing is lubricated by oil and the coupling side bearing by grease.

Pump body in cast steel, pump impeller and shaft in carbon steel. Shaft seal is combination with high temp glad packing and PTFE rubber oil seal.

The main parts of pump includes: pump casing, impeller, and shaft seal and so on. There is high temp glad packing in the pump sides and a high temp oil seal in the motor sides. The pump is driven by the motor through an elastic coupling.

With the natural cooling model, the pump is in simple structure, small size and easy maintenance.If the medium temperature higher than 250°C，need to add water cooling system.

RY Series Centrifugal hot oil pump specification：

Model	Capacity m 3 /h	Lift m	Speed r/min	Power kw		Efficiency η%	Motor-Y
Model	Capacity m 3 /h	Lift m	Speed r/min	Shaft power	Power Distribution	Efficiency η%	Motor-Y
15-15-100	3	10	2800	0.45	0.75	20	801
15-15-100A	2	10	2800	0.36	0.55	18	AO2-7122
15-15-100B	1	10	2800	0.2	0.37	15	AO2-7112
20-20-100	1	10	2800	0.09	0.37	26	AO2-7112
20-20-125	1.5	22	2800	0.22	0.75	30	801
40-25-160	10	28	2900	1.72	2.2	45	90L
25-25-160	3	27	2900	0.53	1.5	30	90S
32-32-160	6	28	2900	0.85	1.5	50	90S
50-32-160	12.5	30	2900	1.90	3.0	57	100L
50-32-200	18	40	2900	3.92	5.5	50	132Sl
50-32-200A	16	32	2900	3.35	4	42	112M
50-32-250	12.5	80	2900	6.2	11	44	160Ml
65-50-160	20	32	2900	3.17	5.5	55	132S1
65-40-200	30	48	2900	6.3	7.5	62	132S2
65-40-200A	25	35	2900	4.0	5.5	59	132S1
65-40-250	25	80	2900	10.3	15	53	160M2
65-40-250A	20	51	2900	5.67	7.5	49	132S2
65-40-315	25	125	2900	18.9	30	45	200L1
65-40-315A	22.5	100	2900	15.3	22	40	180M
80-50-200	50	50	2900	9.7	15	70	160M2
80-50-200A	45	40	2900	7.8	11	63	160M1
80-50-200B	40	32	2900	6.37	7.5	55	132S2
80-50-250	50	80	2900	17.1	22	58	180M
80-50-250A	43	60	2900	12.8	15	55	160M2
80-50-315	50	125	2900	30.4	45	56	225M
80-50-315A	45	100	2900	23.6	30	52	200L1
100-65-200	100	50	2900	18.4	22	74	180M
100-65-200A	94	44	2900	16	22	70	180M
100-65-200B	87	38	2900	13.8	15	65	160M2
100-65-200C	80	32	2900	11.8	15	59	160M2
100-65-250	100	80	2900	32.06	37	68	200L2
100-65-250A	95	72	2900	29	37	64	200L2
100-65-250B	90	65	2900	26.2	30	61	200L1
100-65-250C	85	50	2900	20.3	30	57	200L1
100-65-315	100	125	2900	50.06	75	68	280S
100-65-315A	95	113	2900	45.23	55	64.63	250M
100-65-315B	90	100	2900	40.5	55	60.50	250M
100-65-315C	82	84	2900	34.76	45	54	225M
125-100-200	200	50	2900	35.4	45	77	225M
125-100-200A	178	40	2900	26.6	37	73	200L2
125-100-250	200	70	2900	47	55	80	250M
125-100-250A	190	63	2900	41.6	55	78	250M
125-100-250B	180	57	2900	37.9	45	74	225M
125-100-250C	170	51	2900	32.15	45	72	225M
125-100-250D	150	70	2900	40	45	70	225M
150-150-200	350	50	2900	60	75	80	280S
150-150-200A	313	40	2900	45	55	76	250M
200-150-400	350	50	1450	61.8	75	78	280S
200-150-400A	330	45	1450	52.8	75	77	280S
250-200-400	500	50	1480	86.2	110	79	315S
250-200-500	500	80	1480	136	160	76.5	315M
250-200-500A	400	50	1480	75	90	73	280M
