SPF Three screw booster pump

item no.:
SM
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

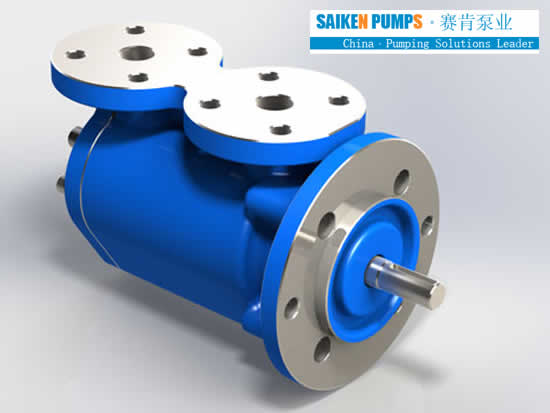

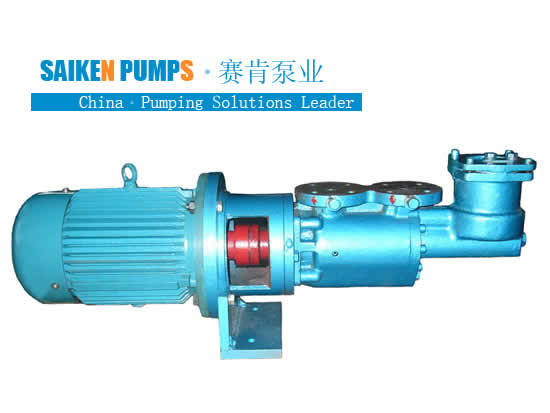

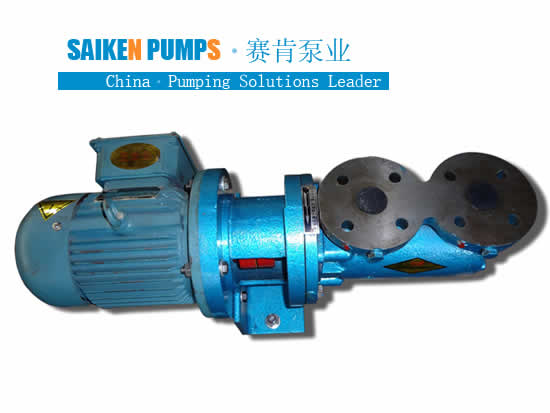

SPF Three screw booster pump:

Pressure:<4 Mpa

Max. Temperature:150 degrees

Viscosity:2mm2/s(1.10E)-7600mm2/s(10000E)

Typical Applications

Fuel Oil Service:

Fuel oil burner service for Thermal Power Plant/ Industrial Package, Boilers, Furnaces, Kilns and Combustion systems.

Fuel transfer and booster service for Captive Diesel/ Gas Turbine Plants and Industrial Combustion Systems, Fuel Oil Circulations and Centrifuge Feeding. Tank farm tank to tank transfers.

Hydraulic Duties:

Hydraulic governing service for Water Turbines, Inlet Penstock Valves.

Low and medium pressure hydraulic applications, high pressure jacking oil service for rotor lifting for Turbines/ Compressors/ Alternators.

Lubricating Duty:

Pressure lubrication and cooling of bearings for Turbo Machinery, Gear Boxes, Bearing Lubrication of Coal Mills, ID/FD Fans, Diesel Engines, Steel Rolling Mills, Air pre-heater guide bearings, Compressors.

Seal Oil Service:

Hydrogen cooled Generators, Gas and Refrigeration Compressors.

SPF Three screw pump advantage:

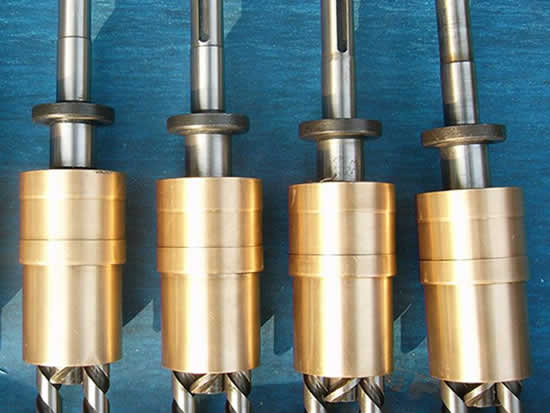

1 Operation: by the special shape of the spiral surface of the active screw rotation, the dynamic seal chamber will be liquid from the suction port and along the axial continuous, no pulsation to the outlet.

2 Noise, pulse: the structure and operation of the screw pump to ensure the stability of the pump, low noise and no pulsation.

3 Shaft seal: pump with mechanical seal, the mechanical seal without maintenance.

4 Safety valve: each pump is equipped with safety valve as overload protection device.
