Pneumatic-diaphragm-pump-for-chemical-industry

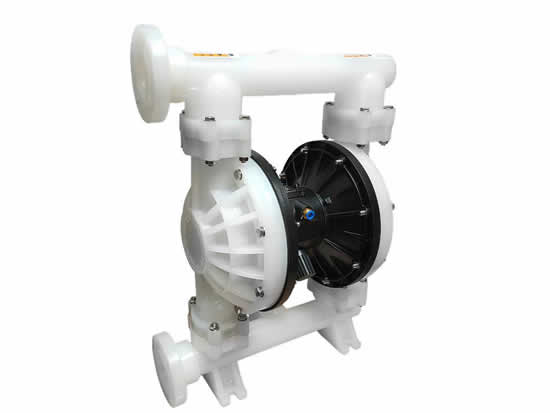

Pneumatic diaphragm pump for chemical industry

item no.:
lead time:
Customer Date
product orgin:
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Pneumatic diaphragm pump for chemical industry, namely Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD)or pneumatic diaphragm pump) that uses a combination of the reciprocating action of a rubber,thermoplastic or teflondiaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.

Air Actuated Diaphragm Pump Advantage:

1. No electricity, It's safe and reliable while in the flammable and explore places.

2. Pump has no rotary parts and bearing seals. The diaphragm will completely separate the exhausted medium and pump running parts, working medium. There's no leakage, thus it doesn't cause environmental pollution and human body safety dangerous while exhausting the toxin and flammable or corrosive medium.

Model	Inlet/outlet Dia	Max. Flow		Head	Max. Suction stroke	Max. Particle Dia.	Max. Air Supply Pressure	Max.Air Consumption
Model	inch	m3/h	L/min	m	m	mm	kg/cm2	m3/min
SKQ-06/10	1/4 or 3/8	1.62	27	0-70	6.4	1.6	7	0.14
SKQ-15/20	1/2 or 3/4	3.42	57	0-84	7.6	2.5	8.4	0.56
SKQ-25	1	9.42	157	0-84	8	4	8.4	1.12
SKQ-40	1.5	21.48	358	0-84	8	5	8.4	2.24
SKQ-50	2	35.22	587	0-84	8	6	8.4	2.8
SKQ-80	3	63.6	1060	0-84	8	9.4	8.4	9.8
