description

Jacket Gear Pump Applications：

Petrochemical industry: asphalt, paraffin wax, rosin, Grease，heavy oil, resin and sulfur.

Film industry: Cast hollow fiber membrane liquid, hollow water.

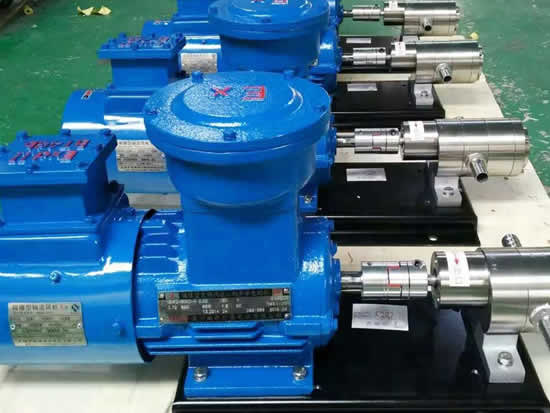

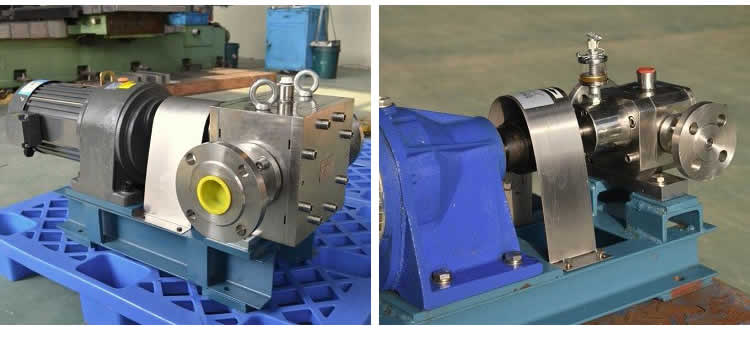

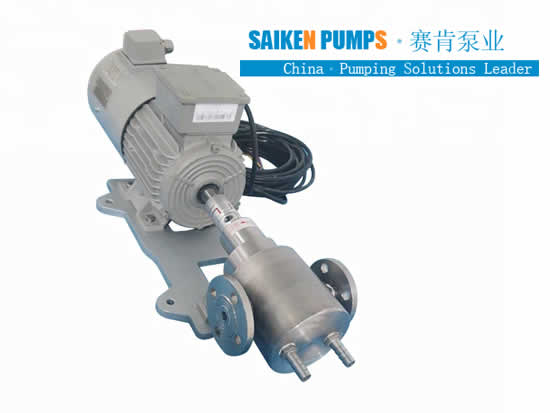

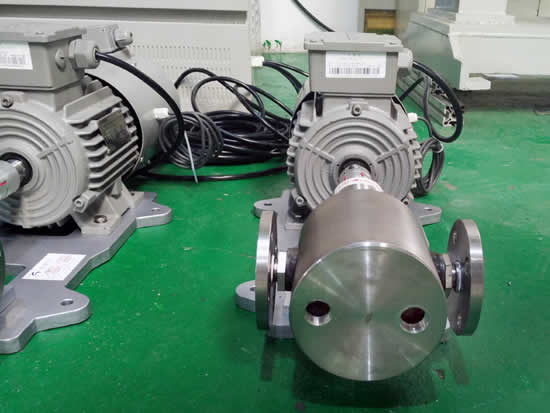

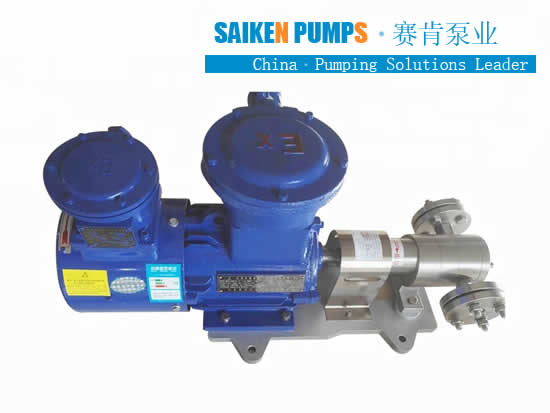

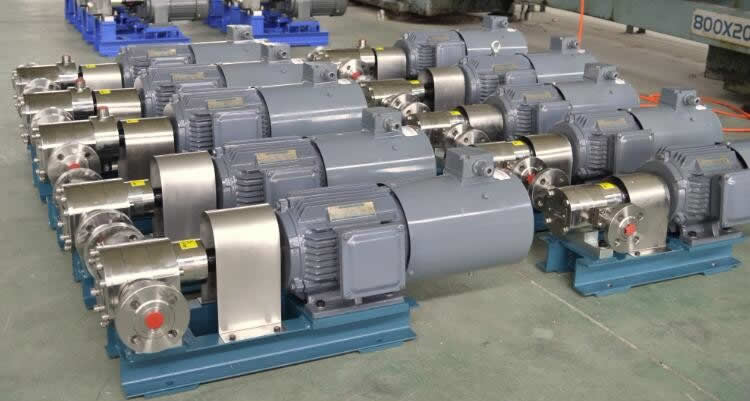

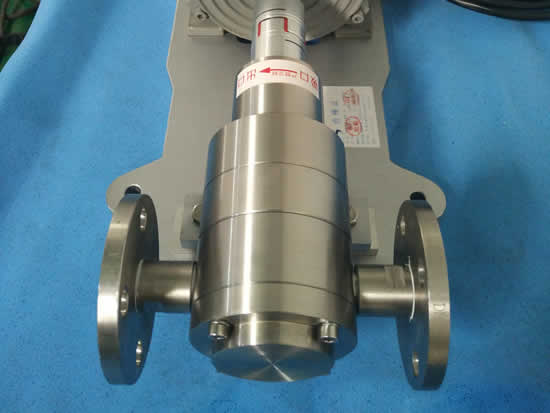

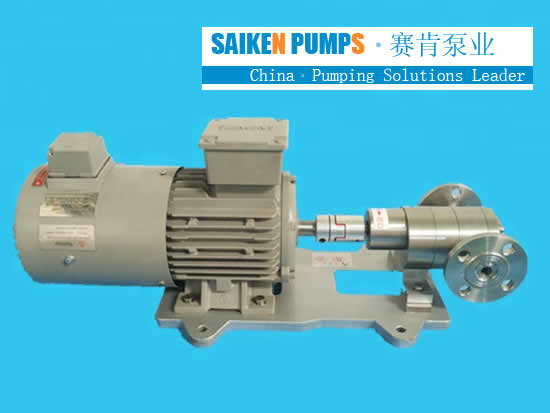

Jacket Gear Pump For high viscosity liquid

J Series Heat preservation Pump is designed for conveying the medium thickened, solidification or crystallization under normal temperature, and maintained a certain temperature and easy flow, such as asphalt, paraffin wax, rosin, heavy oil, resin and similar liquid, the temperature is not higher than 250 ℃.

Equipped with the cycle of interlining in the pump body, the thermal oil, steam, hot water, cold water and other medium could heat, preserve heat and cool for the liquid transported and pump. After downtime, the medium in pump can still get to melt and make high viscous medium full of pump, which really have played an important role in conveying high viscous medium.

Jacket Gear Pump For high viscosity liquid

Jacket Gear Pump For high viscosity liquid

Jacket Gear Pump Advantages:

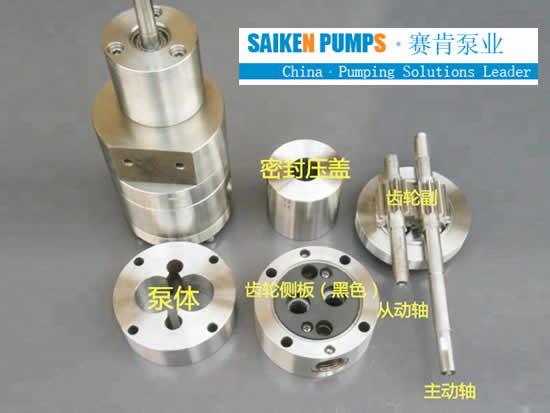

1. Unique design, interlinings are equipped in the main flow areas.Flow accurately.

2.Many seals to match application requirement. According to different requirements and material characteristics, choice of packing seal and mechanical seal, and according to the material properties of the scene with seal cooling jacket or insulating sheath.

3.The drive motors diversity, can use reducer, speed regulating motor or pulley drive way, meet the characteristics of different materials.

4. Coupling configuration diversity, according to the temperature and the user's requirements, use elastic jaw coupling, coupling elastic dowel pin and diaphragm coupling (used for high temperature).

Medium	Fluid
Temperature	-18~250℃ (Explain it before selection if the temperature is over 90℃)
Pressure	1-100bar(depending upon viscosity)
Viscosity	Up to 1000000Cps
Sealing	Single and double mechanical seal, packing seal
Installation	Motor and footing installations

Parameter Table

Type	Single turn displacement（cc/rev）	Rated flow at maximum speed（L/min）	maximum speed（rpm）	Inlet/Outlet dimension
JS158	1.58	1.5	980	G 3/8
JS253	2.53	2.4	980	G 3/8
JS348	3.48	3.4	980	G 3/8
JS475	4.75	4.6	980	G 3/8
JS712	7.12	6.9	980	G 1/2
JS950	9.50	9.3	980	G 1/2
JM142	14.2	10.2	720	G 3/4
JM214	21.4	15.4	720	G 1
JM320	32.0	23.0	720	G 1
JM380	38.0	20.9	550	G 1 1/4
JM600	60.0	33.0	550	G 1 1/2
JM800	80.0	38.4	480	G 1 1/2
JL108	108.0	51.8	480	G 1 1/2
JL160	160.0	64.0	400	flange φ50
JL240	240.0	96.0	400	flange φ50
