Heat Jacket Gear Pump

item no.:
lead time:
Customer Date
product orgin:
Botou Saiken Pumps Co.Ltd
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

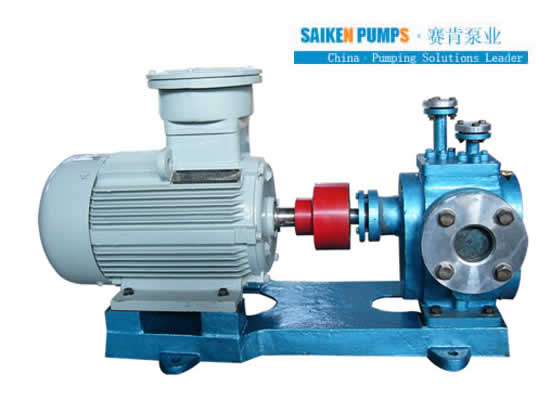

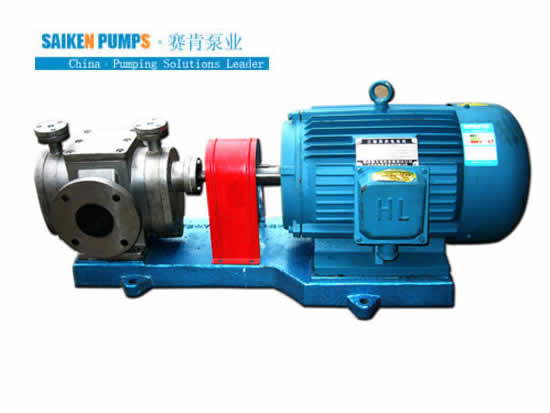

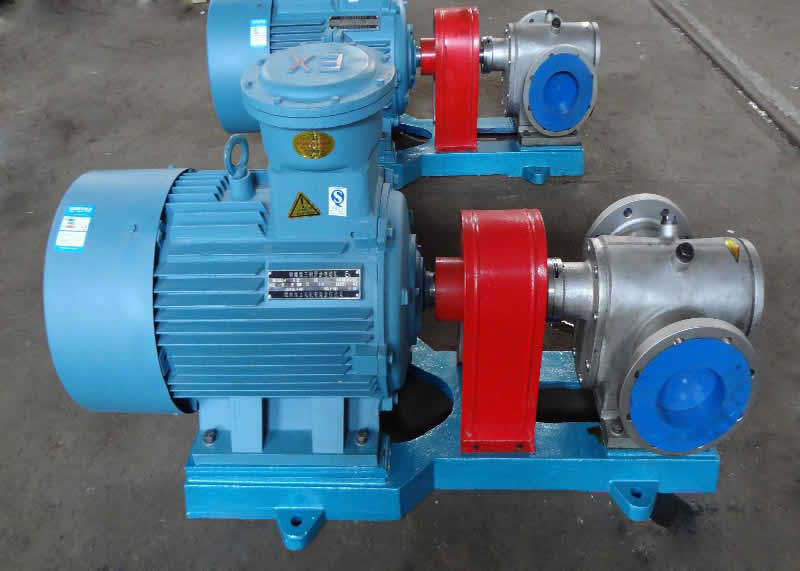

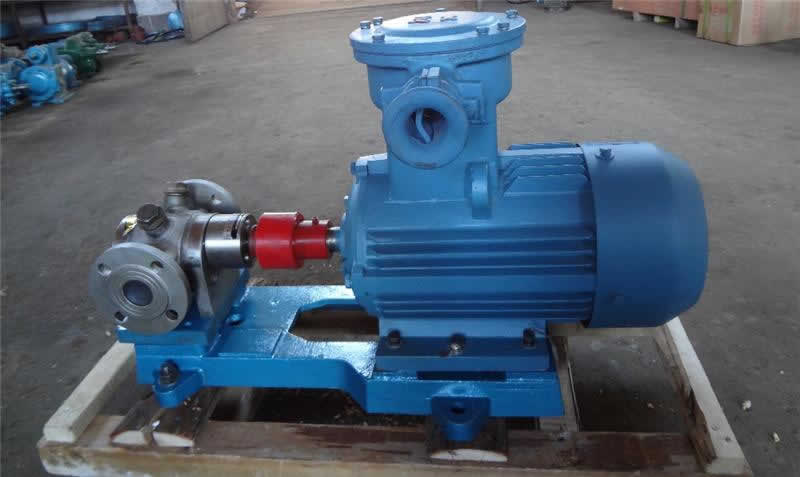

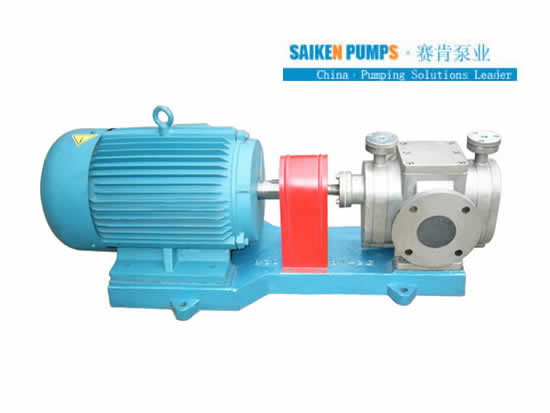

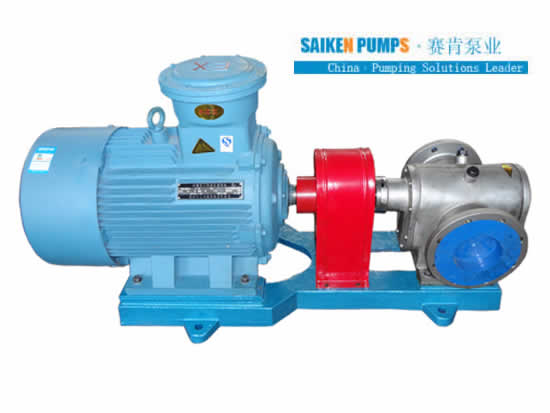

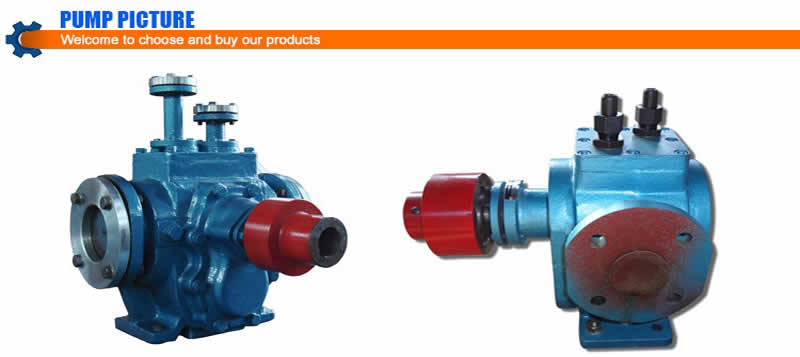

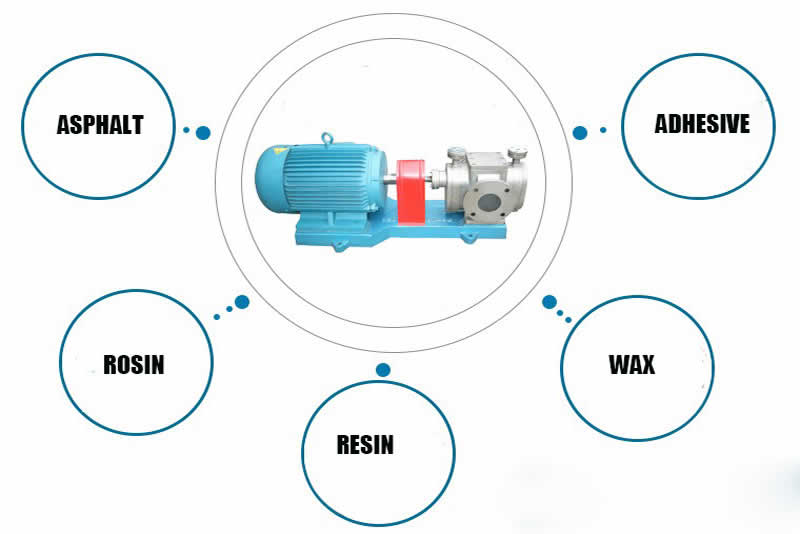

RCB Type Heat Jacket Gear Pump Specifically designed for handling bitumen, heavy petroleum, coal tar, soap solutions and other heavy, viscous liquids.

RCB Type Jacketed Pump are specifically designed for handling asphalt, heavy petroleum, coal tar, soap solutions, and other heavy, viscous liquids which present temperature control problems. To overcome these problems of maintaining a flowing state necessary for efficient handling of these liquids, the RCB Type Jacketed Pump feature complete jacketing of all external parts and extra clearances on all working parts. In addition, the rotor bearing sleeve jacket prevents these heavy viscous liquids from congealing or hardening in the packing or mechanical seal box – affording effective shaft sealing and consequent leak-resistance.

Heat Jacket Bitumen pump, Heat Jacket Gear Pump Manufacturer Exporter & Jacketed, Heat Jacket Pump supplier - china saiken pumps

The pump body of the pump is provided with a hollow interlayer which is provided with an inlet and outlet flange, which can be used for heating, heat preservation and cooling of the liquid and the pump, such as heat conducting oil, steam and hot water. When the transmission medium viscosity is greater than 1500cSt, should be used to reduce the transmission mode. Under normal circumstances, the use of pumps and motor love transmission.

Flow Capacity:1-324m³/h

Temperature:≤250 degrees

Viscosity:5-1500cst

Pressure:≤0.8Mpa

Model	Flow Capacity		Discharge Pressure Mpa	Suction Vacuum m	Port size mm	Motor
	m³/h	L/min				KW	Model
RCB-1	1	16.6	0.36	3	Φ25	1.5	Y90L-4
			0.8
RCB-2	2	33.3	0.36		Φ25	1.5	Y90L-4
			0.8			2.2	Y100L1-4
RCB-3	3	50	0.36		Φ25	1.5	Y100L-6
			0.8			2.2	Y112M-6
RCB-5	5	83.3	0.36		Φ40	2.2	Y100L-4
			0.8			4	Y112M-4
RCB-6	6	100	0.36		Φ40	2.2	Y100L-4
			0.8			4	Y112M-4
RCB-8	8	133	0.36		Φ50	4	Y132M1-6
			0.8			5.5	Y132M2-6
RCB-10	10	167	0.36		Φ50	4	Y112M-4
			0.8			5.5	Y132S-4
RCB-12	12	200	0.36		Φ55	4	Y132M-6
			0.8			5.5	Y132M2-6
RCB-18	18	300	0.36		Φ55	5.5	Y132S-4
			0.8			7.5	Y132M-4
RCB-18	18	Y132M2-300	0.36		Φ70	5.5	Y132M2-6
			0.8			7.5	Y160M-6
RCB-29	29	483.3	0.36		Φ70	7.5	Y132M-4
			0.8			11	Y160M-4
RCB-38	38	633	0.36		Φ100	11	Y160L-6
			0.8			15	Y180L-6
RCB-58	58	960	0.36		Φ100	18.5	Y180M-4
			0.8			22	Y180L-4
RCB-45	45	750	0.36		Φ100	18.5	Y200L-6
			0.8			30	Y225M-6
RCB-65	65	1083	0.36		Φ100	30	Y200L-4
			0.8			37	Y200L-4
RCB-72	72	1200	0.28		Φ150	37	Y280S-8
RCB-96	96	1600	0.28		Φ150	45	Y280S-6
RCB-110	110	1800	0.28		Φ200	55	Y315S-8
RCB-150	150	2500	0.28		Φ200	75	Y315S-6
RCB-228	228	3800	0.28		Φ250	90	Y315L-8
RCB-324	324	5400	0.28		Φ250	110	Y315L-6

Jacketed Bitumen pump Manufacturer Exporter
