Electrical heating bitumen gear pump

item no.:
HL58/0.6
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

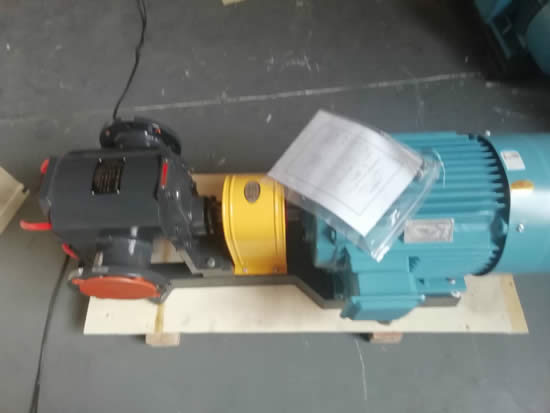

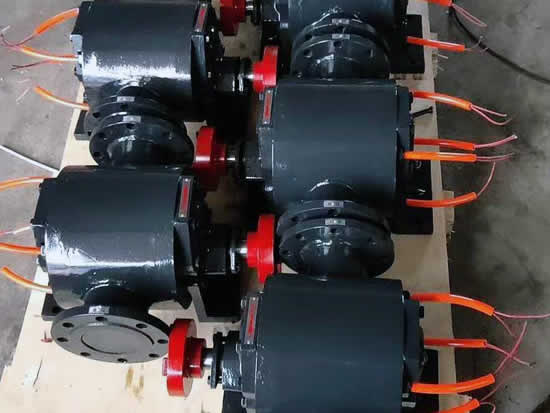

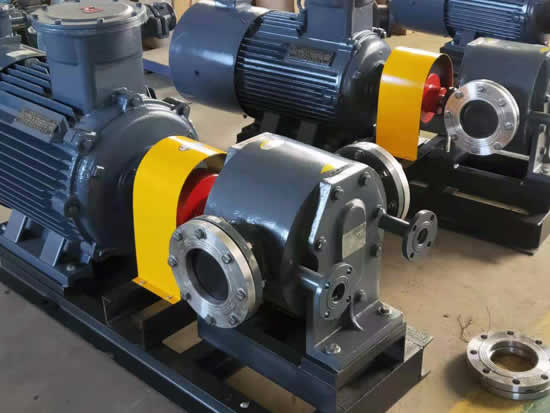

Electrically Heated Pumps for Asphalt / Bitumen

HL Electric heating Bitumen pump is a kind of high temperature resistant gear pump. It is based on the general gear pump. It has a wide pump body, high temperature seal, and can be wound with electric heating belt on the pump body. The asphalt solidified at normal or low temperature inside the pump body is melted under the action of the heating zone. It is widely used in petroleum, chemical, pharmaceutical, food, textile, daily chemical, national defense and other industries to transport viscous liquids such as asphalt, resins, polymers and other materials that require heat preservation.

Application range of electric heating asphalt pump:

The electric heating gear pump is used to convey liquid medium without solid particles that needs to be insulated with a viscosity of 1.0-100000 cst and a temperature of 60-350 ℃. Features of the pump: The electric heating gear pump is resistant to high temperatures and has strong self-priming performance. The cast steel material can be used at temperatures up to 350 ° C.

Data table:

Model	Flow m³/h	Pressure (Mpa)	Suction (m)	SIZE (mm)	motor power （kw）
HL2-0.6	2	0.6	3	DN25	1.5-6
HL3-0.6	3	0.6	3	DN25	2.2-4
HL4-0.6	4	0.6	3	DN40	2.2-6
HL6-0.6	6	0.6	3	DN40	4-4
HL8-0.6	8	0.6	3	DN50	5.5-6
HL12-0.6	12	0.6	3	DN50	7.5-4
HL18-0.6	18	0.6	3	DN80	7.5-6
HL29-0.6	29	0.6	3	DN80	11-4
HL38-0.6	38	0.6	3	DN100	15-6
HL58-0.6	58	0.6	3	DN100	22-4
HL72-0.6	72	0.6	3	DN150	37-8
HL95-0.6	95	0.6	3	DN150	45-6
HL108-0.6	108	0.6	3	DN200	55-8
HL150-0.6	150	0.6	3	DN200	75-6
