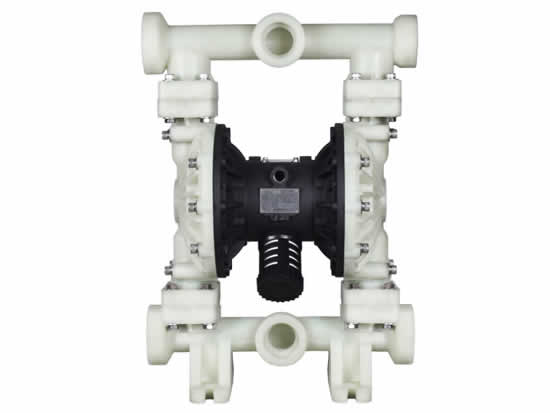

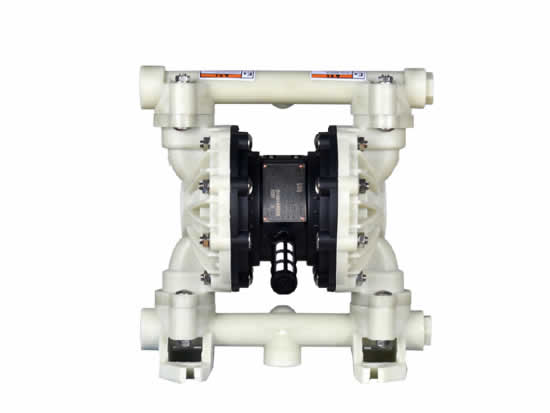

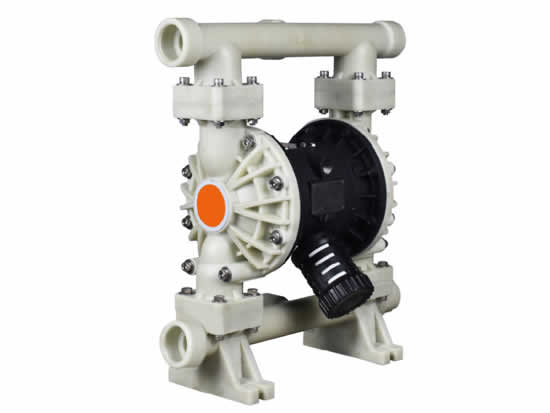

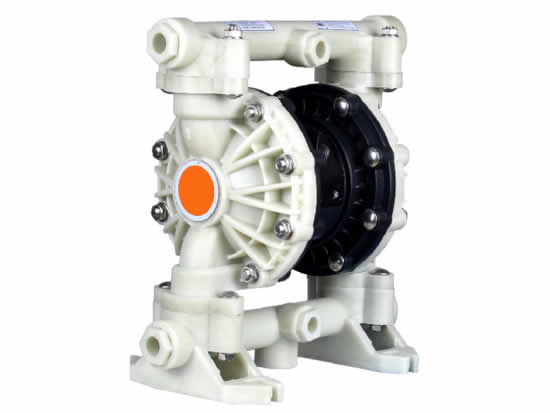

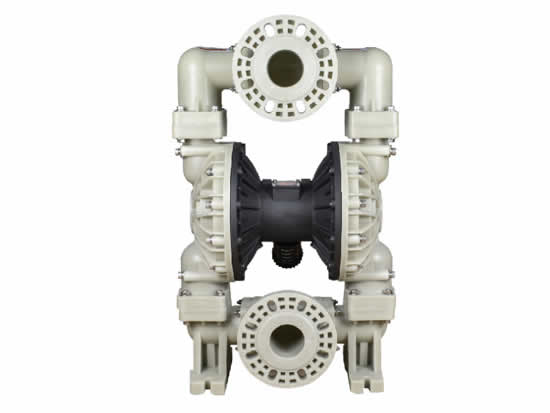

Polypropylene Aodd Pump for Chemical

  • item no.:

  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Air Operated Double Diaphragm Pump (AODD Pump) Manufacturers & Exporters In CHINA. Pump made of Ductile iron(SG iron),Cast steel, aluminum, stainless steel (SS304 SS316 SS316L), polypropylene(PP plastic), PVDF;
Pump inlet / outlet:3/8″ ; 1/2″ ; 3/4″ ; 1″ ; 1.5″ ; 2″ ; 2.5″ ; 3″ ; 4″ ; 5 " (inch)

Aodd Pump Advantages:
- Superior air motor, no leakage and keep strong driving force even use after long time;
- Double thicken fluid cover than ordinary pump
- Perfect sealing design
- PP material, diaphragms and all sealing parts all the best
- Easy maintenance
- Lube free

Air-Operated Double Diaphragm Pump Datasheet:


Model Inlet/Outlet
(INCH)
Max.Capacity
(GPM/LPM)
Max.Head
(M)
Outlet pressure
(BAR)
Air inlet
(INCH)
SKQ-10 3/8″ (10 mm) 5.8/22 70 7 1/4
SKQ-15 1/2″ (15 mm) 5.8/22 70 7 1/4
SKQ-20 3/4″ (20 mm) 15/57 70 7 1/4
SKQ-25 1″ ( 25 mm) 15/57 70 7 1/4
SKQ-25A 1″ (25 mm) 31/116 84 8.4 1/2
SKQ-32 1.2″ (32 mm) 40/151 84 8.4 1/2
SKQ-40 1.5″ (40 mm) 40/151 84 8.4 1/2
SKQ-40A 1.5″ (40 mm) 100/378.5 84 8.4 1/2
SKQ-50 2″ (50 mm) 100/378.5 84 8.4 1/2
SKQ-65 2.5″ (65 mm) 100/378.5 84 8.4 1/2
SKQ-50A 2″ (50 mm) 150/568 84 8.4 1/2
SKQ-80 3″ (80 mm) 150/568 84 8.4 1/2
SKQ-100 4″ (100 mm) 150/568 84 8.4 1/2
SKQ-80A 3″ (80 mm) 275/1041 84 8.4 3/4
SKQ-125 5″ (125 mm) 275/1041 84 8.4 3/4


Air-Operated Double Diaphragm Pumps are designed to handle moderately abrasive fluids and suspended solids for intermittent/on-demand and portable applications. They can easily pump slurry, solvents, and high viscosity liquids such as paints and inks. Pump with full bolt structure and wear – resistant corrosion – resistant materials.

If you need more information about AODD pump, please contact us!
